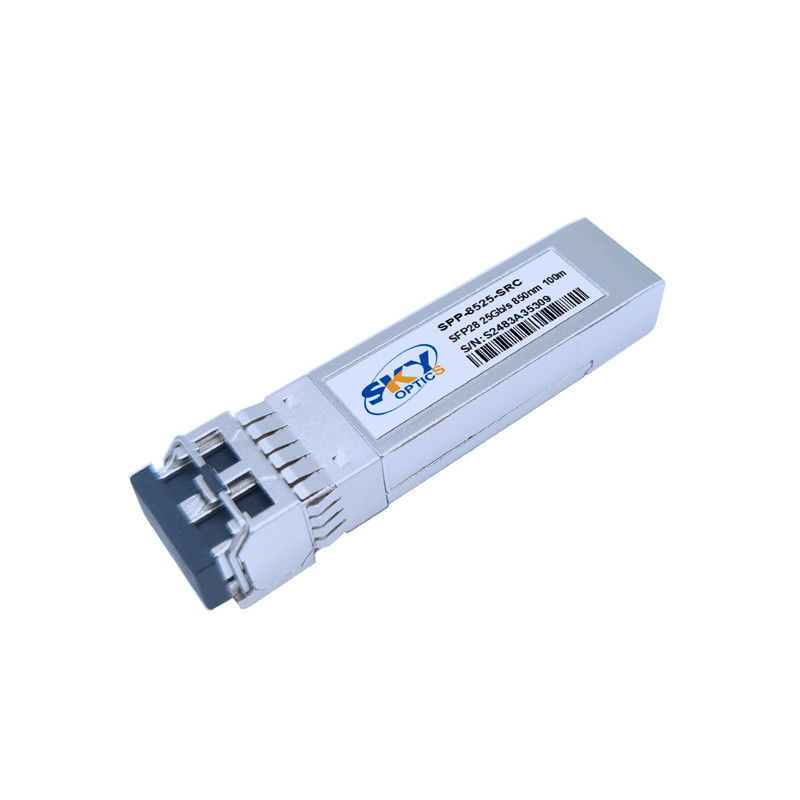

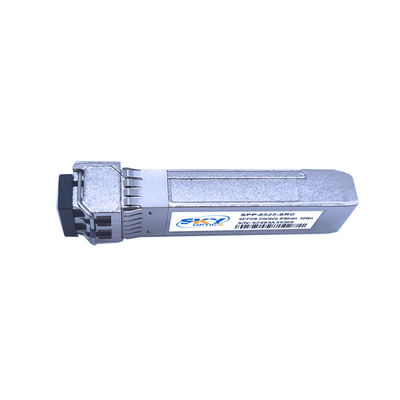

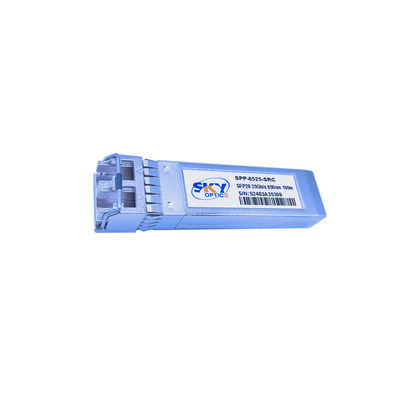

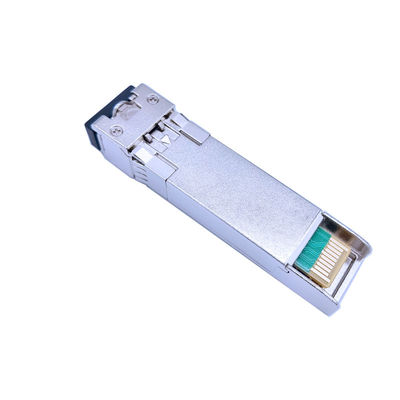

SFP28 Multimode Optical Modules
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
| Model Number: | SPP-8525-SRC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Optical Components: | VCSEL/PIN | Digital Diagnostic Monitoring: | Yes |
|---|---|---|---|
| Bit Error Rate: | <10^-12 | Data Rate: | 25Gbps |
| Fiber Type: | Multimode | Form Factor: | SFP28 |
| Operating Temperature: | 0°C To 70°C | Hot Pluggable: | Yes |
| Highlight: | SFP28 Multimode Optical Module,25Gbps Multimode Optical Module |
||
Product Description
SFP28 Multimode Optical Modules With Digital Diagnostic Monitoring
Product Description:
The 850nm VCSEL technology used in this module offers a wide range of benefits, including high bandwidth capacity, low power consumption, and excellent reliability. The SFP28 100M SR transceiver is designed to offer exceptional performance in a variety of environments, with an operating temperature range of 0°C to 70°C. This makes it ideal for use in data centers, telecommunications networks, and other high-speed data transmission applications.
One of the most significant advantages of this product is its digital diagnostic monitoring capability, which allows for real-time monitoring of critical module parameters such as temperature, voltage, and optical power. This feature provides a high level of visibility and control, ensuring that the module is operating at optimal levels at all times.
In summary, the 25G SFP28 Optical Modules product is a high-performance solution for high-speed data transmission applications. It offers a range of advanced features, including 850nm VCSEL technology, full-duplex transmission mode, compliance with industry standards, and digital diagnostic monitoring. With its exceptional performance and reliability, the 25G SFP SR transceiver is an excellent choice for demanding data transmission applications.
Features:
- Product Name: 25G SFP28 SR Optical Modules
- Hot Pluggable: Yes
- Wavelength: 850nm
- Power Supply: 3.3V
- Operating Temperature: 0°C To 70°C
- Distance: 100m
- 25G SFP28
- 25GBASE-SR SFP28
- CISCO COMPATIBLE
Technical Parameters:
| Product Name | SFP28 100M SR |
| Form Factor | SFP28 |
| Data Rate | 25Gbps |
| Wavelength | 850nm |
| Transmission Mode | Full Duplex |
| Connector | LC |
| Optical Components | VCSEL/PIN |
| Power Consumption | 1.5W |
| Compliance | IEEE 802.3by, SFF-8472, RoHS |
| Operating Temperature | 0°C To 70°C |
| Hot Pluggable | Yes |
| Compatibility | 25GBASE-SR SFP28, SFP-25G-SR |
Applications:
The SPP-8525-SRC transceiver module is manufactured in China and is compliant with IEEE 802.3by and SFF-8472 standards. It is also RoHS compliant, ensuring that it meets environmental regulations. The module operates on a 3.3V power supply and features digital diagnostic monitoring, allowing for real-time monitoring of the module's performance.
The SPP-8525-SRC transceiver module is capable of data rates up to 25Gbps, making it an ideal solution for high-speed data transfer applications. The module utilizes VCSEL/PIN optical components to ensure reliable and accurate data transfer, even over long distances.
This 25G SFP28 transceiver module is ideal for a variety of applications, including data center interconnects, high-speed server connections, and storage area network (SAN) applications. It can also be used in other high-speed communication applications where reliable and accurate data transfer is critical.
Overall, the Sky Optics SPP-8525-SRC 25G SFP28 transceiver module is a reliable and high-performance solution for high-speed data transfer applications. Its compatibility with Cisco equipment and compliance with industry standards make it an ideal choice for network administrators and IT professionals who require reliable and high-speed network connectivity.
