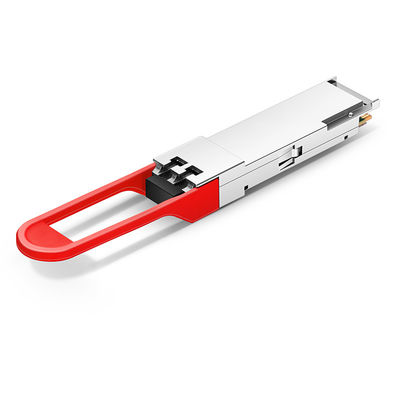

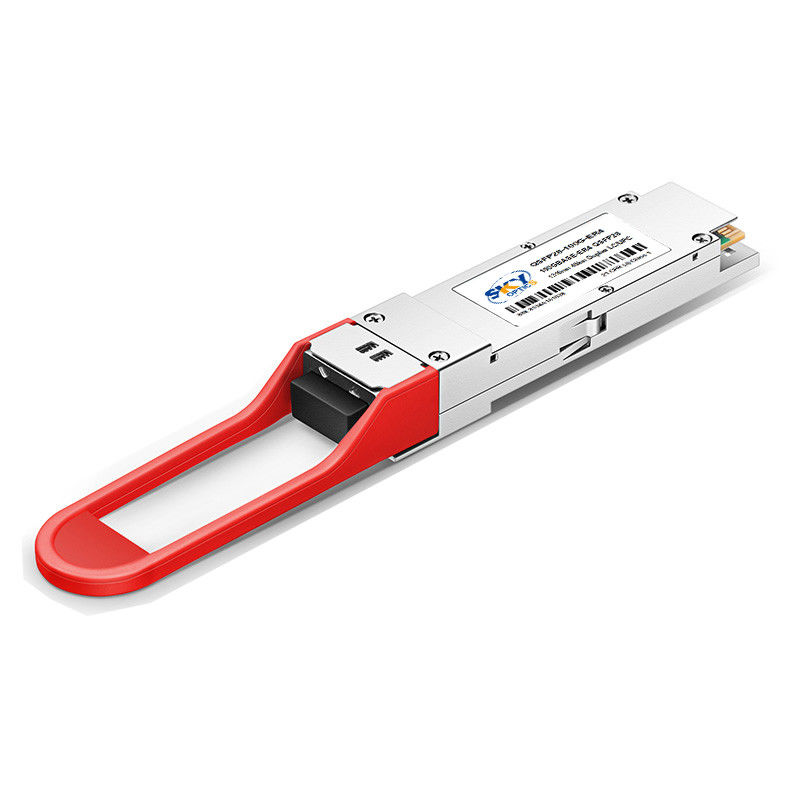

QSFP28 100G ER4 Optical Module
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Receive Power (OMA) Per Lane: | -3.5dBm (Max ) | CDR: | With Built-in CDR |
|---|---|---|---|
| Wavelength: | 1310nm | Compliant: | QSFP28 MSA And IEEE 802.3ba |
| Power Supply: | 3.3V | LOS De-Assert: | -23dBm (max) |
| Transmission Distance: | 40km On Single Mode Fiber (SMF) | Data Rate: | 103.1Gb/s |
| Highlight: | QSFP28 100G ER4 Optical Module,qsfp28 100g optical transceiver,100G ER4 Optical Module |
||
Product Description
QSFP28 100G ER4 Optical Module with Built-in CDR and High Receive Sensitivity in OMA each Lane -18.5dBm Max
Product Description:
The module features a LOS Assert of -35dBm (min), providing reliable detection of link loss and enabling rapid recovery in the event of a network outage. It is powered by a 3.3V power supply, making it easy to integrate into existing network infrastructure.
The QSFP28 ER4 100G Optical Module is equipped with a built-in CDR (Clock and Data Recovery) function, which helps to ensure accurate data transmission and reception at high speeds. This feature makes it an ideal choice for use in demanding network environments where reliability and performance are critical.
With an optical extinction ratio of 4dB, the module provides exceptional optical performance, delivering clear and reliable transmission of data over long distances. This makes it an ideal choice for use in high-speed data center and computing networks where reliable communication is essential.
Overall, the QSFP28 ER4 100G Optical Module is a high-performance, reliable, and versatile 100G Fiber Optic Transceiver that can be used in a wide range of networking applications. Whether you are building a new network from scratch or upgrading an existing one, this optical transmitter is an excellent choice for delivering fast, reliable, and secure data transmission.
Features:
- Product Name: QSFP28 ER4 100G Optical Module
- Transmit Average Power per Lane: -2.5dBm~6.5dBm
- Compliant: QSFP28 MSA And IEEE 802.3ba
- Wavelength: 1310nm
- Operating Temperature: 0°C To 70°C
- Data Rate: 103.1Gb/s
This 100 Gigabit QSFP28 ER4 Optical Transceiver is a compliant QSFP28 MSA and IEEE 802.3ba 100G Fiber Module with a wavelength of 1310nm and operating temperature range of 0°C to 70°C. Transmit average power per lane is -2.5dBm~6.5dBm, and it has a data rate of 103.1Gb/s.
Technical Parameters:
| Interface: | Duplex LC Connector |
| Applications: | 100GBASE-ER4 100G Ethernet, 100GE 4WDM-40 Applications |
| Receive Power (OMA) per Lane: | -3.5dBm (Max ) |
| Hot Pluggable: | Yes |
| Form Factor: | QSFP28 |
| Data Rate: | 103.1Gb/s |
| Transmitter: | 4x25.78Gb/s DFB-based LAN-WDM Transmitter |
| Power dissipation: | Less Than 5W |
| Receive Sensitivity in OMA, each Lane: | -18.5dBm (Max ) |
| Compatibility: | Multi-vendor |
Applications:
100GBASE-ER4 100G Ethernet
100GE 4WDM-40 Applications
