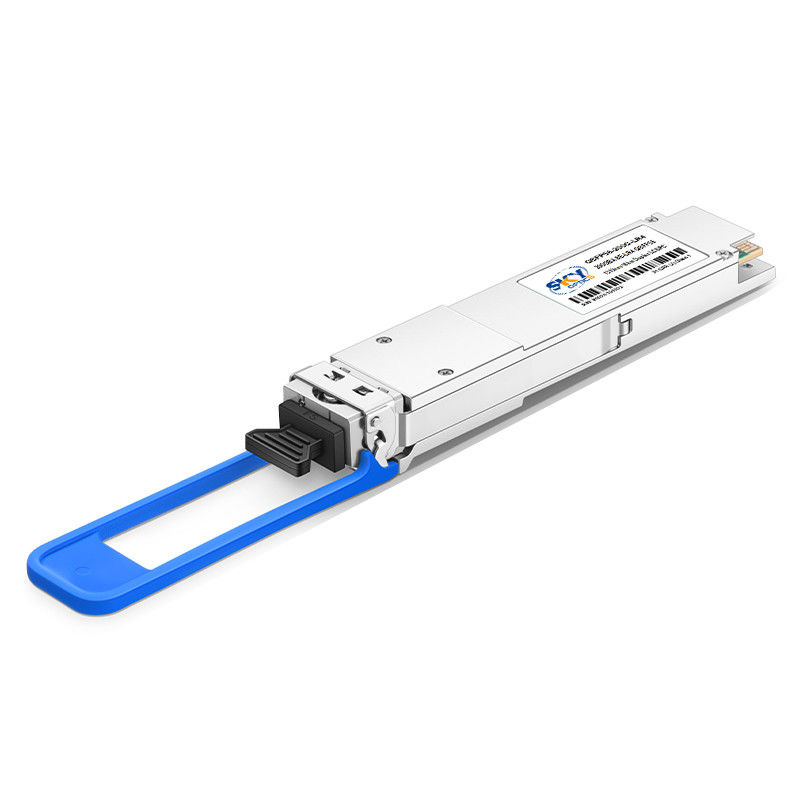

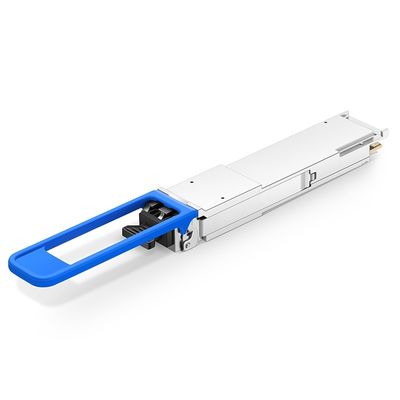

200G QSFP56 LR4 Optical Transceiver
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Average Launch Power: | -3.4~5.3dBm | DDM: | Yes |
|---|---|---|---|
| Wavelength: | 4 Wavelengths On The LAN-WDM Group Near 1300nm | Electrical Interface: | 4x26.5625GBd (PAM4) |
| Connector Type: | LC | Receiver Sensitivity (OMAouter), Each Lane: | -7.2dBm |
| Max Data Rate: | 212.5Gbps | Receiver: | PIN And TIA Array On The Receiver |
| Highlight: | 212.5gbps 200g qsfp56 lr4,200G QSFP56 Optical Transceiver,200G LR4 Optical Transceiver |
||
Product Description
4x26.5625GBd PAM4 200G QSFP56 LR4 10KM Optical Transceiver Electrical Interface Temperature Operating Range 0-70C Speed
Product Description:
The 200G QSFP56 LR4 Optical Transceiver is built with digital diagnostics monitoring (DDM) capabilities. This feature enables users to monitor various parameters such as temperature, input voltage, and output power, among others, in real-time. This makes it easy to troubleshoot and maintain the system, reducing downtime and costs.
The 200G QSFP56 LR4 Optical Transceiver is a 200Gbs QSFP LR4 module that delivers high-speed data transfer rates of up to 212.5Gbps. This makes it ideal for high-bandwidth applications that require fast and reliable data transfer.
This 200G QSFP56 LR4 QSFP module is designed to be energy-efficient, with a maximum power consumption of 6W. This helps to reduce the overall power costs of the system, making it cost-effective for businesses and organizations.
The 200G QSFP56 LR4 Optical Transceiver has a wide operating temperature range of 0-70℃, making it suitable for use in a range of environments. Whether you need to operate in a hot or cold environment, this transceiver will deliver exceptional performance.
In summary, the 200G QSFP56 LR4 Optical Transceiver is a high-performance and reliable communication device that delivers exceptional performance in a range of applications. With its 200Gbs QSFP56 optical module, digital diagnostics monitoring (DDM), and energy-efficient design, this transceiver is the perfect choice for businesses and organizations that require fast and reliable data transfer.
Features:
- Product Name: 200G QSFP56 LR4 Optical Transceiver
- Transmission Distance: 10km Applications With Or Without FEC
- Average launch power: -3.4~5.3dBm
- Receiver sensitivity (OMAouter), each lane: -7.2dBm
- Digital Diagnostics Monitoring (Ddm): Yes
- Receiver: PIN And TIA Array On The Receiver
- Product Attributes: 200GBASE-LR4 module, 200G QSFP56 LR4 module, 200G transceiver
Technical Parameters:
| Product Name | 200GBASE-LR4 Optical Transceiver |
| Form Factor | QSFP Form Factor |
| Max Power Consumption | 6W |
| Connector Type | LC |
| Wavelength | 4 Wavelengths On The LAN-WDM Group Near 1300nm |
| Receiver Sensitivity (OMAouter), each lane | -7.2dBm |
| Receiver | PIN And TIA Array On The Receiver |
| Transmitter | Cooled DML LAN-WDM |
| Temperature | 0-70℃ |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Receiver Sensitivity | ＜-10.3dBm |
Applications:
- Data Centers: The 200G QSFP LR4 is ideal for use in data centers where high-speed communication is essential. It can be used for applications with or without FEC, making it a versatile solution for data center operators.
- Telecommunications: With a transmission distance of 10km, the 200G QSFP56 LR4 Optical Transceiver is suitable for use in telecommunications networks. Its high data rate ensures that data is transmitted quickly and efficiently across long distances.
- Cloud Computing: Cloud computing requires high-speed communication between servers and data centers. The 200G QSFP56 LR4 Optical Module is designed to meet these demands, ensuring that data is transmitted quickly and efficiently.
In addition to its high-speed capabilities, the 200G QSFP56 LR4 Optical Transceiver also features digital diagnostics monitoring (DDM), which provides real-time monitoring of the module's performance. This makes it easy to identify and troubleshoot any issues that may arise.
The 200Gbs QSFP LR4 is also designed to be easy to install and use. Its average launch power of -3.4~5.3dBm ensures that it is compatible with a wide range of network equipment, while its compact size makes it easy to install in tight spaces.
In conclusion, the 200G QSFP56 LR4 Optical Transceiver is a versatile and reliable solution for high-speed data transmission. Whether you are building a data center, telecommunications network, or cloud computing infrastructure, the 200G QSFP56 LR4 Optical Module is designed to meet your needs.
