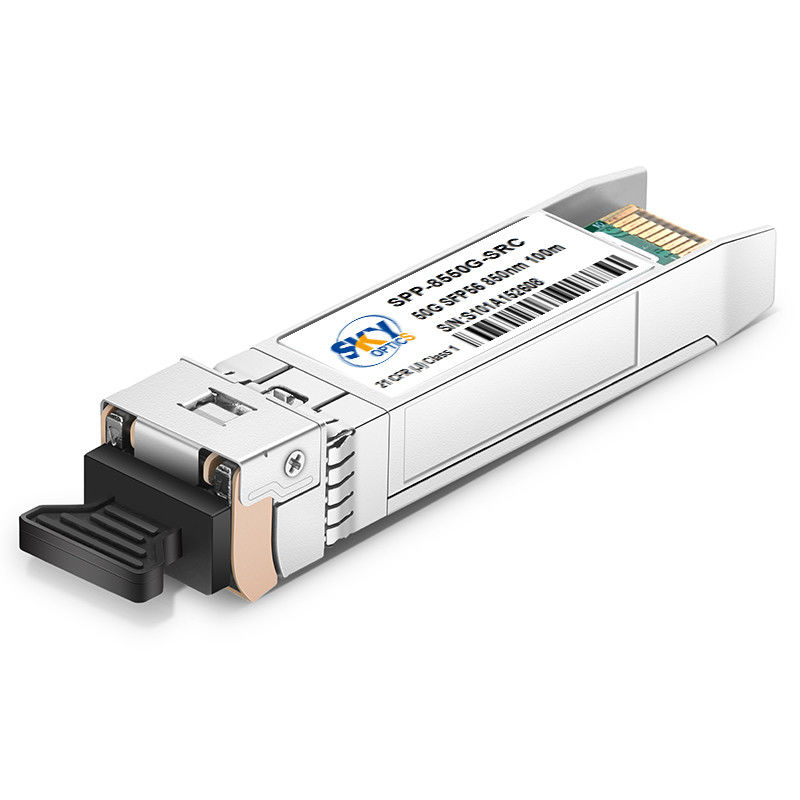

50G SFP56 SR 100m MMF Fiber Optical Module IEEE 802.3cd Compliance 850nm Wavelength
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Power Budget: | 1.9dB | Form Factor: | SFP56 |
|---|---|---|---|
| TX Power -6.5~4dBm Receiver Sensitivity: | <-8.4dBm | Max Cable Distance: | 100m@OM4 |
| Wavelength: | 850nm | Tx Power: | -6.5~4dBm |
| Transmitter: | VCSEL | Connector: | Duplex LC |
| Highlight: | 50g sfp56 sr 100m,mmf fiber optical module,sfp56 fiber optical module |
||
Product Description
50G SFP56 SR 100m MMF Fiber Module with 53.125Gbps Max Data Rate and IEEE 802.3cd Compliance
Product Description:
The 50G SFP56 SR Transceiver is a cutting-edge optical module that offers high-performance connectivity solutions for various networking applications. With its advanced features and specifications, this 50G SFP56 Module is designed to meet the demands of modern data centers and enterprise networks.
One of the key attributes of the 50G SFP56 SR Transceiver is its Extinction Ratio of greater than 3dB, which ensures reliable and robust signal transmission over long distances. This feature makes it ideal for high-speed data transfer and low-latency networking environments.
The Transceiver operates at a Wavelength of 850nm, providing excellent optical performance and compatibility with a wide range of networking equipment. Whether used for data center interconnects, enterprise networking, or telecommunications applications, the 50G Optical Transceiver delivers consistent and high-quality connectivity.
Designed to withstand varying environmental conditions, the 50G SFP56 SR Transceiver offers a Commercial Temperature Range of 0 to 70°C (32 to 158°F). This wide temperature tolerance ensures optimal performance and reliability even in challenging operating environments, making it suitable for deployment in diverse networking scenarios.
Equipped with a TX & RX Built-in CDR (Clock and Data Recovery) function, the 50G SFP56 SR Transceiver offers enhanced signal integrity and synchronization capabilities. This feature allows for seamless data transmission and reception, ensuring stable and efficient communication across the network.
Another notable feature of the 50G SFP56 SR Transceiver is its low Power Consumption of less than or equal to 1.5W. This energy-efficient design not only reduces operational costs but also minimizes carbon footprint, making it an environmentally friendly choice for network infrastructure.
In summary, the 50G SFP56 SR Transceiver is a versatile and high-performance optical module that meets the demanding requirements of modern networking applications. With its exceptional Extinction Ratio, Wavelength compatibility, wide Temperature Range tolerance, Built-in CDR functionality, and low Power Consumption, this 50G SFP56 Module is an ideal choice for data centers, enterprises, and telecommunications providers looking to enhance their network connectivity.
Features:
- Product Name: 50G SFP56 SR Transceiver
- Transmitter: VCSEL
- Connector: Duplex LC
- Receiver Overload: 4dBm
- Connector Type: MPO/MTP
- Power Budget: 1.9dB
Technical Parameters:
| Attribute | Value |
|---|---|
| Compliance | IEEE 802.3cd |
| Modulation Format | PAM4 |
| Receiver Type | PIN |
| Commercial Temperature Range | 0 To 70°C (32 To 158°F) |
| Max Cable Distance | 100m@OM4 |
| Connector Type | MPO/MTP |
| TX Power | -6.5~4dBm |
| Receiver Sensitivity | <-8.4dBm |
| Extinction Ratio | ＞3dB |
| DDM/DOM | Supported |
| Power Budget | 1.9dB |
Applications:
The 50G SFP56 SR Transceiver is a high-performance optical transceiver designed for a wide range of networking applications. With its compliance with IEEE 802.3cd standards, this transceiver ensures reliable and efficient data transmission in various networking environments.
One of the key features of the 50G SFP56 SR Transceiver is its wide operating temperature range of 0°C to 70°C, making it suitable for deployment in both standard and challenging environmental conditions. The commercial temperature range of 0 to 70°C (32 to 158°F) further enhances its versatility, allowing for seamless integration into different network setups.
Equipped with DDM/DOM support, the 50G SFP56 SR Transceiver provides real-time monitoring and diagnostics capabilities, enabling network administrators to effectively manage and optimize network performance. The Tx power range of -6.5 to 4dBm ensures consistent and reliable signal transmission across various distances.
The 50G SFP56 SR Transceiver is ideal for a wide range of product application occasions and scenarios, including but not limited to:
- High-speed data center networking
- Enterprise networking solutions
- Telecommunication networks
- Cloud computing environments
- Industrial networking applications
Whether you are looking to upgrade your existing network infrastructure or deploy a new network setup, the 50G SFP56 SR Transceiver offers the performance, reliability, and compatibility needed to meet the demands of modern networking requirements. Its compact form factor and plug-and-play design make it easy to install and integrate into your network architecture.
Experience seamless connectivity and high-speed data transmission with the SFP56 SR 50G Optical Transceiver, designed to deliver exceptional performance in diverse networking environments.
