300m Reach 25G SFP28 Transceiver BiDi Single Mode Fiber Optic Transceiver 1330nm
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
| Model Number: | SPP-B3225-S3Dx |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Fiber Type: | SMF | Optical Components: | DFB Laser And PIN Photodiode |
|---|---|---|---|
| Transmission Distance: | 300m | Data Rate: | 25Gbps |
| Form Factor: | SFP28 | Average Output Power: | -4~4dBm |
| Operating Temperature: | 0°C To 70°C , -40 To +85°C | Transmitter Centre Wavelength: | 1330nm |
| Highlight: | 25g sfp28 transceiver bidi,300m 25g sfp28 transceiver,300m sfp28 transceiver module |
||
Product Description

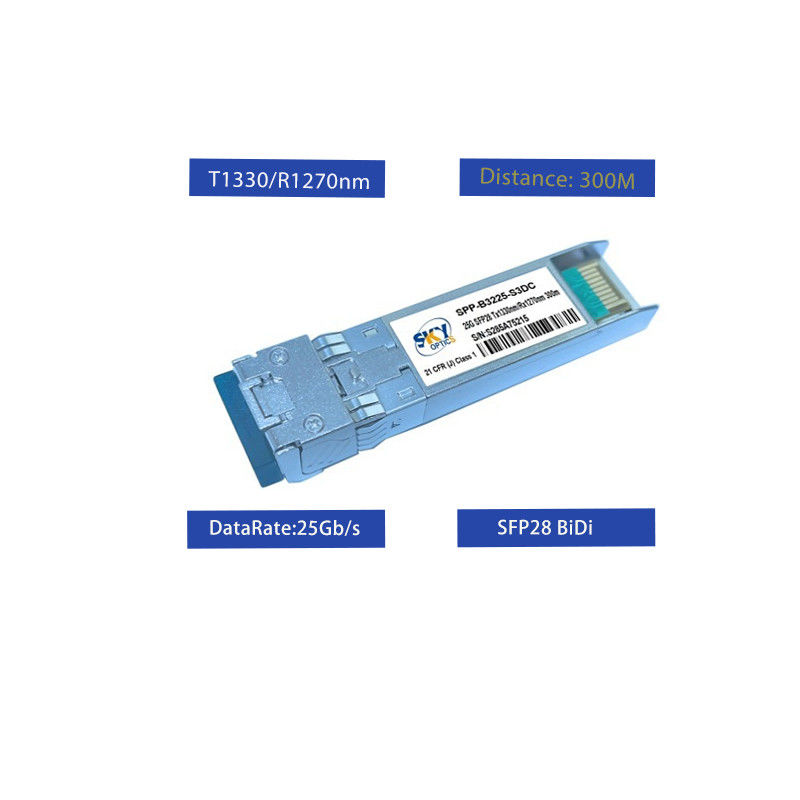

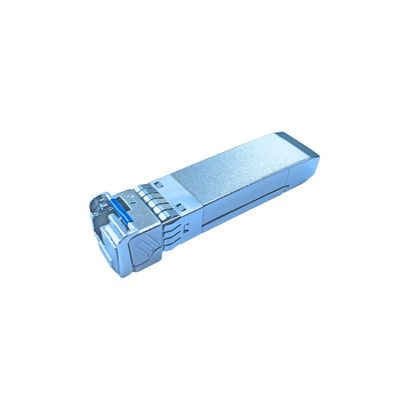

300m Reach 25G SFP28 BiDi Single Mode Fiber Optic Transceiver 1330nm Transmitter
Product Description:
The SFP28 BIDI 300M Transceiver utilizes a Tx1330nm Rx1270nm wavelength and is capable of supporting single-mode fiber optic cabling. This provides greater flexibility in network design and allows for easier integration with existing fiber optic infrastructure. The 25G modules are also designed to operate within a wide range of operating temperatures, from 0°C to 70°C and -40°C to +85°C, making them suitable for deployment in a variety of environmental conditions.
The SFP28 BIDI 300M Transceiver is a reliable and cost-effective solution for high-speed data transmission applications. It is a plug-and-play device that can be easily installed without the need for any additional software or configuration. The module is also compatible with a wide range of networking equipment, including switches, routers, and servers, making it an ideal solution for upgrading existing networks to support higher data rates.
Features:
- Product Name: 25G SFP28 BIDI Optical Modules
- Transmitter Centre Wavelength: 1330nm
- Average Output Power: -4~4dBm
- Optical Components: DFB Laser And PIN Photodiode
- Form Factor: SFP28
- Operating Temperature: 0°C To 70°C, -40 To +85°C
SFP28 BIDI, Tx1330nm Rx1270nm 25G modules, SFP28 BIDI
Technical Parameters:
| Average Output Power | -4~4dBm |
| Optical Components | DFB Laser And PIN Photodiode |
| Form Factor | SFP28 |
| Data Rate | 25Gbps |
| Operating Temperature | 0°C To 70°C , -40 To +85°C |
| Fiber Type | SMF |
| Transmitter Centre Wavelength | 1330nm |
| Receiver Sensitivity | -13.3dBm |
| Transmission Distance | 300m |
Applications:
The SPP-B3225-S3Dx is a 25G SFP28 BIDI Fiber Transceiver that supports Single-Mode Fiber (SMF) type. It is capable of transmitting data at a rate of 25Gbps over a distance of up to 10km. The receiver sensitivity of this module is -13.3dBm, which ensures that it can accurately receive data even in low-light conditions.
This 25G SFP28 BiDi Fiber Transceiver is an ideal choice for a wide range of applications. It can be used in data centers, enterprise networks, telecom networks, and other high-speed data transmission applications. It is especially useful in applications where space is limited, as it is small and compact, making it easy to install in tight spaces.
The SFP28 BIDI module is also a great choice for applications that require high-bandwidth connectivity. It is capable of transmitting data at high speeds, which makes it ideal for applications where large amounts of data need to be transmitted quickly and efficiently. This module can be used for a wide range of applications, including video streaming, cloud computing, data backup, and more.
In conclusion, the Sky Optics SPP-B3225-S3Dx 25G SFP28 BIDI Fiber Optic Transceiver Module is a high-quality product that is designed to provide reliable and high-performance fiber optic connectivity. It is ideal for a wide range of applications, including data centers, enterprise networks, telecom networks, and other high-speed data transmission applications. Whether you are looking for a reliable and efficient way to transmit data, or you need a compact and easy-to-install module for your space-constrained application, the SFP28 BIDI module is an excellent choice.
