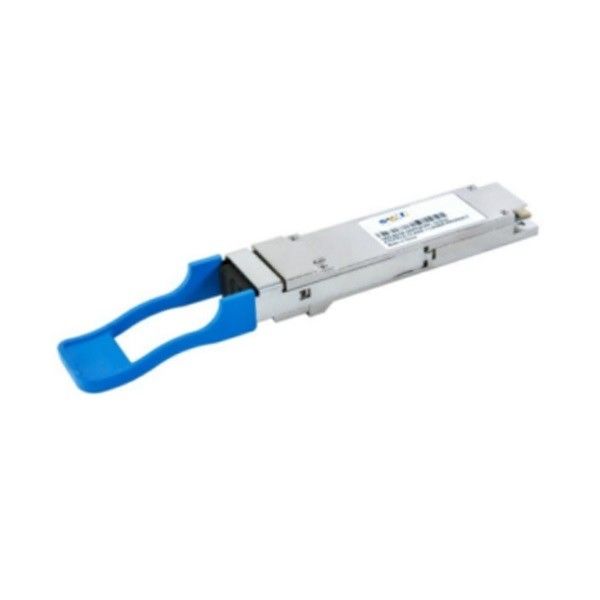

QSFP56 200GBASE-FR4 1271nm 1291nm 1311nm 1331nm 2km Opitcal Transceiver
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
| Model Number: | SQ56-200G-FR4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Highlight: | qsfp56 200gbase-fr4,200gbase-fr4 1271nm,qsfp56 200g optical transceiver |
||
|---|---|---|---|
Product Description
200GBASE-FR4 QSFP56 Optical Transceiver Module (SMF, 1271nm, 1291nm, 1311nm and 1331nm, 2km, LC, DOM)
The QSFP56 200G FR4 Transceiver Module is designed for 200GBASE Ethernet throughput up to 2km over single-mode fiber (SMF) using a wavelength of 1295nm to 1309nm with duplex LC connectors.
This transceiver is compliant with IEEE 802.3cd, IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8024, and SFF-8679 standards. It is suitable for 200G Ethernet, Data Center, and Cloud Networks.
Specifications
| Part Number | SQ56-200G-FR4 | Vendor Name | SkyOptics / Customized |
| Form Factor | QSFP56 | Data Rate | 200Gbps |
| Wavelength | 1271nm, 1291nm, 1311nm, 1331nm | Max Cable Distance | 2Km |
| Connector | Duplex LC | Cable Type | SMF |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -4.2 ~ 4.7dBm | Minimum Receiver Power | -8.2dBm |
| Receiver Sensitivity | -6.0dBm | Extinction Ratio | ＞3.5dB |
| Power Consumption | ≤6.5W | Modulation Format | PAM4 ( 4x50G) |
| Optical Return Loss Tolerance |
16.5 | Transmitter Reflectance | -26 |
| Case Temperature | 0 to 70°C (32 to 158°F) | Protocols | IEEE802.3bs |
Applications
FAQ:
Q: Does this 200G QSFP56 FR4 support DDM?
A: Yes, the built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters.
Q: Is QSFP56 compatible with QSFP-DD?
A: Though QSFP56-DD has the double density, its size is similar to QSFP56. 400G QSFP56-DD port is backward compatible with the QSFP transceiver which means as long as the switch supports, QSFP56 can work on the QSFP56-DD port. When using a QSFP56 module in an QSFP56-DD port, this port will be configured for a data rate of 200G, instead of 400G.
Q: What is the difference between QSFP56 and QSFP28?
A: The most significant change from QSFP+and QSFP28 to QSFP56 is that QSFP56 changes from NRZ encoding to PAM4 encoding.
Compared to QSFP+and QSFP28, QSFP56 has a higher network speed due to its 200G QSFP supporting 4 × 50G channels. QSFP28 supports 4 × 25G channels and, like QSFP+, includes a 4-channel optical transmitter and a 4-channel optical receiver. Although QSFP56 still uses 4 channels as QSFP28, the modulation is doubled to 50G per channel, which allows for more data on existing fibers and is therefore more suitable for ultra large scale data center networks.
