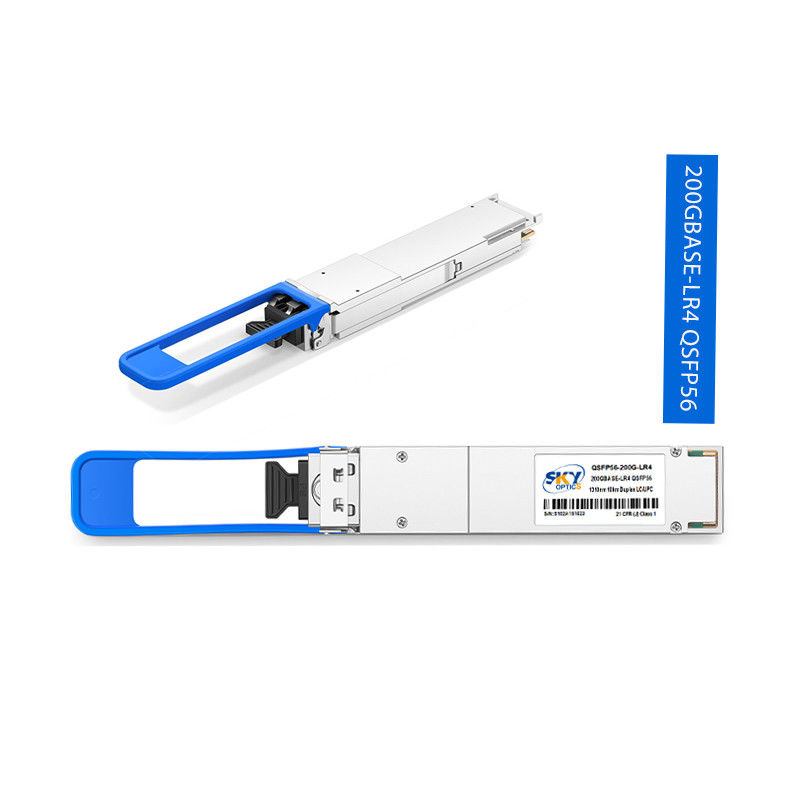

SMF Fiber Type 200G QSFP56 LR4 Optical Transceivers DDM PIN And TIA Array On The Receiver
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Temperature: | 0-70℃ | Transmitter: | Cooled DML LAN-WDM |
|---|---|---|---|
| Receiver Sensitivity: | ＜-10.3dBm | Fiber Type: | SMF |
| Average Launch Power: | -3.4~5.3dBm | Receiver Sensitivity (OMAouter), Each Lane: | -7.2dBm |
| Transmission Distance: | 10km Applications With Or Without FEC | Wavelength: | 4 Wavelengths On The LAN-WDM Group Near 1300nm |
| Highlight: | smf optical transceivers,smf 200g qsfp56 lr4,200g optical transceivers |
||
Product Description
SMF Fiber Type 200G QSFP56 LR4 Optical Transceiver with DDM PIN And TIA Array On The Receiver
Product Description:
The 200G 200G QSFP56 LR4 Optical Transceiver provides a maximum power consumption of 6W, making it an energy-efficient option for data center operators looking to reduce their power consumption. The transceiver is capable of transmitting data up to a distance of 10km, making it ideal for medium to long-range data transmission applications with or without Forward Error Correction (FEC).
The average launch power of the transceiver ranges from -3.4~5.3dBm, providing a stable and efficient data transmission over the maximum distance. The transceiver also features Digital Diagnostics Monitoring (DDM) functionality, enabling real-time monitoring of key parameters such as temperature, voltage, and optical power levels.
The 200G QSFP56 LR4 Optical Transceiver supports a maximum data rate of 212.5Gbps, making it an ideal solution for high-speed data transmission applications. The transceiver is compatible with a range of networking equipment and can be used with various optical fiber types, including single-mode fiber.
The 200G QSFP56 LR4 Optical Transceiver is a reliable and cost-effective solution for data center operators looking to upgrade their network infrastructure and improve their data transmission capabilities. With its high performance, low power consumption, and advanced monitoring features, the 200Gbs QSFP LR4 transceivers are an ideal choice for medium to long-range data transmission applications.
Features:
- Product Name: 200G QSFP56 LR4 Optical Transceiver
- Max Power Consumption: 6W
- Electrical interface: 4x26.5625GBd (PAM4)
- Fiber Type: SMF
- Transmission Distance: 10km Applications With Or Without FEC
- Digital Diagnostics Monitoring (Ddm): Yes
- 200GBASE-LR4 transceiver
- 200GBASE-LR4 Ethernet
Technical Parameters:
| Product Attribute | Technical Parameter |
|---|---|
| Product Name | 200G QSFP LR4 |
| Standard | 200GBASE-LR4 Ethernet |
| Receiver Sensitivity | ＜-10.3dBm |
| Max Power Consumption | 6W |
| Receiver | PIN And TIA Array On The Receiver |
| Transmission Distance | 10km Applications With Or Without FEC |
| Fiber Type | SMF |
| Form Factor | QSFP Form Factor |
| Receiver Sensitivity (OMAouter), each lane | -7.2dBm |
| Average Launch Power | -3.4~5.3dBm |
| Wavelength | 4 Wavelengths On The LAN-WDM Group Near 1300nm |
| Digital Diagnostics Monitoring (DDM) | Yes |
Applications:
One of the key features of our 200G QSFP56 LR4 Transceiver is its wide operating temperature range of 0-70℃. This makes it suitable for use in a variety of different environments, including data centers, telecommunications networks, and industrial applications.
Another important feature of this transceiver is its Digital Diagnostics Monitoring (DDM) capability. This allows network administrators to monitor the performance of the transceiver in real-time, ensuring that any potential issues are detected and resolved quickly and efficiently.
The receiver sensitivity of our 200G QSFP LR4 Transceiver is also noteworthy, with each lane capable of achieving a sensitivity of -7.2dBm. This ensures that data is transmitted reliably and accurately over long distances, making it ideal for use in applications that require high levels of data integrity.
Finally, the connector type of our 200G QSFP LR4 Transceiver is LC, which is a standard connector type that is widely used in the data center and networking industries. This makes it easy to integrate into existing networks and infrastructure, ensuring that it can be used in a variety of different applications.
Overall, our 200G QSFP56 LR4 Fiber Optic Transceiver is a versatile and reliable solution that is suitable for use in a wide range of different applications and scenarios. Whether you are looking to upgrade your data center or build a new telecommunications network, our transceiver is the perfect choice for delivering high-speed data transfer rates and ensuring reliable performance in any environment.
