200GBASE-LR4 transceiver QSFP56 LR4 200G Optical Module With Cooled DML LAN-WDM Transmitter
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Temperature: | 0-70℃ | Electrical Interface: | 4x26.5625GBd (PAM4) |
|---|---|---|---|
| Receiver Sensitivity: | ＜-10.3dBm | Receiver: | PIN And TIA Array On The Receiver |
| Form Factor: | QSFP Form Factor | Wavelength: | 4 Wavelengths On The LAN-WDM Group Near 1300nm |
| Transmission Distance: | 10km Applications With Or Without FEC | Max Data Rate: | 212.5Gbps |
| Highlight: | qsfp56 200gbase-lr4,qsfp56 200g optical module,200g 200gbase-lr4 |
||
Product Description

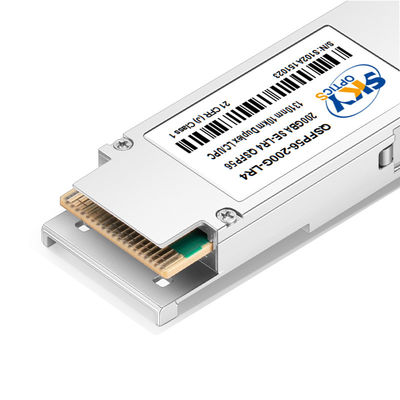

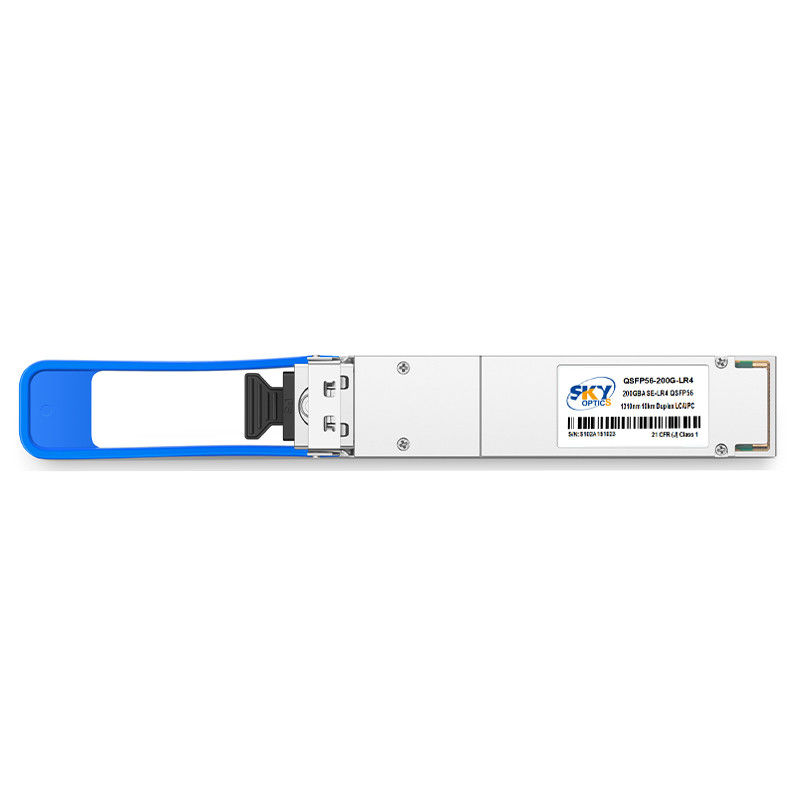

QSFP56 LR4 200G Optical Module With Cooled DML LAN-WDM Transmitter And LC Connector Type
Product Description:
The 200GBASE-LR4 transceiver features a temperature range of 0-70℃, making it suitable for use in a variety of environments. It also has a receiver sensitivity (OMAouter), each lane, of -7.2dBm, which ensures reliable and efficient data transmission. The transceiver is equipped with digital diagnostics monitoring (DDM), allowing for real-time monitoring of the module's operational parameters such as temperature, supply voltage, and optical power levels.
The 200G QSFP LR4 transceiver has a receiver sensitivity of ＜-10.3dBm, which is well-suited for applications requiring long-range data transmission. With a maximum power consumption of 6W, the module is energy-efficient and minimizes power usage.
Overall, the 200G QSFP LR4 optical transceiver is a reliable and high-performance solution for short-range multi-lane data communication and interconnect applications. Its compliance with industry standards, wide temperature range, high receiver sensitivity, and DDM make it an ideal choice for data center and enterprise applications.
Features:
- Product Name: 200G QSFP56 LR4 Optical Transceiver
- Electrical interface: 4x26.5625GBd (PAM4)
- Receiver sensitivity (OMAouter), each lane: -7.2dBm
- Transmission Distance: 10km Applications With Or Without FEC
- Transmitter: Cooled DML LAN-WDM
- Receiver: PIN And TIA Array On The Receiver
Keywords: 200G QSFP Module, 200G Fiber Optic Transceiver, 200GBASE-LR4 transceiver
Technical Parameters:
| Average Launch Power: | -3.4~5.3dBm |
| Connector Type: | LC |
| Form Factor: | QSFP Form Factor |
| Max Power Consumption: | 6W |
| Temperature: | 0-70℃ |
| Fiber Type: | SMF |
| Digital Diagnostics Monitoring (DDM): | Yes |
| Receiver: | PIN and TIA array on the receiver |
| Receiver Sensitivity (OMAouter), Each Lane: | -7.2dBm |
| Transmitter: | Cooled DML LAN-WDM |
Applications:
With a Cooled DML LAN-WDM transmitter, the 200G QSFP56 LR4transceiver delivers an average launch power of -3.4~5.3dBm, ensuring reliable and consistent performance across a range of different applications. The transceiver also boasts a maximum power consumption of just 6W, making it an energy-efficient and cost-effective choice for users looking to optimize their power usage.
Thanks to its 4x26.5625GBd (PAM4) electrical interface, the 200G QSFP LR4 Optical Transceiver is capable of delivering a maximum data rate of 212.5Gbps, making it an ideal choice for high-speed data transfer applications.
This product is suitable for a range of different application occasions and scenarios, including data centers, high-performance computing, cloud computing, and telecommunications. It is an excellent choice for users who require reliable and high-performance data transfer capabilities, and it is an ideal solution for those who need to transfer large amounts of data quickly and efficiently.
Whether you are looking to build a high-speed network infrastructure, boost the performance of your existing network, or simply improve your data transfer capabilities, the 200G QSFP LR4 Optical Transceiver is an excellent choice. With its advanced features, reliable performance, and energy-efficient design, it is the perfect solution for a wide range of different users and applications.
