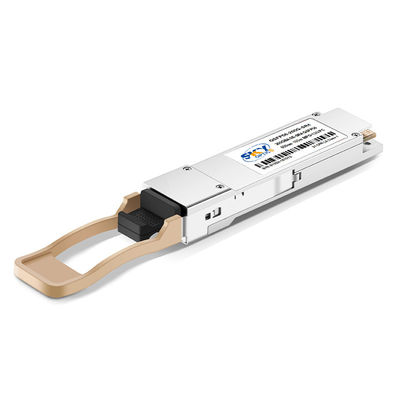

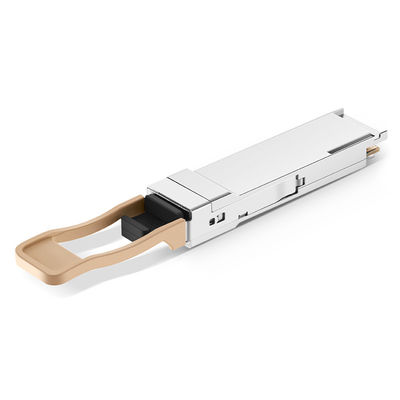

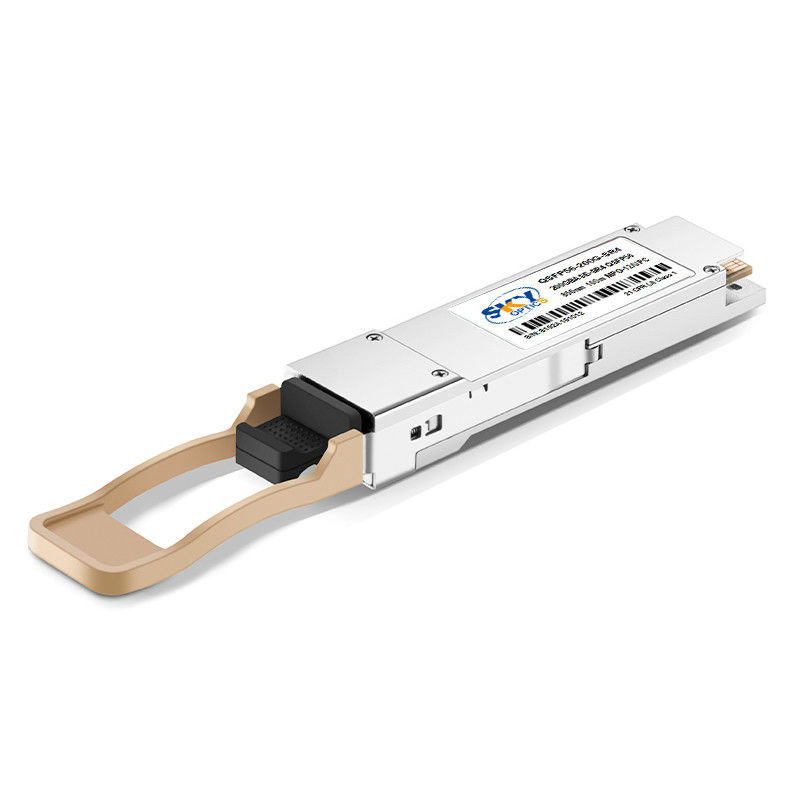

QSFP Form Factor QSFP56 SR4 100m 200G Fiber Optic Transceiver For Speed Data Transfer
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Ddm: | Yes | Receiver Sensitivity: | ＜-10.3dBm |
|---|---|---|---|
| Average Launch Power: | -6.5~4dBm | Fiber Type: | Multi-mode |
| Temperature: | 0-70℃ | Transmission Distance: | Maximum Link Length Of 100m On OM4 Fiber With KP4 |
| Form Factor: | QSFP Form Factor | Compliance: | SFF-8636 |
| Highlight: | 200g fiber optic transceiver,qsfp fiber optic transceiver,qsfp fiber optical transceiver |
||
Product Description
Product Description:
This 200G QSFP56 SR4 Module supports a maximum link length of 100m on OM4 fiber with KP4. This makes it ideal for use in data centers and enterprise network applications.
With its DDM support, this 200G QSFP SR4 optical transceiver provides real-time monitoring of the transceiver, including temperature, voltage, and optical power. This allows for quick identification and resolution of any issues.
The receiver sensitivity of this 200G QSFP56 module is ＜-10.3dBm. This ensures reliable and high-performance data transmission over long distances.
This 200G QSFP56 SR4 Module is designed with a QSFP form factor and supports a max data rate of 200Gbps. This makes it easy to integrate into existing network infrastructure, without requiring any additional hardware or software upgrades.
In summary, the 200G QSFP SR4 optical transceiver is a reliable and high-performance solution for 200G Ethernet applications. Its maximum link length of 100m on OM4 fiber with KP4, DDM support, receiver sensitivity of ＜-10.3dBm, QSFP form factor, and max data rate of 200Gbps make it an ideal choice for data centers and enterprise networks.
Features:
- Product Name: 200G QSFP56 SR4 Optical Transceiver
- Max Power Consumption: 6W
- Average launch power: -6.5~4dBm
- Connector Type: MPO-12 APC Connector
- Transmission Distance: Maximum Link Length Of 100m On OM4 Fiber With KP4
- Max Data Rate: 200Gbps
Keywords: 200G Optical Transceiver, 200GBASE-SR4 Optical Transceiver, 200Gbs QSFP SR4
Technical Parameters:
| Product Name | 200G QSFP56 SR4 transceiver |
| Max Power Consumption | 6W |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Average Launch Power | -6.5~4dBm |
| Connector Type | MPO-12 APC Connector |
| Receiver Sensitivity | <-10.3dBm |
| Transmission Distance | Maximum Link Length Of 100m On OM4 Fiber With KP4 |
| Compliance | SFF-8636 |
| Max Data Rate | 200Gbps |
| Fiber Type | Multi-mode |
Applications:
The 200G QSFP56 SR4 Fiber Optic Transceiver, also known as the 200GBASE-SR4 module or QSFP56 SR4 module, is designed for multi-mode fiber networks. The transceiver is equipped with a MPO-12 APC Connector, which is ideal for high-density data center applications.
The transceiver's temperature range of 0-70℃ makes it suitable for use in a wide range of environments. It is designed to operate in high-temperature environments, making it suitable for industrial applications. It is also well suited for use in data centers, where the temperature can vary widely depending on the location of the facility.
The Digital Diagnostics Monitoring (DDM) feature of the transceiver allows network administrators to monitor the performance of the module in real-time. This feature provides valuable insights into the health of the network, allowing for proactive maintenance and troubleshooting.
The transceiver's multi-mode fiber capability makes it ideal for use in short-range applications, such as in data centers and storage area networks (SANs). It can be used to connect servers, switches, and storage devices together in a high-speed, low-latency network.
The transceiver's high power consumption of 6W makes it suitable for use in applications where power consumption is not a concern. This includes applications where power is readily available, such as in data centers and industrial environments.
In summary, the 200G QSFP56 SR4 Optical Transceiver product is an ideal solution for high-speed, short-range multi-mode fiber networks. Its MPO-12 APC Connector, DDM feature, and wide temperature range make it a versatile and reliable choice for a variety of applications.
