Hot Pluggable 40G QSFP SR4 Module For Transmission Distance Of 100m OM3
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Fiber Type: | Multimode | Connector Type: | Single MPO Connector |
|---|---|---|---|
| Monitoring: | DDM/DOM | Transmission Distance: | 100m OM3, 150m OM4 |
| Wavelength: | 850nm | Application: | 40GBASE-SR4 Ethernet, Switch, Router, HBAs, Infiniband Transmission At 4 Channels SDR, DDR And QDR, Proprietary Protocol Applications |
| Compatibility: | Cisco/ HP/ Juniper/ Alcatel-Lucent | Hot Swappable: | Yes |
| Highlight: | hot pluggable 40g qsfp sr4,100m 40g qsfp sr4,100m qsfp sr4 40g |
||
Product Description

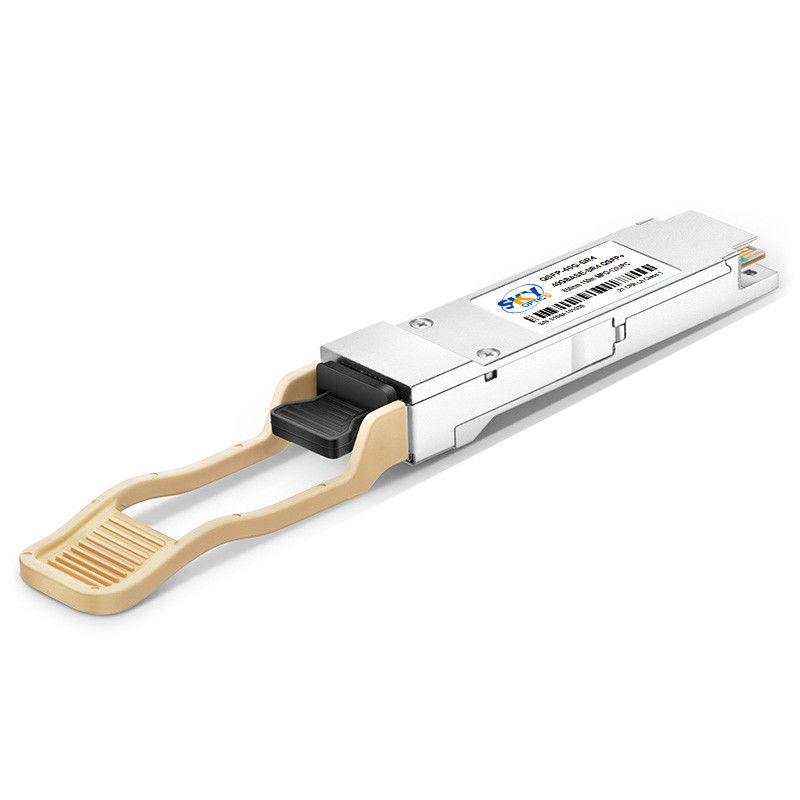

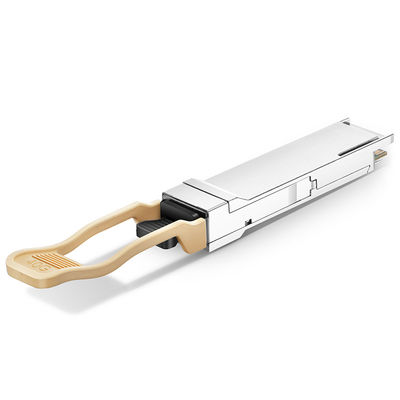

Hot Pluggable QSFP Form Factor 40G QSFP SR4 Module for Transmission Distance of 100m OM3
Product Description:
The 40G QSFP SR4 pluggable module is compliant with the QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4, and RoHS standards. It supports a maximum link length of 100m on OM3 multimode fiber and 150m on OM4 multimode fiber with an average launch power between -7.6dBm and 2.4dBm for each lane.
With a power supply of 3.3V, the 40G QSFP SR4 optical module is designed to provide high-speed connectivity in a compact and low-power consumption form factor. It is an ideal solution for 40 Gigabit Ethernet applications that require reliable and high-performance connectivity.
Features:
- Product Name: 40G SR4 Optical Module
- Transmission Distance: 100m OM3, 150m OM4
- Power Supply: 3.3V
- Application: 40GBASE-SR4 Ethernet, Switch, Router, HBAs, Infiniband Transmission At 4 Channels SDR, DDR And QDR, Proprietary Protocol Applications
- Fiber Type: Multimode
- Compatibility: Cisco/ HP/ Juniper/ Alcatel-Lucent
Keywords: 40G QSFP Module, 40G QSFP SR4 Optical Module, 40G Short-Range Optical Module
Technical Parameters:
| Fiber Type | Multimode |
| Hot Swappable | Yes |
| Operating Temperature | 0°C To 70°C |
| Average launch power, each lane | -7.6dBm~2.4dBm |
| Wavelength | 850nm |
| Max LOS De-Assert | -12dBm |
| Connector Type | Single MPO Connector |
| Form Factor | Hot Pluggable QSFP+ Form Factor |
| Receiver | 4 Channels PIN Photo Detector Array |
| Transmission Distance | 100m OM3, 150m OM4 |
Applications:
Our 40G QSFP SR4 transceiver is a perfect solution for high-speed data transmission in various scenarios. Here are some of the product application occasions and scenarios:
- Data Centers: Our 40G QSFP SR4 transceiver is an ideal solution for data centers that require high-speed data transmission over a short distance. With its hot-swappable feature, it is easy to replace the module without interrupting the network.
- High-Performance Computing: The 40G QSFP SR4 transceiver is perfect for high-performance computing, especially for applications that require low latency and high data transfer rates.
- Video Streaming: Our 40G QSFP SR4 transceiver is an excellent choice for video streaming applications. It can easily transmit high-quality video signals over a short distance with minimal delays.
- Telecommunications: The 40G QSFP SR4 transceiver is suitable for telecommunications applications that require high-speed data transmission over a short distance. It can transmit data between switches, routers, and servers with ease.
- Cloud Computing: Our 40G QSFP SR4 transceiver is an excellent solution for cloud computing applications that require high-speed data transmission over a short distance. It can easily connect servers, storage devices, and switches in a data center.
Our 40G QSFP SR4 transceiver is a reliable and cost-effective solution for high-speed data transmission over a short distance. With its hot-swappable feature, it is easy to replace the module without interrupting the network. Contact us today to learn more about our 40G QSFP SR4transceiver and how it can benefit your business!
