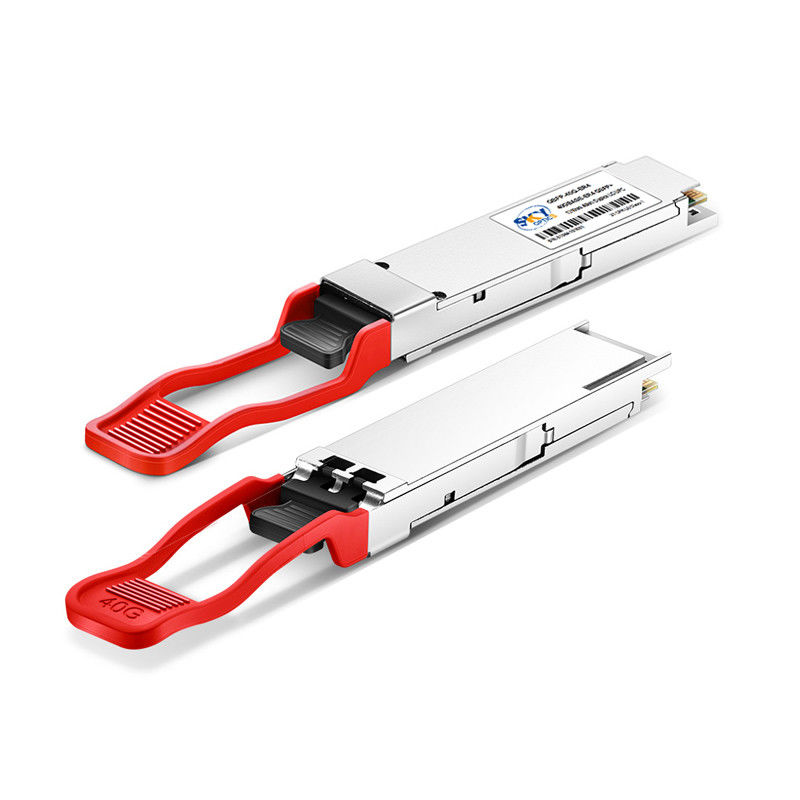

SFF-8436 QSFP+ ER4 40G Optical Module Hot Swappable With Duplex LC Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Operating Temperature: | 0°C To 70°C | Compatibility: | Cisco/ Juniper / Multi-brand Compatible |
|---|---|---|---|
| Application: | 40GBASE-ER4 Ethernet, Infiniband QDR And DDR Interconnects,Client-side 40G Telecom Connections | Hot Swappable: | Yes |
| Wavelength: | 1310nm (4 CWDM Lanes MUX/DEMUX) | Average Launch Power, Each Lane: | -2.7dBm~4.5dBm |
| Extinction Ratio: | -3.5dB | Power Consumption: | Max 3.5W |
| Highlight: | 40g optical module hot swappable,hot swappable sff-8436 qsfp,3.5w sff-8436 qsfp |
||
Product Description
Product Description:
The 40G QSFP+ ER4 Module requires a 3.3V power supply and has a maximum power consumption of 3.5W. This makes it an efficient and cost-effective solution for high-speed data center and enterprise network applications.
The 40G QSFP+ ER4 Module is compatible with a range of devices, including Cisco, Juniper, and multi-brand compatible switches and routers. This makes it a versatile and flexible solution for a variety of network configurations.
With its high-speed performance and reliable connectivity, the 40G QSFP ER4Optical Transceiver Module is an ideal choice for applications such as data center interconnects, high-performance computing, and cloud computing networks.
Features:
- Product Name: 40G QSFP+ ER4 Hot-Pluggable Optical Module
- Monitoring: DDM/DOM
- Application: 40GBASE-ER4 Ethernet, Infiniband QDR and DDR Interconnects, Client-side 40G Telecom Connections
- Average Launch Power, each Lane: -2.7dBm~4.5dBm
- Power Consumption: Max 3.5W
- Receiver Sensitivity (OMA), each Lane: -19dBm
- Product Type: 40G QSFP transceiver
- Product Model: 40G QSFP Module
Technical Parameters:
| Product Name | 40G QSFP ER4 Optical Module |
| Power Consumption | Max 3.5W |
| Receive Power (OMA), each Lane | -4dBm |
| Wavelength | 1310nm (4 CWDM Lanes MUX/DEMUX) |
| Operating Temperature | 0°C To 70°C |
| Compliant | IEEE802.3ba, SFF-8436 |
| Receiver Sensitivity (OMA), each Lane | -19dBm |
| Average Launch Power, each Lane | -2.7dBm~4.5dBm |
| Connector Type | Duplex LC Connector |
| Fiber Type | Singlemode |
| Power Supply | 3.3V |
| Product Type | 40G Hot-Pluggable Optical Module |
Applications:
This optical module is an ideal solution for high-bandwidth data center and enterprise networking applications, including cloud computing, high-performance computing, and storage area networks. It can be used for data transmission over long distances of up to 40km, making it suitable for use in large-scale data centers and enterprise networks.
In addition to its long-distance capabilities, the 40G QSFP ER4 Module is also highly energy-efficient, with a maximum power consumption of just 3.5W. This makes it an environmentally friendly choice for organizations that are committed to reducing their carbon footprint.
The 40G QSFP ER4 Module is also highly versatile and compatible with a wide range of networking equipment, including Cisco, Juniper, and other multi-brand compatible devices. This makes it an excellent choice for organizations that need to upgrade their existing infrastructure without having to replace their entire network.
Overall, the 40G QSFP ER4 Module is a powerful and reliable optical module that is ideal for a wide range of high-bandwidth networking applications. Whether you need to transmit data over long distances, reduce your energy consumption, or upgrade your existing network infrastructure, this optical module is an excellent choice.
