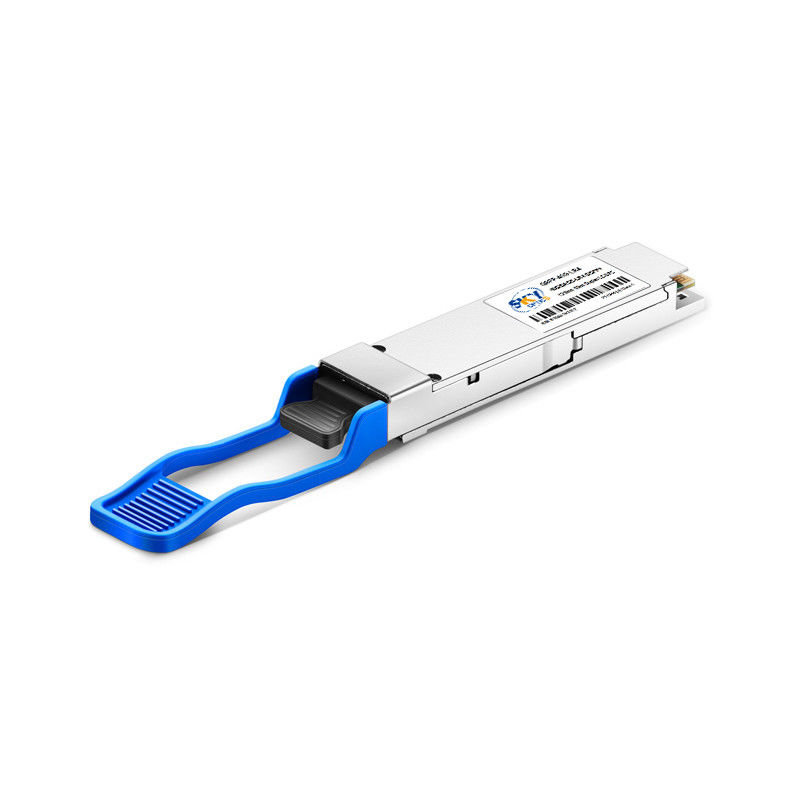

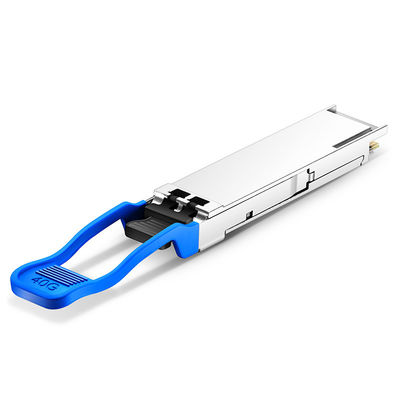

40GBASE-LR4 Ethernet 40G Optical Module 10km -7dBm-2.3dBm Average Launch Power
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Distance: | 10km | Power Supply: | 3.3V |
|---|---|---|---|
| Compliant: | IEEE802.3ba, SFF-8436 | Form Factor: | Hot Pluggable QSFP+ Form Factor |
| Operating Temperature: | 0°C To 70°C | Wavelength: | 1310nm (4 CWDM Lanes MUX/DEMUX) |
| Monitoring: | DDM/DOM | Extinction Ratio: | -3.5dB |
| Highlight: | ethernet 40g optical module,40g optical module 10km,ethernet qsfp+ optical module |
||
Product Description
Product Description:
Our 40 Gbps Optical Module features an average launch power of -7dBm~2.3dBm for each lane, ensuring reliable and stable performance. With support for 40GBASE-LR4 Ethernet, Infiniband QDR and DDR interconnects, and client-side 40G telecom connections, our module is the perfect choice for a wide range of applications.
The 40G QSFP Module is designed to operate within a temperature range of 0°C to 70°C, ensuring that it can be used in a wide range of environments. Additionally, our module features DDM/DOM monitoring, allowing you to keep an eye on your network performance and ensure that your connections are operating as expected.
Our 40 Gbps Optical Module is powered by a 3.3V power supply, making it easy to integrate into your existing network infrastructure. With its compact form factor and reliable performance, our module is the perfect choice for high-performance networking applications.
Features:
- Product Name: 40G Optical Module
- Extinction Ratio: -3.5dB
- Data Rate: 40Gbps (10.3125Gb/s Data Rate Per Channel)
- Monitoring: DDM/DOM
- Average Launch Power, each Lane: -7dBm~2.3dBm
- Connector Type: Duplex LC Connector
This product is also known as the following:
- QSFP+ LR4 module
- 40G QSFP Module
- 40G QSFP Optical Transceiver Module
Technical Parameters:
| Product Name: | 40G QSFP Module |
| Product Type: | 40G Pluggable Optical Module |
| Wavelength: | 1310nm (4 CWDM Lanes MUX/DEMUX) |
| Fiber Type: | Singlemode |
| Distance: | 10km |
| Data Rate: | 40Gbps (10.3125Gb/s Data Rate Per Channel) |
| Compliant: | IEEE802.3ba, SFF-8436 |
| Operating Temperature: | 0°C To 70°C |
| Compatibility: | Cisco/ Juniper / Multi-brand Compatible |
| Hot Swappable: | Yes |
| Form Factor: | Hot Pluggable QSFP+ Form Factor |
| Application: | 40GBASE-LR4 Ethernet, Infiniband QDR And DDR Interconnects,Client-side 40G Telecom Connections |
| Product Name: | 40G Long-Wavelength Optical Module |
Applications:
The 40G QSFP Optical Transceiver Module can be used in various networking and data center applications, including inter-rack connections, data aggregation, and high-performance computing. Its compatibility with multiple brands ensures that it can be used in various networking environments without any compatibility issues.
The 40G QSFP Optical Transceiver Module requires a power supply of 3.3V, making it an energy-efficient solution for high-speed data transmission. With an average launch power of each lane ranging from -7dBm to 2.3dBm, this optical module can transmit data over long distances with ease.
Whether you are looking for a solution for your data center or network infrastructure, the 40G QSFP LR4 Optical Module is perfect for various scenarios. It can be used in enterprise data centers, service providers, and cloud computing environments.
Thanks to its high-speed data transfer capabilities and long-range transmission capabilities, the 40G QSFP Optical Transceiver Module is perfect for applications that require high-speed data transfer over long distances. It can be used in various scenarios, including data backup and disaster recovery, large-scale data transfer, and data streaming applications.
In conclusion, the 40G QSFP Optical Transceiver Module is an ideal solution for high-speed data transmission over long distances. Its compatibility with multiple brands, energy efficiency, and long-range transmission capabilities make it a versatile solution for various networking and data center applications.
