Hot Pluggable Optical Transceiver Module QSFP-DD 400GBASE-SR8 PAM4 850nm MMF 100m OM3
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
| Model Number: | SQD-400G-SR8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Contact us |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Highlight: | optical transceiver module qsfp-dd,Hot Pluggable optical transceiver module |
||
|---|---|---|---|
Product Description

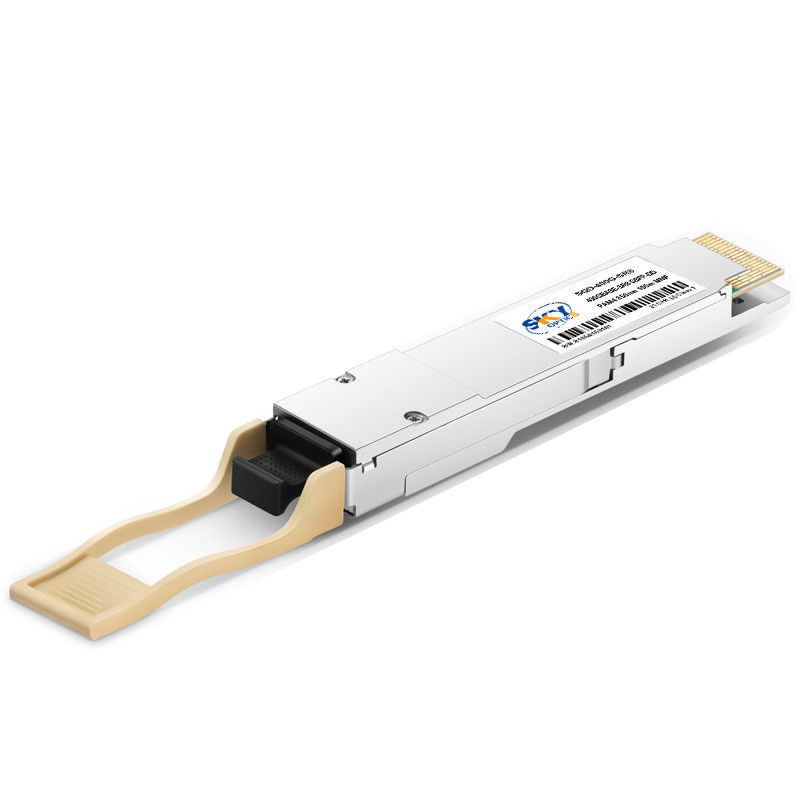

QSFP-DD 400GBASE-SR8 PAM4 Optical Transceiver (850nm, MMF, 100m @ OM3, MPO-16/APC)
SQD-400G-SR8 is a parallel 400Gb/s Quad Small Form Factor Pluggable--double density (QSFP-DD) optical module, offers 8 independent transmit and receive channels, each capable of 53.125Gb/s operation for an aggregate data rate of 400Gb/s on 100 meters of OM3 multi-mode fiber.
Specifications
| Part Number | SQD-400G-SR8 | Vendor Name | SkyOptics / Customized |
| Form Factor | QSFP-DD | Data Rate | 400Gbps (53.125Gbps per Channel) |
| Wavelength | 850nm | Max Cable Distance | 100m @ OM3 with FEC |
| Connector | MPO-16 APC | Cable Type | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -6.5-4dBm | Minimum Receiver Power | -7.9dBm |
| Receiver Sensitivity | -6.5dBm | Extinction Ratio | ＞3dB |
| Power Consumption | ≤12W | Modulation Format | PAM4 |
| Case Temperature | 0 to 70°C (32 to 158°F) | Inbuilt FEC | No |
| Protocols | IEEE 802.3bs | Warranty | 5 Years |
Applications
