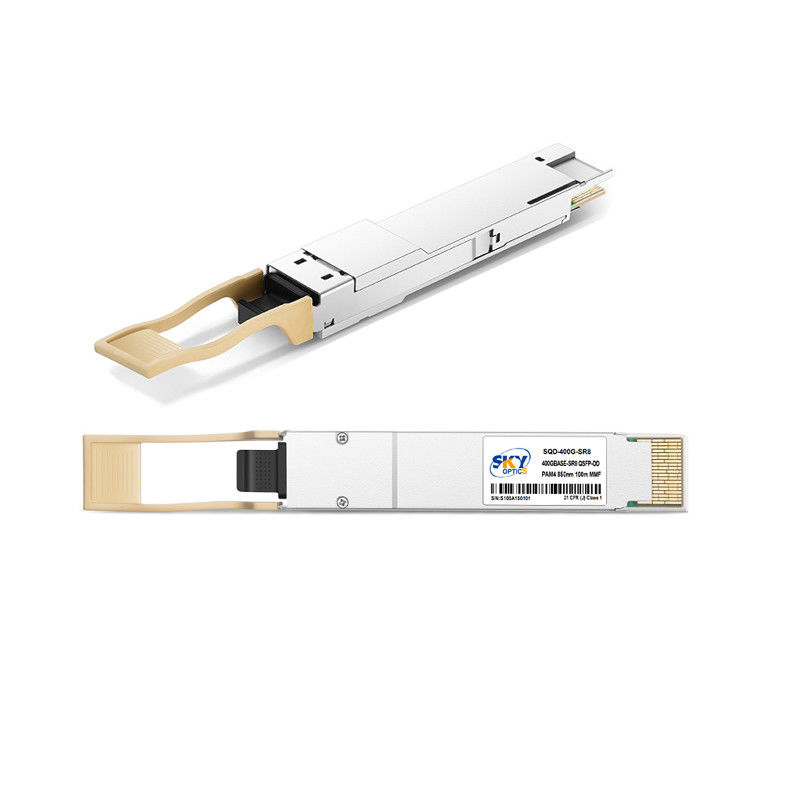

12W 400G Optical Module QSFP-DD SR8 MPO-16 Connector In QSFP-DD Form Factor
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Power Consumption: | 12W (Maximum) | Form Factor: | QSFP-DD |
|---|---|---|---|
| Connector: | MPO-16 Connector | Wavelength: | 850nm |
| Hot Pluggable: | Yes | Operating Temperature: | 0°C To 70°C |
| Compliant: | QSFP-DD MSA IEEE 802.3bs | Electrical Interface: | 8x53.125Gb/s (400GAUI-8) |
| Highlight: | 12w 400g optical module,400g optical module qsfp-dd,12w qsfp-dd sr8 |
||
Product Description
QSFP-DD SR8 Maximize Your Network's Potential with 400G Optical Module and MPO-16 Connector in QSFP-DD Form Factor
Product Description:
The 400G Optical Module is compliant with the 400GBASE-SR8 standard and supports both Ethernet and InfiniBand protocols. It is designed with the QSFP-DD form factor, which provides a high-density, hot-pluggable solution for data center and high-performance computing (HPC) applications.
In addition to its high performance and compatibility with industry standards, the 400G Optical Module is also designed for ease of use. Its plug-and-play design allows for quick and easy installation, while its low power consumption helps to reduce overall energy costs.
Overall, the 400G Optical Module is a reliable and high-performance solution for organizations looking to upgrade their 400GbE infrastructure. Its compatibility with industry standards and ease of use make it a great choice for data center and HPC applications.
Features:
- Product Name: 400G Optical Module
- Power Consumption: 12W (Maximum)
- Operating Temperature: 0°C To 70°C
- Distance: 100M (OM3 With FEC)
- Fiber Type: MMF
- Electrical Interface: 8x53.125Gb/s (400GAUI-8)
Technical Parameters:
| Power Consumption | 12W (Maximum) |
| Distance | 100M (OM3 With FEC) |
| Hot Pluggable | Yes |
| Fiber Type | MMF |
| Electrical Interface | 8x53.125Gb/s (400GAUI-8) |
| Compliant | QSFP-DD MSA IEEE 802.3bs |
| Form Factor | QSFP-DD |
| Connector | MPO-16 Connector |
| Operating Temperature | 0°C To 70°C |
| Application | Enterprise Networking / 400G Ethernet / Data Center Interconnect / Infiniband Interconnects |
Applications:
A QSFP-DD transceiver module, the QSFP-DD SR8 optical transceiver is designed for high-speed data transmission over short distances. With a fiber type of MMF and a wavelength of 850nm, this optical module is perfect for data center applications that require high-performance connectivity.
The 400G optical module is capable of transmitting data at a rate of 400Gbps, with each channel operating at 53.125Gbps (PAM4). This makes it ideal for use in high-bandwidth applications such as cloud computing, big data analytics, and video streaming.
With a distance capability of up to 100 meters on OM3 fiber with FEC, the QSFP-DD SR8 optical transceiver is suitable for use in short-range applications such as intra-rack and inter-rack connections.
The electrical interface of the QSFP-DD transceiver module is 8x53.125Gb/s (400GAUI-8), which ensures reliable data transmission over the fiber optic network.
Overall, the QSFP-DD transceiver module is a versatile and reliable optical module that can be used in a variety of data center applications. Whether you need to connect servers, switches, or storage devices, the QSFP-DD SR8 optical transceiver is a great choice for high-speed data transmission over short distances.
