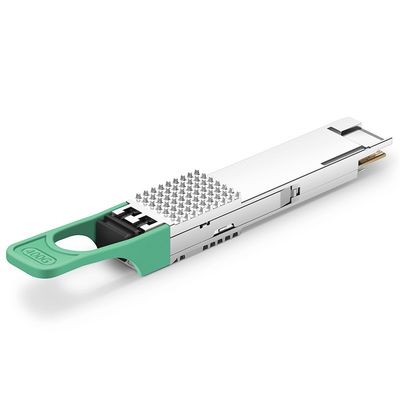

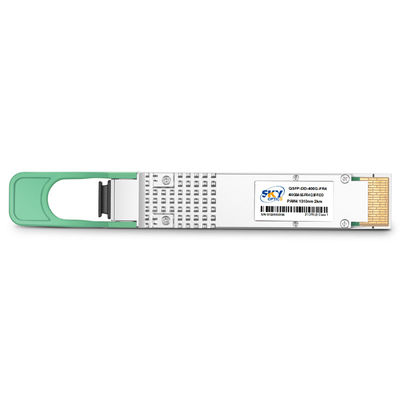

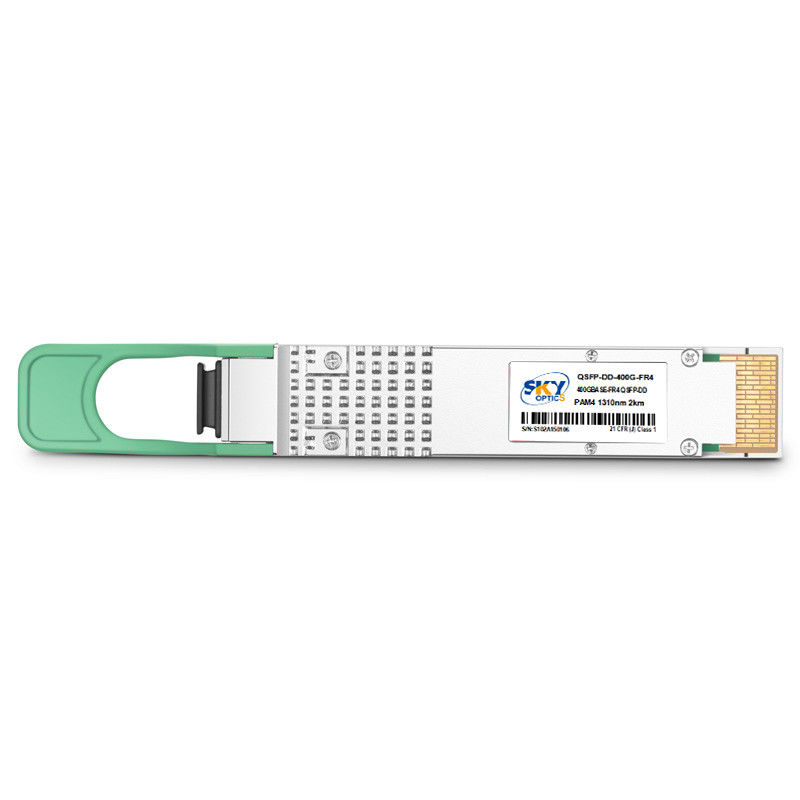

QSFP-DD FR4 400G Optical Transceiver 4 CWDM Channels 1271nm 1291nm 1311nm 1331nm
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Power Supply: | 3.3V | Wavelength: | 4 CWDM Channels ( 1271, 1291, 1311 And 1331 Nm) |
|---|---|---|---|
| Distance: | 2km ( With FEC) | Hot Pluggable: | Yes |
| Electrical Interface: | 8x53.125Gb/s (400GAUI-8) | Operating Temperature: | 0°C To 70°C |
| Application: | 400G Ethernet / Data Center Interconnect / Infiniband Interconnects | Fiber Type: | SMF |
| Highlight: | 400g optical transceiver 1271nm,qsfp-dd 400g optical transceiver,400g optical transceiver 1291nm |
||
Product Description
Product Description:
The QSFP-DD form factor is compact and easy to install, making it ideal for high-density network environments. The module supports distances of up to 2km with FEC, providing reliable performance over long distances.
The 400G QSFP-DD module is built to meet the demanding needs of modern data centers, providing high bandwidth and low latency. With QSFP-DD FR4 technology, the module delivers fast speeds and low power consumption, making it an ideal choice for enterprise-level networks.
Features:
- Product Name: 400G Optical Module
- Distance: 2km ( With FEC)
- Connector: Duplex LC
- Hot Pluggable: Yes
- Fiber Type: SMF
- Form Factor: QSFP-DD
- 400G QSFP-DD module
- QSFP-DD FR4
- 400G QSFP-DD module
Technical Parameters:
| Fiber Type | SMF |
| Distance | 2km (With FEC) |
| Connector | Duplex LC |
| Power Supply | 3.3V |
| Electrical Interface | 8x53.125Gb/s (400GAUI-8) |
| Operating Temperature | 0°C To 70°C |
| Hot Pluggable | Yes |
| Power Consumption | 12W (Maximum) |
| Application | 400G Ethernet / Data Center Interconnect / Infiniband Interconnects/Enterprise networking |
| Data Rate | 400Gbps, 106.25Gbps (PAM4) Per Channel |
The 400G Optical Module product is a QSFP-DD module, which stands for Quad Small Form Factor Pluggable--double density (QSFP-DD) optical module.
Applications:
The 400G Optical Module is a hot pluggable optical transceiver that is designed to provide high-speed connectivity for various applications. This Quad Small Form Factor Pluggable--double density (QSFP-DD) optical module can support a data rate of 400Gbps, 106.25Gbps (PAM4) per channel. The module is suitable for use in a wide range of scenarios, including:
- 400G Ethernet: The 400G Optical Module is an ideal solution for high-speed Ethernet networks. It can provide fast and reliable connectivity for data centers, cloud computing, and other applications that require high bandwidth and low latency. The module can support a distance of up to 2km with Forward Error Correction (FEC), making it suitable for long-range connections.
- Data Center Interconnect: The 400G Optical Module can be used for interconnecting data centers over short or long distances. It can provide a high-speed link between different data centers, allowing them to share resources and workloads efficiently.
- Infiniband Interconnects: The 400G Optical Module is also suitable for use in Infiniband interconnects. It can provide fast and reliable connectivity for high-performance computing (HPC) clusters, storage networks, and other applications that require low latency and high bandwidth.
The 400G QSFP-DD optical module has an operating temperature range of 0°C to 70°C, making it suitable for use in a variety of environments. Its hot pluggable design allows for easy installation and replacement without disrupting network operations. With its high-speed connectivity, the 400G Optical Module is an excellent choice for organizations that require high bandwidth and low latency for their applications.
Support and Services:
The 400G Optical Module is a high-speed optical transceiver used in data center networks to transmit and receive data over optical fiber. Our technical support team is available to assist with any issues related to the installation, configuration, or operation of the module. We also offer services such as repair, replacement, and testing to ensure optimal performance. Our team of experts is dedicated to providing timely and effective solutions to any technical problems that may arise.
