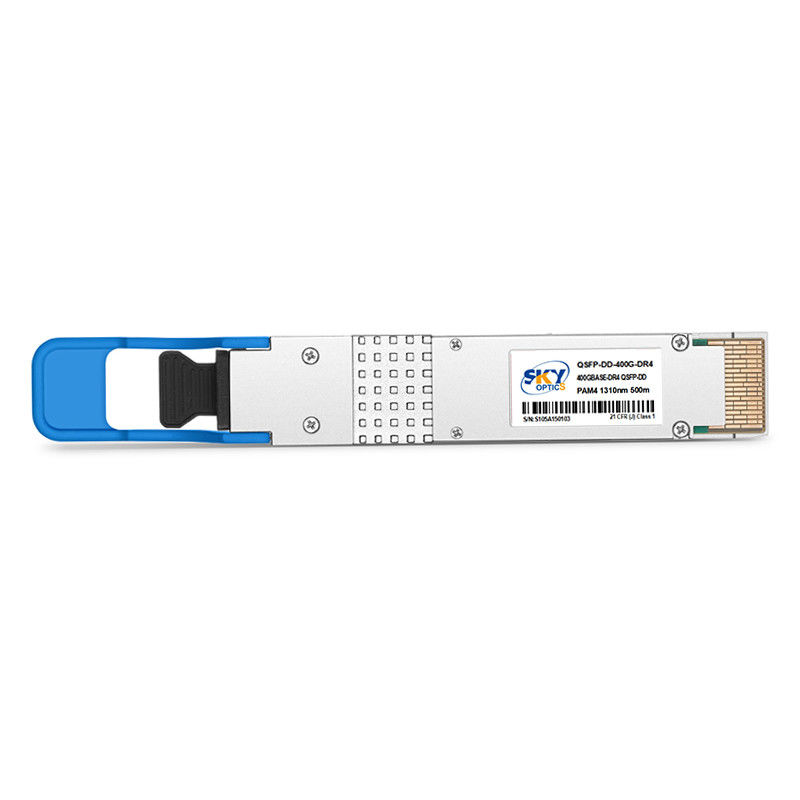

QSFP-DD 400G DR4 Transceiver For Seamless Data Center Interconnect
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Data Rate: | 400Gbps, 106.25Gbps (PAM4) Per Channel | Power Consumption: | 12W (Maximum) |
|---|---|---|---|
| Connector: | MPO-12 Connector | Hot Pluggable: | Yes |
| Compliant: | QSFP-DD MSA IEEE 802.3bs | Application: | 400G Ethernet / Data Center Interconnect / Infiniband Interconnects |
| Fiber Type: | SMF | Form Factor: | QSFP-DD |
| Highlight: | qsfp-dd 400g dr4 transceiver,qsfp-dd 400g dr4,12w qsfp-dd 400g |
||
Product Description
400G QSFP-DD DR4 Transceiver The Ultimate Solution for Seamless Data Center Interconnect and Infiniband Interconnects 0°C To 70°C
Product Description:
The 400G Optical Module is designed with an Electrical Interface of 8x53.125Gb/s (400GAUI-8). This interface allows for high-speed data transfer, making it perfect for data centers and enterprise networks that require high-bandwidth applications. This interface is compatible with QSFP-DD MSA IEEE 802.3bs, which means that it is compliant with industry standards.
The 400G Optical Module is designed to work with Multimode Fiber (MMF). MMF is an optical fiber that is designed to carry multiple light rays or modes simultaneously. This makes it perfect for high-bandwidth applications that require high-speed data transfer. The 400G module can deliver high-speed connectivity over a distance of 500 meters, which is perfect for data centers and enterprise networks that require high-bandwidth applications over long distances.
The 400G Optical Module is designed to operate in a temperature range of 0°C to 70°C. This means that it can operate in a wide range of temperatures, making it perfect for data centers and enterprise networks that require high-bandwidth applications in harsh environments.
Our 400G Optical Module is compliant with QSFP-DD MSA IEEE 802.3bs, which means that it meets industry standards. This compliance ensures that the 400G module is compatible with other devices that are compliant with the same standards.
Overall, the 400G Optical Module is a high-speed networking product that is designed to deliver high-speed connectivity for data centers and enterprise networks that require high-bandwidth applications. It is designed with an Electrical Interface of 8x53.125Gb/s (400GAUI-8), and it is compatible with QSFP-DD MSA IEEE 802.3bs. It is designed to work with Multimode Fiber (MMF) and can deliver high-speed connectivity over a distance of 500 meters. It is designed to operate in a temperature range of 0°C to 70°C, making it perfect for data centers and enterprise networks that require high-bandwidth applications in harsh environments. Our 400G Optical Module is compliant with industry standards, which ensures that it is compatible with other devices that are compliant with the same standards.
Features:
- Product Name: 400G Optical Module
- Wavelength: 1310nm
- Operating Temperature: 0°C To 70°C
- Fiber Type: SMF
- Distance: 500M
- Hot Pluggable: Yes
This 400G Optical Module is also known as the 400G QSFP-DD transceiver, QSFP-DD DR4, and QSFP-DD DR4 optical transceiver.
Technical Parameters:
| Product Name: | QSFP-DD DR4 optical transceiver |
| Application: | 400G Ethernet / Data Center Interconnect / Infiniband Interconnects |
| Wavelength: | 1310nm |
| Fiber Type: | SMF |
| Operating Temperature: | 0°C To 70°C |
| Distance: | 500M |
| Hot Pluggable: | Yes |
| Form Factor: | QSFP-DD |
| Power Consumption: | 12W (Maximum) |
| Compliant: | QSFP-DD MSA IEEE 802.3bs |
| Electrical Interface: | 8x53.125Gb/s (400GAUI-8) |
Applications:
The product is designed with an MPO-12 connector, which ensures a stable and reliable connection. It is compatible with MMF fiber types, which makes it ideal for use in data centers that have MMF fiber infrastructure.
The 400G Optical Module is perfect for 400 Gigabit Ethernet applications, providing fast and efficient data transmission for high-bandwidth applications. It is also ideal for use in data center interconnect scenarios, where large amounts of data need to be transferred between data centers. In addition, the 400G Optical Module can be used for Infiniband interconnects, providing high-speed data transfer for InfiniBand clusters.
Whether you need to transfer large amounts of data quickly, or connect multiple data centers together, the 400G Optical Module is the perfect solution. Its compatibility with MMF fiber types, MPO-12 connector, and support for 400 Gigabit Ethernet, 400G InfiniBand transceiver, and QSFP-DD DR4 make it a versatile and reliable choice for any high-speed data transmission scenario.
