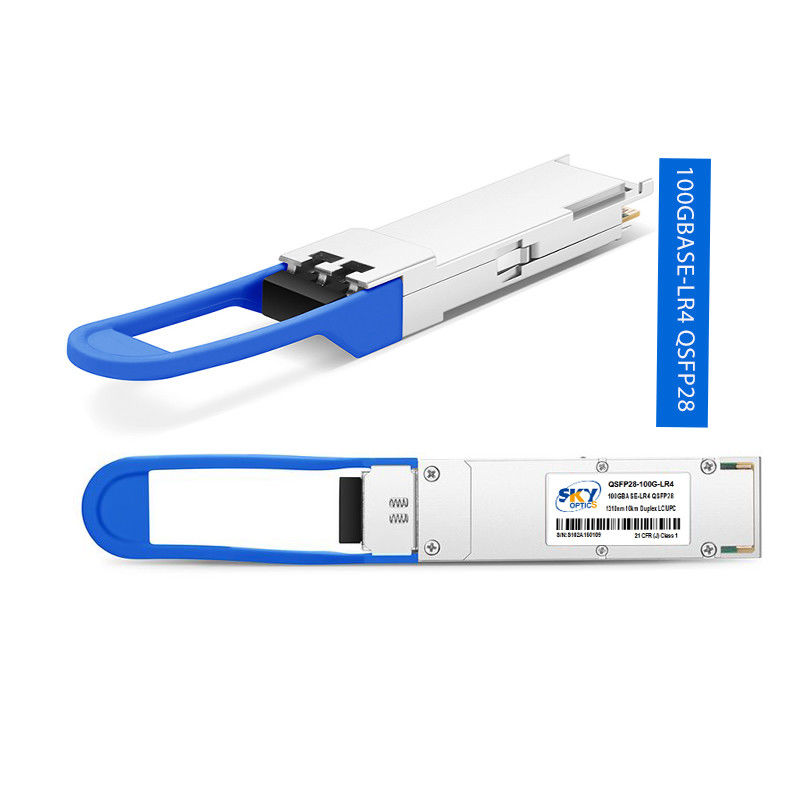

100G LR4 QSFP28 Optical Modules With LC Connectors 100 Gigabit Ethernet Module
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
| Model Number: | SQ-100G-LR4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Connector Type: | LC | Compliance: | RoHS, MSA, IEEE 802.3bm |
|---|---|---|---|
| Form Factor: | QSFP28 | Compatibility: | Multi-vendor |
| Wavelength: | 1310nm | Operating Temperature: | 0°C To 70°C |
| Transmission Distance: | Up To 10km | Power Consumption: | Less Than 3.5W |
| Highlight: | lr4 gigabit ethernet module,qsfp28 gigabit ethernet module,10km 100g lr4 qsfp28 |
||
Product Description
Product Description:
With a data rate of 100Gbps, these modules are ideal for high-speed data transmission and can meet the demands of even the most data-intensive applications. They are also designed to consume less than 3.5W of power, making them an energy-efficient choice for any network infrastructure.

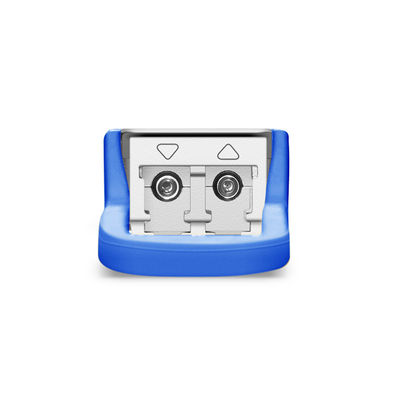

These 100G Transceivers are equipped with LC connectors, ensuring a secure and reliable connection between devices. This makes them easy to install and integrate into any network architecture. Additionally, their small form factor allows for greater flexibility and easier management of network resources.
The 100Gbs LR4 protocol used by these modules ensures high-quality, low-latency data transmission, enabling faster and more efficient data processing. This protocol is widely used in high-performance computing and data center applications, making these modules an excellent choice for organizations looking to optimize their network infrastructure.
In summary, the 100G Fiber Optic Modules are a high-performance, energy-efficient solution for any network infrastructure. With their compliance to industry standards, high data rate, low power consumption, LC connectors, and use of the 100Gbs LR4 protocol, these modules are a reliable choice for any organization looking to optimize its network performance.
Features:
- Product Name: 100G QSFP28 LR4 Optical Modules
- Form Factor: QSFP28
- Power Consumption: Less Than 3.5W
- Hot Pluggable: Yes
- Operating Temperature: 0°C To 70°C
- Fiber Type: Single-mode
Technical Parameters:
| Technical Parameter | Description |
|---|---|
| Product Name | 100G QSFP28 LR4 Optics Module Transceivers |
| Transmission Distance | Up to 10km |
| Power Supply | 3.3V |
| Interface | Duplex LC |
| Compatibility | Multi-vendor |
| Data Rate | 100Gbps |
| Operating Temperature | 0°C to 70°C |
| Connector Type | LC |
| Form Factor | QSFP28 |
| Wavelength | 1310nm |
| Protocols | Ethernet, Fibre Channel, Infiniband |
Applications:
The Sky Optics SQ-100G-LR4 100G Optical Modules are built to meet the needs of modern data centers. They are designed to operate at temperatures ranging from 0°C to 70°C, making them suitable for use in a wide range of environments. The modules are also compliant with RoHS, MSA, and IEEE 802.3bm standards, ensuring that they meet the highest standards for quality and safety.
The Sky Optics SQ-100G-LR4 100G Optical Modules are ideal for a wide range of applications and scenarios. They are perfect for use in data centers, where high-speed data transfer is essential for the smooth operation of mission-critical applications. They are also suitable for use in enterprise networks, where high-speed data transfer is required for tasks such as data backup and disaster recovery.
The Sky Optics SQ-100G-LR4 100G Optical Modules are designed to work with single-mode fiber, providing reliable and consistent performance over long distances. The modules are easy to install and require no special tools or expertise. They are also highly reliable, with a mean time between failures (MTBF) of over 200,000 hours.
In summary, the Sky Optics SQ-100G-LR4 100G Optical Modules are an excellent choice for customers looking for a high-performance and reliable solution for their data center or enterprise network. With a data rate of 100Gbps, a transmission distance of up to 10km, and compatibility with the 100G QSF28 LR4 standard, these modules are the perfect choice for customers who demand the highest standards of performance and reliability.
FAQ:
Q: What is the brand name of this 100G optical module?
A: The brand name of this 100G optical module is Sky Optics.
Q: What is the model number of this 100G optical module?
A: The model number of this 100G optical module is SQ-100G-LR4.
Q: Where is this 100G optical module manufactured?
A: This 100G optical module is manufactured in China.
Q: What is the transmission distance of this 100G optical module?
A: This 100G optical module has a transmission distance of up to 10 kilometers.
Q: What type of connector does this 100G optical module use?
A: This 100G optical module uses a duplex LC connector.
