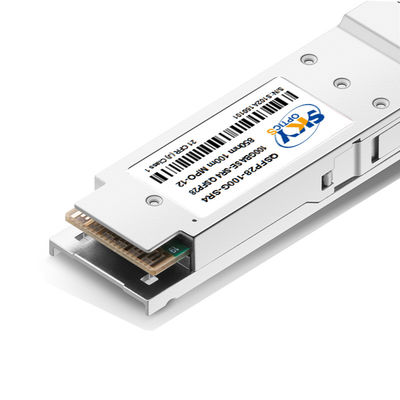

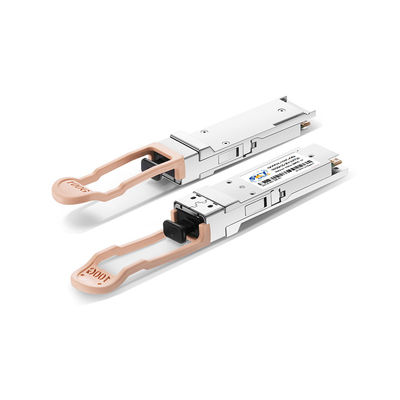

Hot Pluggable 100G Optical Transceiver QSFP28 SR4 Optical Module 100m On OM4
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Form Factor: | QSFP28 | Transmitter: | 850nm VCSEL Transmitter |
|---|---|---|---|
| Data Rate: | 100Gbps ( 25.78Gb/s Data Rate Per Channel ) | Power Supply: | 3.3V |
| Applications: | 100GBASE-SR4 100G Ethernet, Super-computing Interconnections, High-speed Interconnects | Max Optical Return Loss Tolerance: | 12dB |
| Receive Sensitivity In OMA, Each Lane: | -5.6dBm (Max ) | CDR: | With Built-in CDR |
| Highlight: | 100g optical transceiver qsfp28,hot pluggable 100g optical transceiver,qsfp28 100g transceiver |
||
Product Description
Hot Pluggable 100G QSFP28 SR4 Optical Module 100m with Built-in CDR and MPO Connector
Product Description:
The transmitter used in the 100G Optical Module is an 850nm VCSEL Transmitter, which provides efficient data transmission and ensures low power consumption. This makes it an ideal choice for high-speed network applications that require low power consumption. The module supports a variety of protocols, including Ethernet, Fibre Channel, and Infiniband, making it a versatile option for different types of networks.
The QSFP28 SR4 100G Optical Module is designed to operate at a power supply of 3.3V, which ensures reliable and stable performance. It is a QSFP28 SR4 Fiber Module that provides high-speed data transmission over short distances. The module has four parallel channels that support data rates of up to 25Gbps per channel, which results in a total data rate of 100Gbps.
The QSFP28 SR4 Fiber Optic Transceiver has a compact design that allows for high-density applications in data centers and other network environments. It is a reliable and cost-effective option for upgrading network infrastructure to support high-speed data transmission. The module is compliant with industry standards and has been tested for compatibility with a variety of network equipment.
Features:
- Product Name: QSFP28 SR4 100G Optical Module
- Data Rate: 100Gbps (25.78Gb/s Data Rate Per Channel)
- Hot Pluggable: Yes
- Fiber Type: Multi-mode
- Receive Power (OMA) per Lane: 3dBm (Max)
- Transmission Distance: 70m On OM3(MMF), 100m On OM4 (MMF)
Keywords: 100G Fiber Module, 100Gbps QSFP28 Transceiver, 100GBASE-SR4 Fiber Module
Technical Parameters:
| Product Name: | QSFP28 SR4 100G Optic Transceiver |
| Product Type: | QSFP28 SR4 100G Transceiver Module |
| Protocol: | Ethernet, Fibre Channel, Infiniband |
| Compatibility: | Multi-vendor |
| Wavelength: | 850nm |
| Transmitter: | 850nm VCSEL Transmitter |
| Power Dissipation: | Less Than 2.5W |
| Receive Power (OMA) per Lane: | 3dBm (Max) |
| Receive Sensitivity in OMA, each Lane: | -5.6dBm (Max) |
| Optical Extinction Ratio: | 3dB |
| Interface: | MPO Connector |
| Hot Pluggable: | Yes |
| Product Model: | QSFP28 SR4 Fiber Optic Transceiver |
Applications:
The QSFP28 SR4 100G Optical Module is a high-speed QSFP28 Gigabit Optical Transceiver that offers high bandwidth connectivity with maximum reliability and performance. It is designed with an MPO connector interface that allows for easy and quick installation in various networking environments. This product is compatible with 100GBASE-SR4 Ethernet and QSFP28 SR4 Optical Transponder applications, making it a versatile solution for various scenarios.
The QSFP28 SR4 100G Optical Module is an ideal choice for Super-computing Interconnections and High-speed Interconnects, where high-bandwidth and low-latency connectivity is critical. These applications require a reliable and efficient optical transceiver that can deliver high-speed data transfer rates of up to 100Gbps. With its 850nm wavelength and 3dBm (Max) Receive Power (OMA) per Lane, the 100G Optical Module delivers superior performance and reliability for these scenarios.
In addition, the 100G QSFP28 SR4 Optical Module is designed with a 3.3V power supply that ensures low power consumption while maintaining high performance. This feature makes it an ideal solution for data centers and other networking environments where power efficiency is critical. The QSFP28 form factor also makes it easy to integrate and accommodate in various networking devices and systems.
In summary, the 100G QSFP28 SR4 Optical Module is a reliable and efficient solution for high-speed networking scenarios that require high bandwidth, low latency, and superior performance. Its compatibility with various applications, including 100GBASE-SR4 Ethernet and QSFP28 SR4 Optical Transponder, makes it a versatile option for various networking environments. Its MPO connector interface, 850nm wavelength, 3dBm (Max) Receive Power (OMA) per Lane, 3.3V power supply, and QSFP28 form factor make it an ideal choice for data centers, super-computing interconnections, high-speed interconnects, and other similar scenarios.
