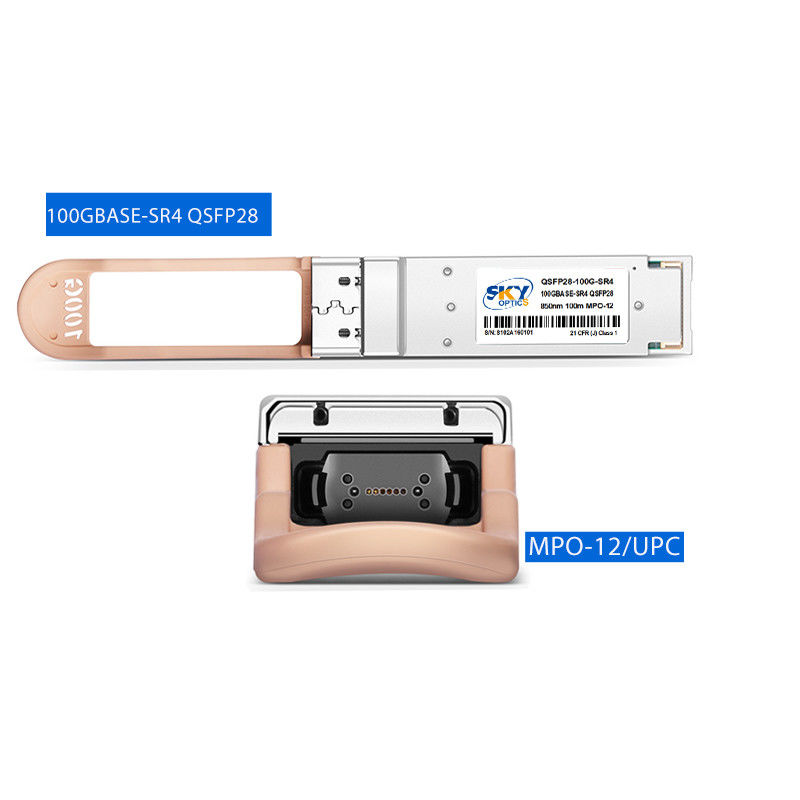

QSFP28 SR4 100G Optical Module 850nm Wavelength -8.4dBm-2.4dBm Transmit Average Power
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Max Optical Return Loss Tolerance: | 12dB | Transmit Average Power Per Lane: | -8.4dBm~2.4dBm |
|---|---|---|---|
| Power Supply: | 3.3V | Compatibility: | Multi-vendor |
| Wavelength: | 850nm | Interface: | MPO Connector |
| Transmission Distance: | 70m On OM3(MMF) ,100m On OM4 (MMF) | Fiber Type: | Multi-mode |
| Highlight: | sr4 100g optical module,100g optical module 850nm,850nm qsfp28 sr4 100g |
||
Product Description
Product Description:
The module is designed to operate in a wide range of temperatures, with an operating temperature range of 0°C to 70°C. This makes it ideal for use in a variety of environments, including data centers and other high-traffic networking environments.
With a maximum receive power (OMA) per lane of 3dBm, this module is capable of delivering high-quality, reliable data transmission over a multi-mode fiber optic cable. The QSFP28 SR4 Optical Transmitter is hot pluggable, making it easy to install and remove as needed.
Overall, the QSFP28100G SR4 Optical Module is an excellent choice for high-speed networking applications that require reliable, high-quality data transmission. Whether you're looking to upgrade your current network infrastructure or build a new network from scratch, this module is an excellent choice.
Features:
- Product Name: 100G QSFP28 SR4 Optical Module
- Transmit Average Power per Lane: -8.4dBm~2.4dBm
- Receive Power (OMA) per Lane: 3dBm (Max )
- Form Factor: QSFP28
- Wavelength: 850nm
- Hot Pluggable: Yes
This 100G Optical Module is a QSFP28 SR4 Optical Transponder with a transmit average power per lane ranging from -8.4dBm to 2.4dBm. It also has a receive power (OMA) per lane of 3dBm at its maximum. With a wavelength of 850nm, this hot pluggable module is ideal for high-speed data transmission.
Technical Parameters:
| Product Name | 100G QSFP28 SR4 Optical Network Unit |
| Form Factor | QSFP28 SR4 Optic Transceiver |
| Hot Pluggable | Yes |
| Transmitter | 850nm VCSEL Transmitter |
| Optical Extinction Ratio | 3dB |
| Interface | MPO Connector |
| Wavelength | 850nm |
| Power Dissipation | Less Than 2.5W |
| Transmission Distance | 70m On OM3(MMF), 100m On OM4 (MMF) |
| Applications | 100GBASE-SR4 100G Ethernet, Super-computing Interconnections, High-speed Interconnects |
| Protocols | Ethernet, Fibre Channel, Infiniband |
| Product Type | 100G Optical Transponder |
Applications:
This Hot Pluggable module can be easily inserted and removed from its socket, making it ideal for situations where quick upgrades or replacements are necessary. The transmission distance of this module is up to 70m on OM3(MMF) and 100m on OM4 (MMF).
The 100G QSFP28 SR4 Optical Module supports multiple protocols including Ethernet, Fibre Channel, and Infiniband, making it a versatile choice for a variety of applications. It can be used to connect servers, switches, and storage devices, and is ideal for high-speed data transfers, video streaming, and other data-intensive applications.
The Receive Power (OMA) per Lane of this module is 3dBm (Max), ensuring reliable and stable performance even in high-density environments. It is compatible with a wide range of devices and can be used in various scenarios, including data center interconnects, high-performance computing, and cloud computing applications.
In summary, the QSFP28 SR4 Optical Transponder is a high-speed, Hot Pluggable module that provides reliable and efficient data transmission for a variety of applications. With its MPO Connector interface, multiple protocol support, and long transmission distance, it is an excellent choice for any organization that requires high-speed data connectivity.
