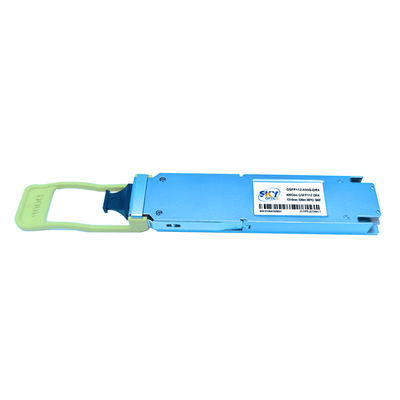

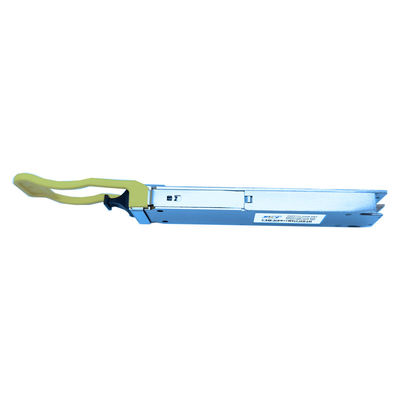

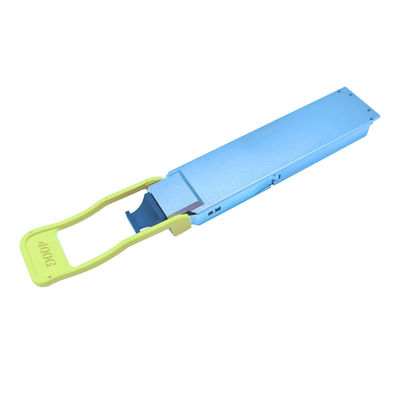

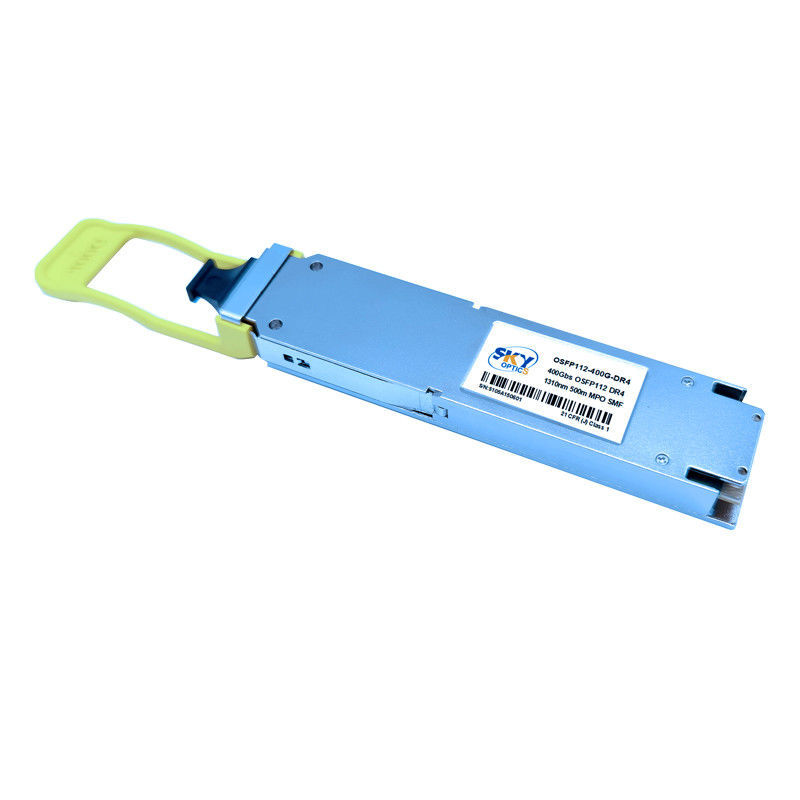

Wavelength 1310nm 400G Optical Module OSFP112 RHS DR4 Transceiver 12W
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Distance: | 500m (over SMF With KP4 FEC Supported At The Host Side) | Hot Pluggable: | Yes |
|---|---|---|---|
| Power Dissipation: | < 9W | Operating Temperature: | 0°C To 70°C |
| Max Power Consumption: | 12W | Form Factor: | OSFP112 RHS |
| Connector: | MPO-12 | Transmitter: | EML 1310nm |
| Highlight: | 400g optical module osfp112,osfp112 pluggable optical module,rhs 400g optical module |
||
Product Description
400G OSFP112 RHS DR4 Transceiver Stable Operation in Wide Temperature Range of 0°C to 70°C with Wavelength 1310nm
Product Description:
The 400G OSFP112 module operates at a wavelength of 1310nm and has a maximum power consumption of 12W. However, its power dissipation is less than 9W, which makes it energy-efficient and cost-effective. This module can transmit data over a distance of 500m over SMF with KP4 FEC supported at the host side, ensuring reliable data transfer over long distances.
This 400G OSFP112 module is designed to meet the requirements of the 400 Gigabit Ethernet standard, providing high-speed connectivity for demanding data center and cloud computing applications. Its compact form factor and low power consumption make it an ideal choice for high-density applications where space and power are at a premium.
With its high-speed data transfer capabilities, low power consumption, and reliable performance, the 400G OSFP112 module is a versatile and cost-effective solution for a wide range of data communication applications.
Features:
- Product Name: 400G Optical Module
- Operating Temperature: 0°C To 70°C
- Power Dissipation: < 9W
- Distance: 500m (over SMF With KP4 FEC Supported At The Host Side)
- Hot Pluggable: Yes
- 4x100G Ethernet supported
- OSFP112 RHS compatible
- 400G modules available
Technical Parameters:
| Data Rate | 400Gbps |
| Wavelength | 1310nm |
| Hot Pluggable | Yes |
| Operating Temperature | 0°C To 70°C |
| Fiber Type | Singlemode |
| Transmitter | EML 1310nm |
| Power Dissipation | < 9W |
| Max Power Consumption | 12W |
| Form Factor | OSFP112 RHS |
| Distance | 500m (over SMF With KP4 FEC Supported At The Host Side) |
Applications:
One of the standout features of this product is its low power dissipation, with a maximum power consumption of less than 9W. This makes it an energy-efficient choice for data center operators who are looking to reduce their energy costs and carbon footprint.
The 400G Optical Module is capable of transmitting data over a distance of 500m over single-mode fiber, with KP4 FEC supported at the host side. This makes it an excellent choice for large-scale data centers and networking environments where high-speed data transmission over long distances is required.
With a data rate of 400Gbps, the 400G Optical Module is a high-performance solution that can meet the demands of even the most data-intensive applications. It is ideal for use in applications such as cloud computing, big data analytics, and high-performance computing.
This product is also designed to operate in a wide range of temperatures, from 0°C to 70°C. This makes it suitable for use in a variety of environments, from air-conditioned data centers to harsh outdoor environments.
The 400G Optical Module features a PIN and TIA array receiver, which provides excellent signal quality and reliability. This ensures that data is transmitted accurately and reliably, even over long distances and in challenging environments.
The OSFP112 RHS, OSFP112 RHS DR4, and OSFP112 RHS DR4 are all excellent choices for the 400G Optical Module, depending on the specific requirements of your application. Whether you're looking for a high-speed, long-distance solution or a high-performance, energy-efficient option, the 400G Optical Module is the perfect choice.
