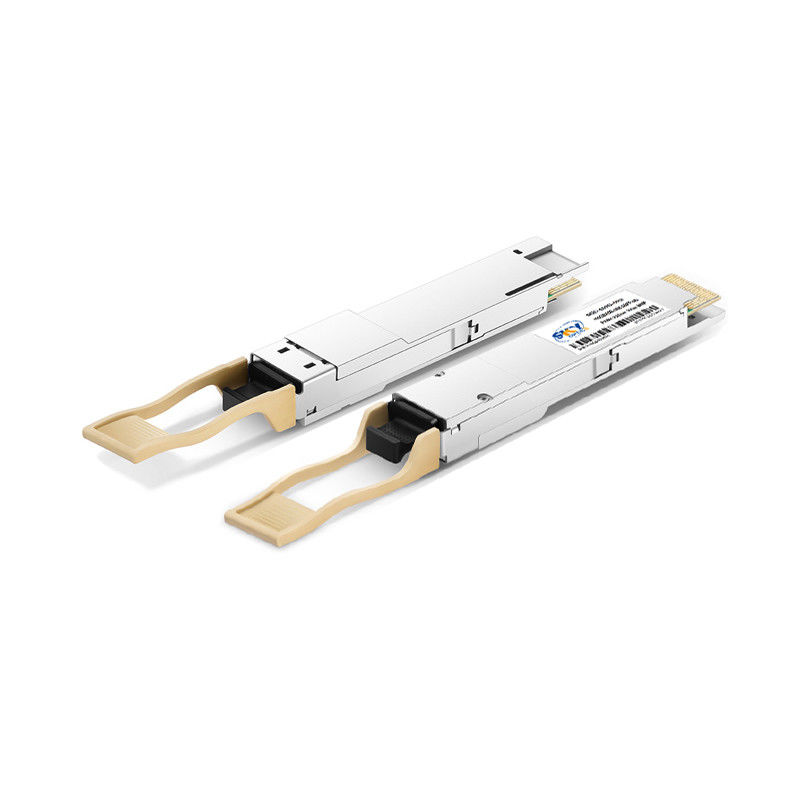

400G QSFP-DD SR8 Optical Network Transceiver Hot Pluggable 12W Power Consumption
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||

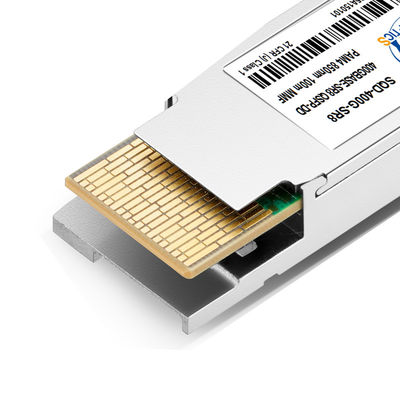

| Hot Pluggable: | Yes | Electrical Interface: | 8x53.125Gb/s (400GAUI-8) |
|---|---|---|---|
| Compliant: | QSFP-DD MSA IEEE 802.3bs | Power Consumption: | 12W (Maximum) |
| Application: | Enterprise Networking / 400G Ethernet / Data Center Interconnect / Infiniband Interconnects | Fiber Type: | MMF |
| Data Rate: | 400Gbps, 53.125Gbps (PAM4) Per Channel | Operating Temperature: | 0°C To 70°C |
| Highlight: | network transceiver hot pluggable,qsfp-dd network transceiver,network 400g qsfp-dd sr8 |
||
Product Description
Next-Generation Networks 400G SR8 Optical Transceiver with QSFP-DD Form Factor
Product Description:
This hot pluggable module is compliant with the QSFP-DD MSA IEEE 802.3bs standard, ensuring interoperability with a wide range of devices and systems. The 400G QSFP-DD Module is ideal for data centers and other high-performance computing environments where high-speed connectivity is essential.
The 400GBASE-SR8 standard is supported by this module, allowing for transmission over multimode fiber with a reach of up to 100 meters. This makes it an excellent choice for short-reach applications that require high data rates.
With a maximum power consumption of 12W, this module is energy-efficient and cost-effective. Its compact size and hot pluggable design make it easy to install and replace, ensuring minimal disruption to network operations.
In summary, the 400G Optical Module is a high-performance, reliable, and cost-effective solution for high-speed data transmission. Its compliance with industry standards, such as the QSFP-DD MSA IEEE 802.3bs, make it an excellent choice for a wide range of applications.
Features:
- Product Name: 400G Optical Module
- Data Rate: 400Gbps, 53.125Gbps (PAM4) Per Channel
- Compliant: QSFP-DD MSA IEEE 802.3bs
- Application: Enterprise Networking / 400G Ethernet / Data Center Interconnect / Infiniband Interconnects
- Operating Temperature: 0°C To 70°C
- Connector: MPO-16 Connector
Keywords: QSFP-DD SR8, QSFP-DD SR8 optical transceiver, 400 Gigabit Ethernet
Technical Parameters:
| Distance | 100M (OM3 With FEC) |
| Electrical Interface | 8x53.125Gb/s (400GAUI-8) |
| Wavelength | 850nm |
| Hot Pluggable | Yes |
| Data Rate | 400Gbps, 53.125Gbps (PAM4) Per Channel |
| Operating Temperature | 0°C To 70°C |
| Connector | MPO-16 Connector |
| Power Consumption | 12W (Maximum) |
| Form Factor | QSFP-DD |
| Application | Enterprise Networking / 400G Ethernet / Data Center Interconnect / Infiniband Interconnects |
Applications:
The 400G Optical Module is a high-speed, high-performance transceiver that is ideal for use in data centers, enterprise networks, and telecommunications applications. With a power consumption of up to 12W, it is a low-power solution that can help reduce energy costs and minimize heat dissipation. This makes it a great choice for use in high-density environments where space and power are at a premium.
The 400G Optical Module is a QSFP-DD SR8 optical transceiver that is designed to deliver high-speed data transfer rates of up to 400Gbs. It uses an electrical interface of 8x53.125Gb/s (400GAUI-8) and has a wavelength of 850nm. This makes it an ideal choice for use in applications that require high-bandwidth, low-latency data transfer, such as cloud computing, big data analytics, and high-performance computing (HPC).
The 400G Optical Module is designed to operate in a wide range of temperatures, from 0°C to 70°C. This makes it suitable for use in a variety of environments, from data centers to telecommunications networks. It is also capable of transmitting data over a distance of up to 100M (OM3 with FEC), which makes it suitable for use in a variety of applications.
In summary, the 400G Optical Module is a high-performance, low-power solution that is ideal for use in a wide range of data center, enterprise, and telecommunications applications. Its high-speed data transfer rates, wide operating temperature range, and long transmission distance make it a versatile and reliable choice for any application that requires high-bandwidth, low-latency data transfer.
