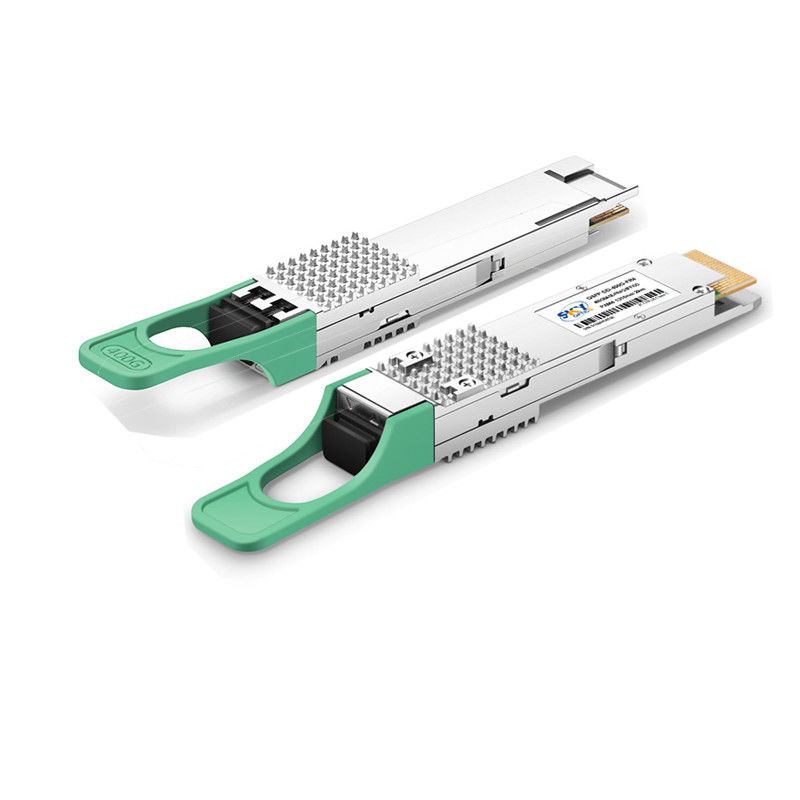

SMF Fiber Type 400G Optical Module FR4 QSFP-DD Optical Transceiver 2KM Hot Pluggable
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Fiber Type: | SMF | Wavelength: | 4 CWDM Channels ( 1271, 1291, 1311 And 1331 Nm) |
|---|---|---|---|
| Electrical Interface: | 8x53.125Gb/s (400GAUI-8) | Operating Temperature: | 0°C To 70°C |
| Connector: | Duplex LC | Power Supply: | 3.3V |
| Distance: | 2km ( With FEC) | Application: | 400G Ethernet / Data Center Interconnect / Infiniband Interconnects |
| Highlight: | qsfp-dd optical transceiver,400g optical module 2km,smf 400g optical module |
||
Product Description
Speed Data Transmission SMF Fiber Type 400G FR4 QSFP-DD Optical Transceiver 2KM with Hot Pluggable Design
Product Description:
The 400G Optical Module is a QSFP-DD module that provides high-density and low-power 400G Ethernet connectivity. The QSFP-DD module has a compact Form Factor that allows for hot-pluggable installation and easy maintenance.
The 400G Optical Module is compliant with the 400GBASE-FR4 standard, providing reliable and efficient 400G Ethernet connectivity. The module is ideal for use in Data Centers, High-Performance Computing (HPC) environments, and other high-speed networking applications.
The 400G QSFP-DD module is designed for high-bandwidth applications that require fast data transfer rates and low latency. The module supports a wide range of protocols and applications, including Ethernet, Infiniband, and other high-speed networking technologies.
The 400G Optical Module is a reliable and cost-effective solution for upgrading existing networks to support high-speed 400G connectivity. With its advanced features and high-performance capabilities, the module is an ideal choice for businesses and organizations that require fast and reliable networking solutions.
Features:
- Product Name: 400G QSFP-DD FR4 Optical Module
- Connector: Duplex LC
- Wavelength: 4 CWDM Channels (1271, 1291, 1311 And 1331 nm)
- Application: 400G Ethernet / Data Center Interconnect / Infiniband Interconnects
- Data Rate: 400Gbps, 106.25Gbps (PAM4) Per Channel
- Power Consumption: 12W (Maximum)
Keywords: 400Gbs QSFP-DD, 400G modules, 400G QSFP-DD transceiver
Technical Parameters:
| Wavelength | 4 CWDM Channels (1271, 1291, 1311 and 1331 nm) |
| Distance | 2km (with FEC) |
| Electrical Interface | 8x53.125Gb/s (400GAUI-8) |
| Fiber Type | SMF |
| Power Consumption | 12W (maximum) |
| Data Rate | 400Gbps, 106.25Gbps (PAM4) per channel |
| Power Supply | 3.3V |
| Application | 400G Ethernet / Data Center Interconnect / Infiniband Interconnects/ Enterprise networking |
| Form Factor | QSFP-DD |
| Hot Pluggable | Yes |
Applications:
The QSFP-DD FR4 optical module is designed to deliver high-speed connectivity with four CWDM channels at 1271, 1291, 1311 and 1331 nm wavelengths. This makes it an ideal solution for scenarios that require high-speed, long-distance connections, such as data center interconnects and high-performance computing environments.
Whether you need to connect multiple servers or link two data centers, our 400G Optical Module is the perfect choice. It is a Quad Small Form Factor Pluggable-double density (QSFP-DD) optical module that provides reliable, high-speed connectivity for a wide range of applications.
With its hot-pluggable design, the QSFP-DD FR4 optical module is easy to install and use. You can quickly and easily connect it to your network without any special tools or equipment. And because it is hot-pluggable, you can add or remove it from your network without shutting down your system.
So if you're looking for a high-speed connectivity solution that is reliable, flexible and easy to use, our 400G Optical Module is the perfect choice. Whether you need to connect servers, storage devices or other network equipment, this optical module will provide the speed and reliability you need to keep your system running smoothly.
Support and Services:
The 400G Optical Module is a high-speed optical transceiver designed for use in data centers and other high-performance computing applications. It provides reliable, high-bandwidth connectivity over both single-mode and multi-mode fiber optic cables, with support for a range of industry-standard protocols including Ethernet, InfiniBand, and Fibre Channel.
Our product technical support and services for the 400G Optical Module include:
- Expert technical assistance and troubleshooting support, including remote diagnostics and on-site repair services
- Comprehensive product documentation and user manuals, including installation guides, configuration instructions, and best practices for optimal performance
- Regular software updates and firmware upgrades, ensuring that your 400G Optical Module is always running on the latest and most secure software
- 24/7 customer service and support, with dedicated account managers and technical specialists available to assist you with any issues or questions you may have
Whether you are deploying the 400G Optical Module in a new installation or upgrading an existing network, our technical support and services team is here to help you every step of the way. Contact us today to learn more about how we can help you get the most out of your 400G Optical Module.
