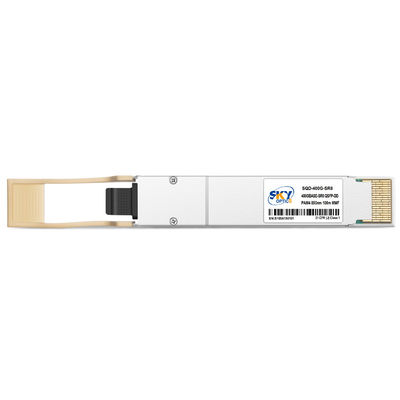

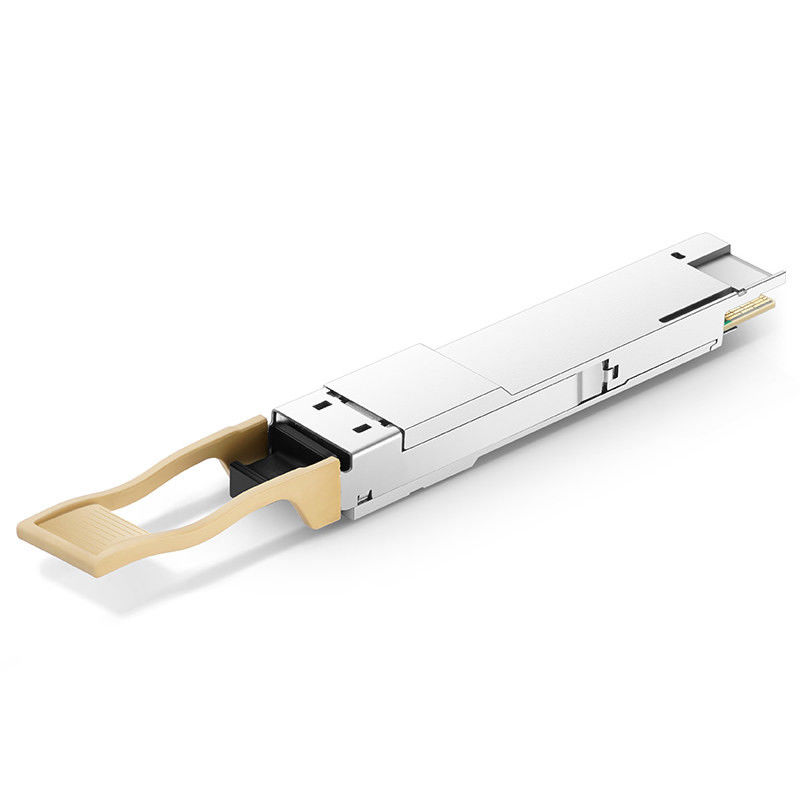

QSFP-DD SR8 400G Optical Module With 8x53.125Gb/S 400GAUI-8 Electrical Interface
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Connector: | MPO-16 Connector | Data Rate: | 400Gbps, 53.125Gbps (PAM4) Per Channel |
|---|---|---|---|
| Electrical Interface: | 8x53.125Gb/s (400GAUI-8) | Fiber Type: | MMF |
| Application: | Enterprise Networking / 400G Ethernet / Data Center Interconnect / Infiniband Interconnects | Compliant: | QSFP-DD MSA IEEE 802.3bs |
| Distance: | 100M (OM3 With FEC) | Hot Pluggable: | Yes |
| Highlight: | sr8 400g optical module,qsfp-dd 400gaui-8,qsfp-dd 400g optical module |
||
Product Description
400G QSFP-DD SR8 Experience Unmatched Data Transfer with 400G Transceiver 8x53.125Gb/s 400GAUI-8 Electrical Interface
Product Description:
With its hot pluggable feature, users can easily insert or remove the module without having to shut down the entire system. This makes it a convenient and efficient solution for businesses that require high-speed connectivity.
The 400G optical module is a reliable and high-performance component that can support a wide range of networking applications. Its QSFP-DD module design allows for greater port density and flexibility in system design. Whether you're looking to upgrade your existing network or build a new one from scratch, this optical module is a great choice for your high-speed networking needs.
Features:
- Product Name: 400G Optical Module
- Electrical Interface: 8x53.125Gb/s (400GAUI-8)
- Application: Enterprise Networking / 400G Ethernet / Data Center Interconnect / Infiniband Interconnects
- Hot Pluggable: Yes
- Form Factor: QSFP-DD
- Connector: MPO-16 Connector
This 400G Optical Module is a high-speed transceiver with an electrical interface of 8x53.125Gb/s (400GAUI-8). It is designed for various applications such as Enterprise Networking, 400 Gigabit Ethernet, Data Center Interconnect, and Infiniband Interconnects. This module is hot pluggable and has a form factor of QSFP-DD with an MPO-16 Connector.
Technical Parameters:
| Operating Temperature | 0°C To 70°C |
| Form Factor | QSFP-DD |
| Data Rate | 400Gbps, 53.125Gbps (PAM4) Per Channel |
| Fiber Type | MMF |
| Electrical Interface | 8x53.125Gb/s (400GAUI-8) |
| Hot Pluggable | Yes |
| Compliant | QSFP-DD MSA IEEE 802.3bs |
| Connector | MPO-16 Connector |
| Distance | 100M (OM3 With FEC) |
| Application | Enterprise Networking / 400G Ethernet / Data Center Interconnect / Infiniband Interconnects |
Applications:
This 400G optical transceiver is compliant with the QSFP-DD MSA and IEEE 802.3bs standards, ensuring that it will be compatible with a wide range of networking equipment. Its electrical interface is 8x53.125Gb/s (400GAUI-8), providing fast and reliable data transmission speeds.
Some of the key application occasions and scenarios for the 400G optical module include enterprise networking, 400 Gigabit Ethernet, data center interconnect, and Infiniband interconnects. In enterprise networking environments, this module can be used to connect servers, switches, and other networking equipment. In data center interconnect scenarios, it can be used to connect data centers together, providing high-speed data transfer between locations.
For those in need of 400G Ethernet, this optical module provides a reliable and efficient solution. Its high-speed data transmission capabilities make it ideal for use in high-performance computing environments, as well as in telecommunications and other industries.
Finally, in Infiniband interconnect scenarios, the 400G optical module can be used to connect high-performance computing systems together, providing fast and reliable data transfer between nodes.
