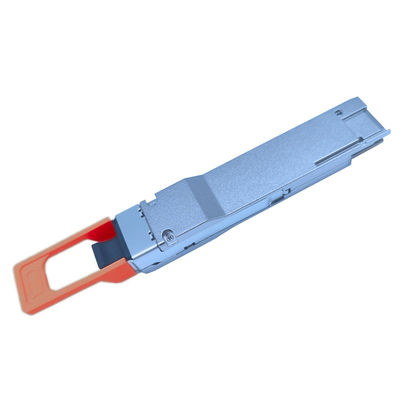

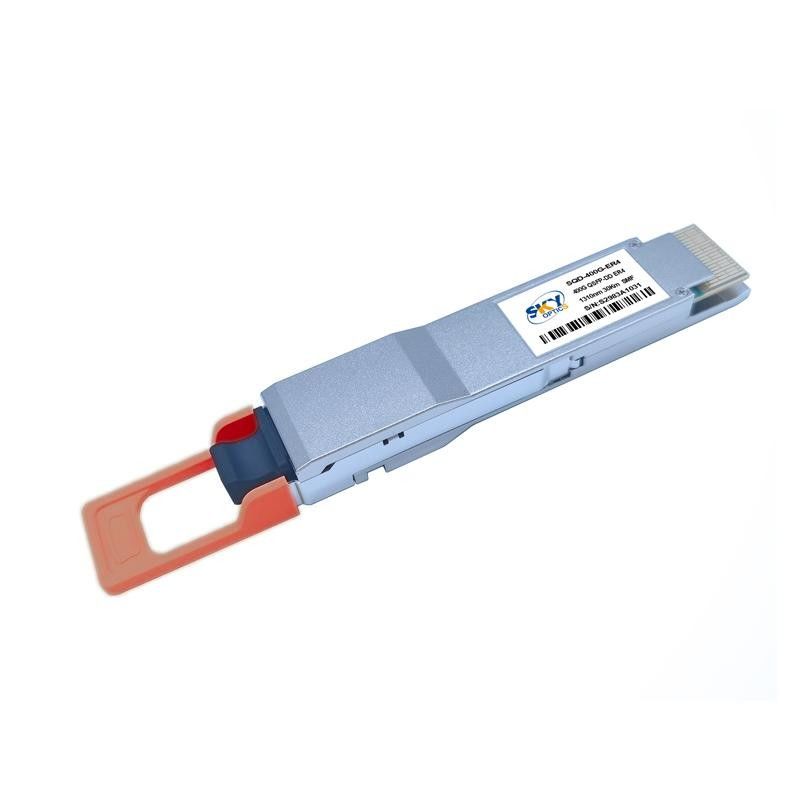

QSFP-DD 400G ER4 Optical Transceiver 30km 1304.58nm 1309.14nm Wavelength
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Connector: | Duplex LC | Fiber Type: | SMF |
|---|---|---|---|
| Total Average Launch Power: | 14.7dBm | Application: | 400G Ethernet / Data Center Interconnect / Infiniband Interconnects |
| Hot Pluggable: | Yes | Data Rate: | 400Gbps, 106.25Gbps (PAM4) Per Channel |
| Form Factor: | QSFP-DD | Power Consumption: | 12W (Maximum) |
| Highlight: | qsfp-dd 400g er4,optical transceiver 30km,qsfp-dd optical transceiver |
||
Product Description
400G QSFP-DD ER4 30km Optical Transceiver at 1304.58 And 1309.14nm Wavelength Total Average Launch Power 14.7dBm for Your Requirements
Product Description:
The 400G Optical Module has a total average launch power of 14.7dBm, which ensures high performance and efficiency. It also has a distance capability of up to 30km (With FEC), making it ideal for long-distance communication. The module is equipped with advanced features that ensure reliable and stable data transmission even in harsh environments.
The QSFP-DD module is easy to install and operate, making it an ideal choice for high-speed network applications. It is compatible with a wide range of devices and can be used in various applications, including data centers, telecommunications, and enterprise networks. The module is designed to meet the highest standards of quality and reliability, ensuring that it performs optimally in all conditions.
Overall, the 400G Optical Module is a high-performance, reliable, and efficient QSFP-DD module that is ideal for high-speed data transmission. Its advanced features and capabilities make it an excellent choice for a wide range of applications, including 400G Ethernet, Data Center Interconnect, and Infiniband Interconnects.
Features:
- Product Name: 400G Optical Module
- Operating Temperature: 0°C To 70°C
- Form Factor: QSFP-DD
- Electrical Interface: 8x53.125Gb/s (400GAUI-8)
- Hot Pluggable: Yes
- Application: 400G Ethernet / Data Center Interconnect / Infiniband Interconnects
- Features: QSFP-DD ER4, 400 Gigabit Ethernet, 400G QSFP-DD Module
Technical Parameters:
| Attribute | Value |
|---|---|
| Fiber Type | SMF |
| Total Average Launch Power | 14.7dBm |
| Modulation Format | PAM4 |
| Hot Pluggable | Yes |
| Application | 400G Ethernet / Data Center Interconnect / Infiniband Interconnects |
| Power Consumption | 12W (Maximum) |
| Connector | Duplex LC |
| Damage Receiver Power, each lane | -2.4dBm |
| Wavelength | 4 LAN WDM Channels (1295.56, 1300.05, 1304.58 And 1309.14nm) |
| Power Supply | 3.3V |
Applications:
The 400G QSFP-DD optical transceiver can transmit data at a speed of 400Gbps, making it ideal for use in 400 Gigabit Ethernet (GbE) networks. The product supports a distance of up to 30km with Forward Error Correction (FEC) and can deliver a total average launch power of 14.7dBm.
The product's damage receiver power, each lane is -2.4dBm, which ensures that it can function effectively even in challenging environments. Moreover, the 400G QSFP-DD optical transceiver uses 106.25Gbps (PAM4) per channel, which enables it to transmit data at high speeds while maintaining low power consumption.
The 400G QSFP-DD optical transceiver is suitable for a wide range of applications, such as data centers, telecommunications, and enterprise networks. For instance, this product can be used in high-performance computing clusters to facilitate data transfer between servers. It can also be used in cloud computing applications to provide high-speed connectivity between data centers and end-users.
Overall, the 400G QSFP-DD optical transceiver is an ideal solution for organizations that require a high-speed and high-capacity optical transceiver for their network infrastructure. With its compact form factor, high-speed data transmission, and long-distance support, this product can help organizations achieve their business objectives by facilitating efficient data transfer and reducing network latency.
FAQ:
Q: What is the data rate of the QSFP-DD ER4 Optical Module?
A: The QSFP-DD ER4 Optical Module has a data rate of 400 Gbps.
Q: What is the form factor of the 400G ER4 Optical Module?
A: The form factor of the 400G ER4 Optical Module is QSFP-DD.
Q: What type of fiber does the 400G Optical Module support?
A: The 400G Optical Module supports single-mode fiber.
Q: What is the maximum transmission distance of the 400G QSFP-DD ER4 Optical Module?
A: The maximum transmission distance is 30 kilometers.
Q: What is the operating temperature range of the 400G QSFP-DD ER4 Optical Module?
A: The operating temperature range is between 0°C and 70°C.
