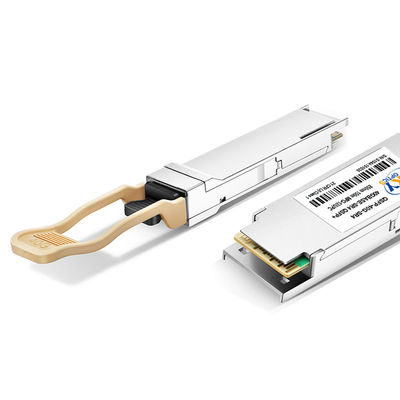

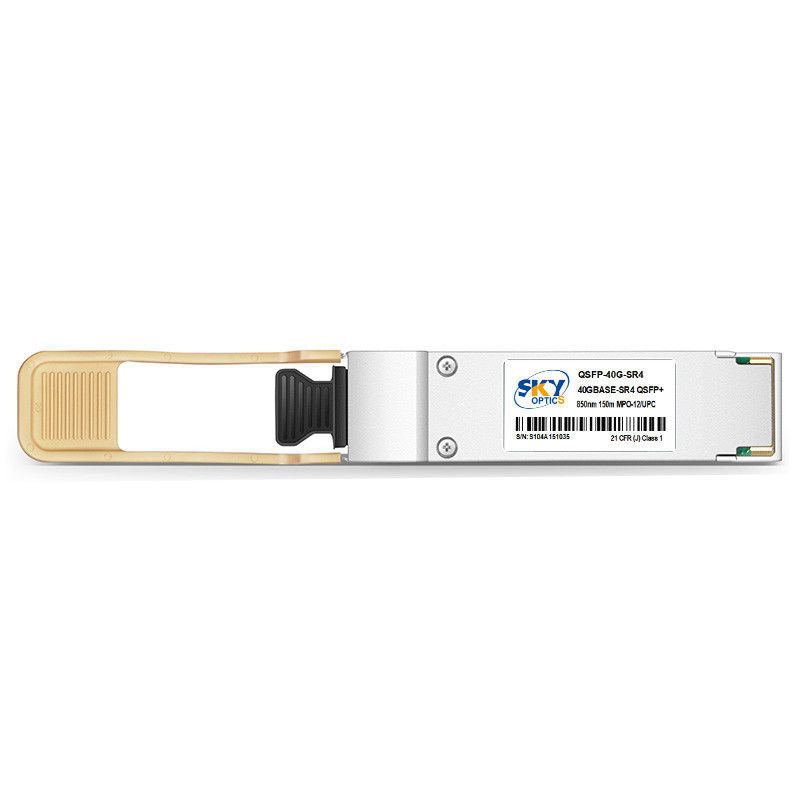

Short Range 40G Optical Module 850nm Data Rate 40Gbps 10.3125Gb/s Data Rate Per Channel
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Max LOS De-Assert: | -12dBm | Monitoring: | DDM/DOM |
|---|---|---|---|
| Transmitter: | 4 Channels 850nm VCSEL Array | Transmission Distance: | 100m OM3, 150m OM4 |
| Wavelength: | 850nm | Form Factor: | Hot Pluggable QSFP+ Form Factor |
| Average Launch Power, Each Lane: | -7.6dBm~2.4dBm | Power Supply: | 3.3V |
| Highlight: | 40g optical module 850nm,short range 40g optical module,850nm qsfp+ optical module |
||
Product Description
Experience Unmatched Data Transfer Speed with 40 Gbps Optical Module Data Rate 40Gbps 10.3125Gb/s Data Rate Per Channel
Product Description:
The receiver of this module features 4 channels PIN photo detector array, which ensures reliable and high-speed data transfer. This module also features DDM/DOM monitoring, which allows for real-time monitoring of module parameters such as optical output power, voltage, temperature, and laser bias current.
The 40G QSFP SR4 Optical Module is designed to operate in a temperature range of 0°C to 70°C, making it suitable for use in a variety of environments. It is compliant with the QSFP MSA (Multi-Source Agreement) and IEEE 802.3ba standards and is hot-swappable, which means it can be replaced or removed without affecting the performance of the system.
This module is ideal for use in high-performance computing, cloud computing, and data center applications where high-speed and reliable data transfer is essential. It is also suitable for use in high-bandwidth applications such as video streaming, high-speed data transfer, and storage area networks.
In summary, the 40G QSFP SR4 Optical Module is a reliable and high-speed solution for data communication and telecommunication applications. It features a 4 channel PIN photo detector array, DDM/DOM monitoring, a transmission distance of 100m OM3 and 150m OM4, an operating temperature range of 0°C to 70°C, and a data rate of 40Gbps using 10.3125Gb/s data rate per channel.
Features:
- Product Name: 40G Short-Range Optical Module
- Power Supply: 3.3V
- Data Rate: 40Gbps (10.3125Gb/s Data Rate Per Channel)
- Transmitter: 4 Channels 850nm VCSEL Array
- Receiver: 4 Channels PIN Photo Detector Array
- Application: 40GBASE-SR4 Ethernet, Switch, Router, HBAs, Infiniband Transmission At 4 Channels SDR, DDR And QDR, Proprietary Protocol Applications
- Product Type: QSFP+ SR4 module
- Product Name: 40G QSFP Module
Technical Parameters:
| Product Attribute | Technical Parameter |
| Product Name | 40Gbase-SR4 module |
| Product Type | 40G Optical Transceiver Module |
| Compatibility | Cisco/ HP/ Juniper/ Alcatel-Lucent |
| Wavelength | 850nm |
| Data Rate | 40Gbps (10.3125Gb/s Data Rate Per Channel) |
| Transmission Distance | 100m OM3, 150m OM4 |
| Application | 40GBASE-SR4 Ethernet, Switch, Router, HBAs, Infiniband Transmission At 4 Channels SDR, DDR And QDR, Proprietary Protocol Applications |
| Connector Type | Single MPO Connector |
| Monitoring | DDM/DOM |
| Fiber Type | Multimode |
| Transmitter | 4 Channels 850nm VCSEL Array |
| Product Code | 40G QSFP Pluggable Module |
| Operating Temperature | 0°C To 70°C |
Applications:
The hot-swappable feature of this 40G Optical Module makes it easy to install and remove without the need to shut down the network. This feature ensures minimal downtime, which is crucial in maintaining network uptime. The product is compatible with Cisco, HP, Juniper, Alcatel-Lucent, and other network devices, making it a versatile solution for various networking and data center needs.
The 40G Optical Module is designed to meet the demands of high-speed data transmission in various application scenarios. It can be used for high-performance computing, cloud computing, data centers, and other high-bandwidth applications. It's an ideal solution for businesses that require high-speed data transmission rates, reliability, and scalability.
The product's single MPO connector type makes it easy to connect to other networking devices. The connector type is a standard connector used in various networking devices, making it compatible with most networking devices. It's also easy to install and remove, making it a convenient solution for various networking and data center needs.
In conclusion, the 40G Optical Module is a versatile and reliable solution for various networking and data center applications. Its high-speed data transmission rates, hot-swappable feature, compatibility with various network devices, and single MPO connector type make it an ideal solution for businesses that require high-speed data transmission rates, reliability, and scalability.
