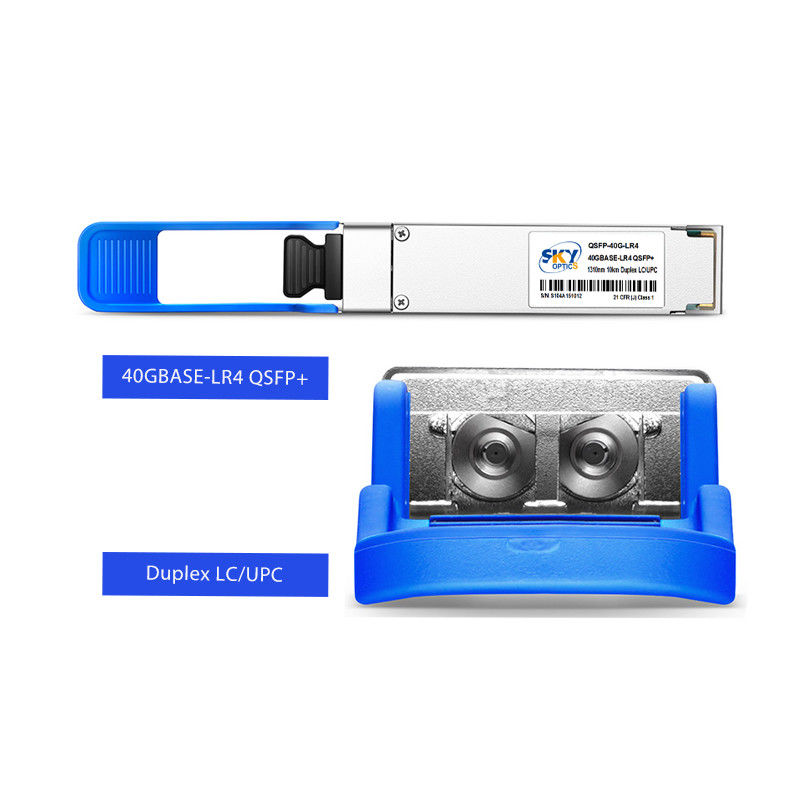

Hot Swappable QSFP LR4 40G Optical Module With Infiniband QDR And DDR Interconnects
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Data Rate: | 40Gbps (10.3125Gb/s Data Rate Per Channel) | Operating Temperature: | 0°C To 70°C |
|---|---|---|---|
| Form Factor: | Hot Pluggable QSFP+ Form Factor | Compatibility: | Cisco/ Juniper / Multi-brand Compatible |
| Extinction Ratio: | -3.5dB | Max LOS De-Assert: | -9.9dBm |
| Average Launch Power, Each Lane: | -7dBm~2.3dBm | Compliant: | IEEE802.3ba, SFF-8436 |
| Highlight: | hot swappable 40g optical module,hot swappable qsfp+ optical module,cisco 40g optical module |
||
Product Description
Speed 40 Gbps Optical Module with Infiniband QDR And DDR Interconnects and Duplex LC Connector
Product Description:
The 40G QSFP LR4 Optical Module has an average launch power of -7dBm~2.3dBm and an extinction ratio of -3.5dB. These features make it ideal for use in data centers and other high-bandwidth applications that require reliable and high-speed connectivity. The module also features a Hot Pluggable QSFP+ Form Factor, which makes it easy to install and remove without disrupting the rest of the network.
Overall, the 40G QSFP Optical Module is a versatile and reliable optical transceiver that can help improve the performance and efficiency of your network. Whether you need to connect servers, switches, or other devices, this module can provide the high-speed connectivity you need to keep your business running smoothly.
Features:
- Product Name: 40G Optical Module
- Monitoring: DDM/DOM
- Extinction Ratio: -3.5dB
- Hot Swappable: Yes
- Compliant: IEEE802.3ba, SFF-8436
- Average Launch Power, each Lane: -7dBm~2.3dBm
This 40G Hot-Pluggable Optical Module, also known as 40G QSFP transceiver or QSFP+ LR4 module, has the following features:
Technical Parameters:
| Product | 40 Gbps Optical Module |
| Product Name | 40G Long-Wavelength Optical Module |
| Ethernet Standard | 40GBASE-LR4 Ethernet |
| Max LOS De-Assert | -9.9dBm |
| Distance | 10km |
| Fiber Type | Singlemode |
| Operating Temperature | 0°C To 70°C |
| Compatibility | Cisco/ Juniper / Multi-brand Compatible |
| Connector Type | Duplex LC Connector |
| Average Launch Power, each Lane | -7dBm~2.3dBm |
| Monitoring | DDM/DOM |
| Extinction Ratio | -3.5dB |
| Form Factor | Hot Pluggable QSFP+ Form Factor |
Applications:
The 40G QSFP LR4 Optical Module is compatible with a range of devices, including Cisco, Juniper, and other multi-brand devices, making it a versatile choice for a variety of applications.
Designed for use in high-performance data center applications, this QSFP+ LR4 module is capable of transmitting data at speeds of up to 40G, making it an excellent choice for demanding scenarios that require high-speed data transfer.
With a maximum LOS De-Assert of -9.9dBm, this QSFP+ LR4 module provides reliable and consistent transmission over long distances, making it an excellent choice for use in enterprise-level networks and other high-performance applications.
The 40G QSFP LR4 is powered by a 3.3V power supply, ensuring efficient and reliable performance.
Whether you're looking to transmit data over long distances, connect multiple devices in a high-performance network, or simply upgrade your existing infrastructure, the 40G QSFP LR4 Optical Module is the ideal solution for your needs.
Some of the product application occasions and scenarios for the 40G QSFP LR4 Optical Module include:
- High-performance data center applications
- Enterprise-level networks
- Telecommunications networks
- Cloud computing environments
- High-speed computing applications
- Large-scale data transfer
- Video and audio transmission
- And much more
