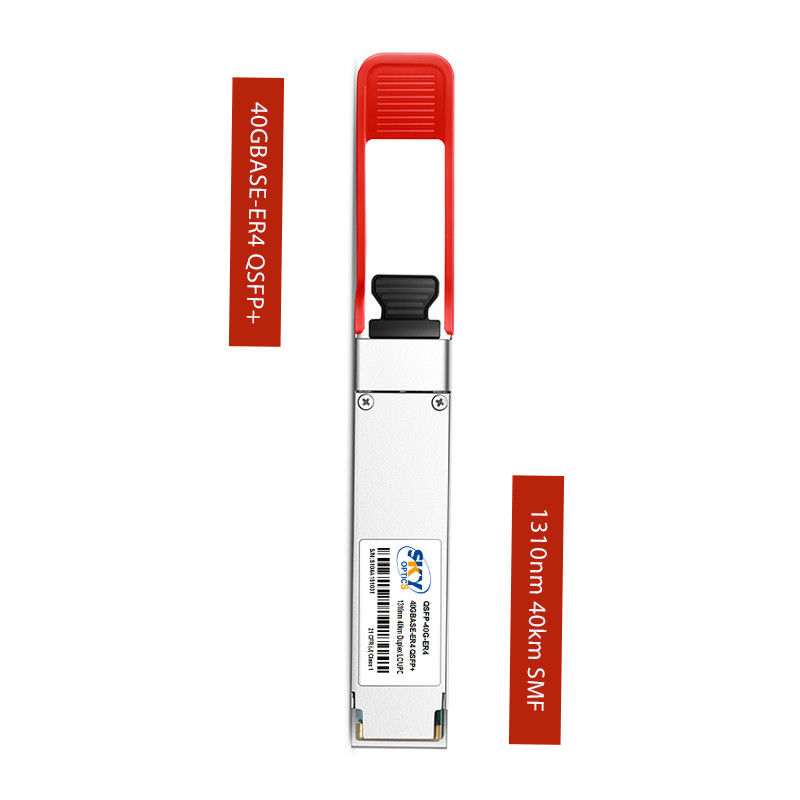

Hot Swappable 1310nm 40G Optical Transceiver QSFP+ ER4 With Duplex LC Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Hot Swappable: | Yes | Receive Power (OMA), Each Lane: | -4dBm |
|---|---|---|---|
| Average Launch Power, Each Lane: | -2.7dBm~4.5dBm | Fiber Type: | Singlemode |
| Operating Temperature: | 0°C To 70°C | Wavelength: | 1310nm (4 CWDM Lanes MUX/DEMUX) |
| Connector Type: | Duplex LC Connector | Compliant: | IEEE802.3ba, SFF-8436 |
| Highlight: | 1310nm 40g optical transceiver,1310nm 40g optical module,hot swappable 40g optical module |
||
Product Description
Receive Power OMA -4dBm 40G Optical Transceiver QSFP+ ER4 Module with Duplex LC Connector
Product Description:
This 40G QSFP+ ER4 Optical Transceiver Module operates on a 3.3V power supply, consuming a maximum of 3.5W. It is highly efficient, with an average launch power of -2.7dBm~4.5dBm per lane. This makes it ideal for high-speed data transmission in data centers, telecommunications networks, and other enterprise-level applications.
With its advanced features and high-quality construction, the 40G QSFP ER4 Optical Module provides reliable, high-speed connectivity for even the most demanding network environments. Whether you need to connect servers, storage devices, or other network equipment, this optical transceiver module delivers the performance and reliability you need.
Features:
- Product Name: 40G QSFP+ ER4 Optical Module
- Data Rate: 40Gbps (10.3125Gb/s Data Rate Per Channel)
- Form Factor: Hot Pluggable QSFP+ Form Factor
- Application: 40GBASE-ER4 Ethernet, Infiniband QDR and DDR Interconnects, Client-side 40G Telecom Connections
- Extinction Ratio: -3.5dB
- Monitoring: DDM/DOM
Introducing the 40G QSFP+ ER4 Module, this 40G QSFP+ ER4 Optical Module has a data rate of 40Gbps and comes in a hot pluggable QSFP+ form factor. It is ideal for applications such as 40GBASE-ER4 Ethernet, Infiniband QDR and DDR Interconnects, and client-side 40G telecom connections. With an extinction ratio of -3.5dB and monitoring capabilities through DDM/DOM, this module is a reliable and efficient choice for your networking needs.
Technical Parameters:
| Product Attribute | Value |
|---|---|
| Product Name | 40G QSFP ER4 Optical Module |
| Data Rate | 40Gbps (10.3125Gb/s Data Rate Per Channel) |
| Wavelength | 1310nm (4 CWDM Lanes MUX/DEMUX) |
| Distance | 40km |
| Receiver Sensitivity (OMA), each Lane | -19dBm |
| Receive Power (OMA), each Lane | -4dBm |
| Extinction Ratio | -3.5dB |
| Compliant | IEEE802.3ba, SFF-8436 |
| Monitoring | DDM/DOM |
| Hot Swappable | Yes |
| Operating Temperature | 0°C To 70°C |
Applications:

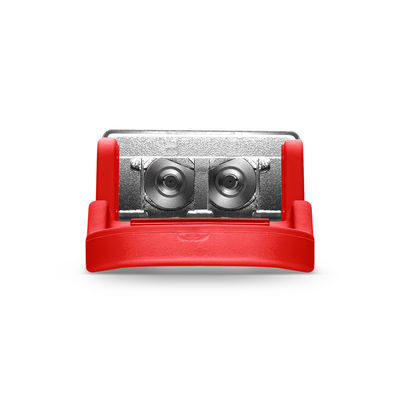

The module is equipped with a Duplex LC Connector, allowing for easy and secure connection to your network equipment. It also has a range of up to 40km, making it suitable for long-distance data transmission needs. And with hot swappable capabilities, you can replace or install the module without disrupting your network connectivity.
The 40G QSFP+ ER4 Optical Module is designed to operate at a wavelength of 1310nm, with 4 CWDM Lanes MUX/DEMUX capabilities. This makes it a versatile option for a range of networking scenarios, including data center interconnects, campus networks, and metropolitan area networks.
Whether you need to transmit large amounts of data over long distances, or simply require a high-speed connection for your network, our 40G QSFP+ ER4 Optical Transceiver Module is the ideal choice. With its energy efficiency, secure connection, and long-range capabilities, you can trust it to deliver the performance you need.
