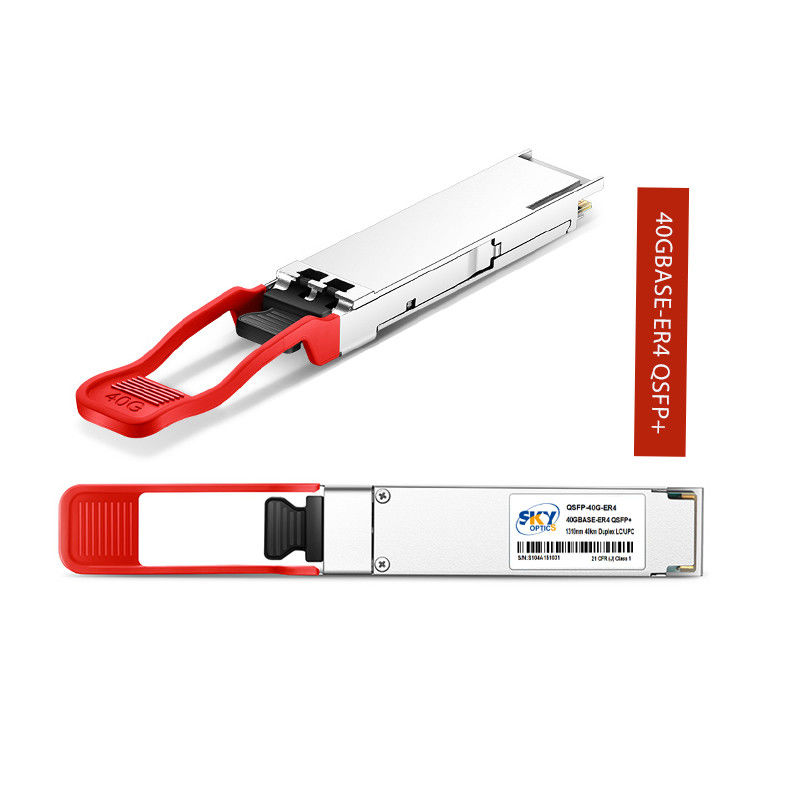

40 Gbps QSFP+ ER4 Optical Module For Cisco/ Juniper / Multi- Compatibility

Product Description:

The 40G QSFP+ ER4 transceiver is designed to work with singlemode fiber, which enables longer transmission distances than multimode fiber. The module is capable of transmitting data up to a distance of 40km, making it ideal for long-haul networking applications.

This 40G QSFP+ ER4 transceiver also features an extinction ratio of -3.5dB, which ensures that the transmitted signal is free from distortion and noise. This makes it ideal for use in high-speed data transfer applications where signal quality is of utmost importance.

The 40G QSFP+ ER4 transceiver is hot-swappable, which means that it can be replaced or added to a network without powering down the entire system. This makes it easy to upgrade or expand a network without causing downtime or interruptions.

In summary, the 40G QSFP+ ER4 transceiver is a high-speed, reliable, and efficient optical module that is designed to provide a data transfer rate of 40 Gbps over a distance of 40km. Its operating temperature range of 0°C to 70°C and hot-swappable feature make it a versatile solution for various networking applications.

Features:

• Product Name: 40G QSFP+ ER4 Optical Module
• Operating Temperature: 0°C To 70°C
• Connector Type: Duplex LC Connector
• Application: 40GBASE-ER4 Ethernet, Infiniband QDR And DDR Interconnects,Client-side 40G Telecom Connections
• Data Rate: 40Gbps (10.3125Gb/s Data Rate Per Channel)
• Compliant: IEEE802.3ba, SFF-8436

The QSFP+ ER4 transceiver, 40G QSFP+ ER4 Optical Transceiver Module, and QSFP+ ER4 module are all terms that can be used to describe this product.

Technical Parameters:

Applications:

One of the key strengths of this 40G QSFP ER4 Optical Module is its data rate of 40Gbps, with a 10.3125Gb/s data rate per channel. This makes it ideal for high-bandwidth applications that require fast, reliable data transfer, such as data centers, telecommunications networks, and other high-performance computing environments.

In terms of form factor, the 40G QSFP ER4 Optical Module is designed with a hot pluggable QSFP+ form factor, which makes it easy to install and remove without disrupting other components in the network. Additionally, it features a duplex LC connector, which provides a secure, reliable connection for your data transmission needs.

So, what are some specific occasions and scenarios where the 40G QSFP ER4 Optical Module might be used? Here are a few examples:

• Telecommunications networks: With its high data rate and reliable performance, this module is ideal for telecommunications networks that need to transfer large amounts of data quickly and efficiently.
• Data centers: In a data center environment, the 40G QSFP ER4 Optical Module can help improve network performance and reduce latency, which is critical for many applications.
• High-performance computing: Whether you're running simulations, modeling complex systems, or analyzing large datasets, this module can help you get the job done faster and more efficiently.
• Cloud computing: For organizations that rely on cloud computing services, the 40G QSFP ER4 Optical Module can help ensure fast, reliable data transfer between cloud servers and other components of the network.

Overall, the 40G QSFP ER4 Optical Module is a versatile and reliable solution for a wide range of high-bandwidth applications. With its high data rate, hot pluggable form factor, and duplex LC connector, it's an excellent choice for organizations that need fast, dependable data transmission.
