1310nm Wavelength 40G QSFP+ Optical Module For 40km Distance DDM / DOM Monitoring
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Application: | 40GBASE-ER4 Ethernet, Infiniband QDR And DDR Interconnects,Client-side 40G Telecom Connections | Wavelength: | 1310nm (4 CWDM Lanes MUX/DEMUX) |
|---|---|---|---|
| Receive Power (OMA), Each Lane: | -4dBm | Fiber Type: | Singlemode |
| Monitoring: | DDM/DOM | Compatibility: | Cisco/ Juniper / Multi-brand Compatible |
| Connector Type: | Duplex LC Connector | Power Consumption: | Max 3.5W |
| Highlight: | 1310nm 40g optical module,1310nm qsfp+ optical module,40km 40g optical module |
||
Product Description

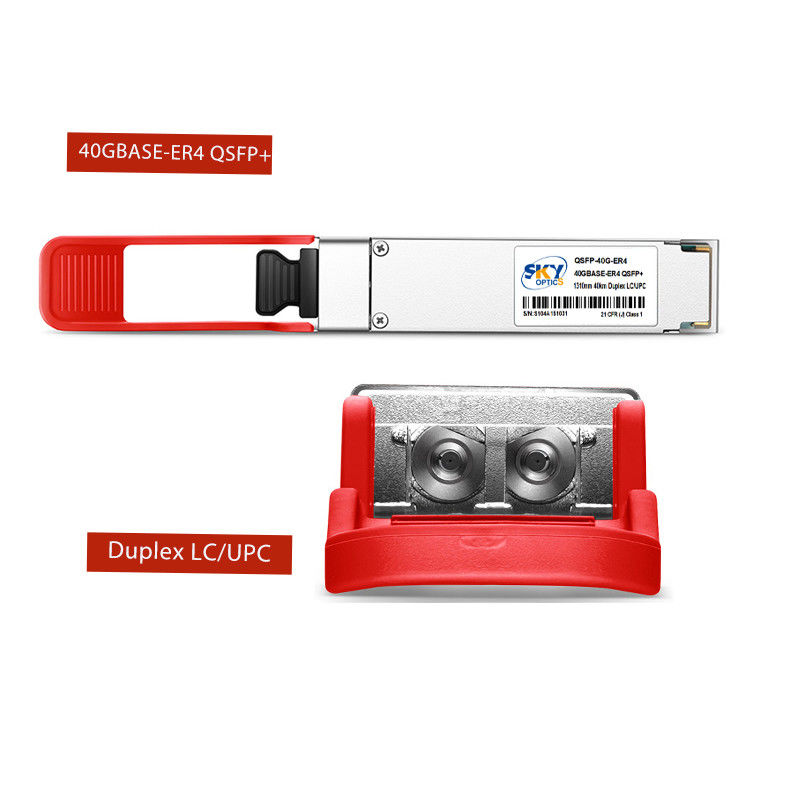

1310nm Wavelength 40G QSFP+ Optical Module for 40km Distance DDM/DOM Monitoring Included
Product Description:
In addition to its impressive performance capabilities, the 40G QSFP+ ER4 Optical Transceiver Module also features advanced monitoring capabilities, including DDM/DOM. This allows for real-time monitoring of critical parameters, such as temperature, voltage, and transmit/receive power, ensuring optimal performance and reliability.
Whether you're deploying a new 40GBASE-ER4 Ethernet network or upgrading an existing infrastructure, the 40G QSFP+ ER4 Optical Transceiver Module is the ideal solution. With its advanced features, reliable performance, and easy installation, this 40G QSFP QSFP+ ER4 Optical Module is the perfect choice for demanding telecom and data center applications.
Features:
- Product Name: 40G QSFP+ ER4 Optical Module
- Wavelength: 1310nm (4 CWDM Lanes MUX/DEMUX)
- Connector Type: Duplex LC Connector
- Receiver Sensitivity (OMA), each Lane: -19dBm
- Operating Temperature: 0°C To 70°C
- Data Rate: 40Gbps (10.3125Gb/s Data Rate Per Channel)
This 40G Optical Module is ideal for use in 40GBASE-ER4 Ethernet networks. It can also be used as a 40G QSFP ER4 or 40G Short-Range Optical Module.
Technical Parameters:
| Product Name: | 40G QSFP+ ER4 Optical Module |
| Product Type: | 40G QSFP Pluggable Module |
| Distance: | 40km |
| Monitoring: | DDM/DOM |
| Power Supply: | 3.3V |
| Receive Power (OMA), each Lane: | -4dBm |
| Wavelength: | 1310nm (4 CWDM Lanes MUX/DEMUX) |
| Extinction Ratio: | -3.5dB |
| Hot Swappable: | Yes |
| Compliant: | IEEE802.3ba, SFF-8436 |
| Operating Temperature: | 0°C To 70°C |
| Compatibility: | Cisco/ Juniper / Multi-brand Compatible |
Applications:
The Receiver Sensitivity (OMA) of each Lane for this product is -19dBm, while the Receive Power (OMA) for each lane is -4dBm. This means that the module is able to receive weak signals and convert them into useful data in scenarios where signal strength is low.
The QSFP+ QSFP+ ER4 transceiver is ideal for use in long-haul applications that require high-speed data transfer over long distances. It is commonly used in telecommunications, data centers, and enterprise networks.
The Power Consumption of the 40Gbs QSFP+ ER4 transceiver is Max 3.5W, making it energy-efficient and cost-effective.
Some common scenarios where the QSFP+ QSFP+ ER4 transceiver can be used include interconnecting routers and switches in data centers, connecting network switches in enterprise networks, and providing high-speed data transfer over long distances in telecommunications.
