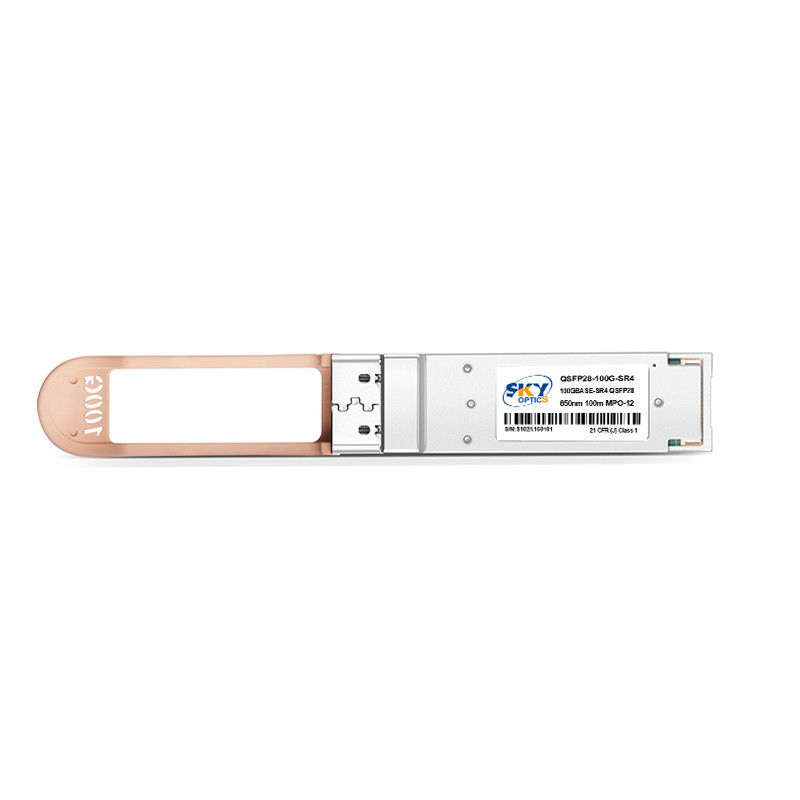

High Power QSFP28 SR4 100G Optical Module Transmit Power -8.4dBm - 2.4dBm 3.3V Power Supply
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| CDR: | With Built-in CDR | Operating Temperature: | 0°C To 70°C |
|---|---|---|---|
| Transmit Average Power Per Lane: | -8.4dBm~2.4dBm | Fiber Type: | Multi-mode |
| Optical Extinction Ratio: | 3dB | Receive Sensitivity In OMA, Each Lane: | -5.6dBm (Max ) |
| Form Factor: | QSFP28 | Wavelength: | 850nm |
| Highlight: | sr4 100g optical module,high power qsfp28 sr4 100g,qsfp28 100g optical module |
||
Product Description
QSFP28 SR4 100G Optical Module 850nm Wavelength -8.4dBm-2.4dBm Transmit Average Power
Product Description:
The 100GBASE-SR4 Transceiver Module has a maximum optical return loss tolerance of 12dB, which ensures efficient transmission of optical signals. The receive sensitivity of the module in OMA (Optical Modulation Amplitude) is -5.6dBm (Max) per lane, which makes it highly sensitive to incoming data signals.
The QSFP28 SR4 Fiber Optic Module is easy to install and is compatible with a wide range of network devices. It supports a transmission range of up to 100 meters over OM4 multimode fiber, making it ideal for use in short-range applications.
The 100G QSFP28 SR4 Optical Module is built to meet rigorous industry standards, ensuring optimal performance and reliability. Its robust design and high-quality components make it suitable for use in demanding environments.
Overall, the QSFP28 SR4 100G Optical Module is a reliable and high-performance transceiver module that delivers fast and efficient data transmission. Its compatibility with various protocols and easy installation make it an ideal choice for use in data centers, telecommunications networks, and other high-speed data communication applications.
Features:
- Product Name: QSFP28 SR4 100G Optical Module
- Transmitter: 850nm VCSEL Transmitter
- Receive Power (OMA) per Lane: 3dBm (Max )
- Wavelength: 850nm
- Optical Extinction Ratio: 3dB
- Power Supply: 3.3V
Keywords: QSFP28 SR4 Optical Transponder, QSFP28 SR4 Fiber Optic Module, 100G Optical Transmitter
Technical Parameters:
| Product Name | 100 Gigabit QSFP28 SR4 Optical Transceiver |
| Product Model | 100GBASE-SR4 Fiber Optic Transceiver |
| Protocols | Ethernet, Fibre Channel, Infiniband |
| Transmitter | 850nm VCSEL Transmitter |
| CDR | With Built-in CDR |
| Transmit Average Power per Lane | -8.4dBm~2.4dBm |
| Power Supply | 3.3V |
| Operating Temperature | 0°C To 70°C |
| Power dissipation | Less Than 2.5W |
| Compatibility | Multi-vendor |
| Hot Pluggable | Yes |
| Max Optical return loss tolerance | 12dB |
Applications:
The QSFP28 SR4 Optical Transponder is equipped with an 850nm VCSEL transmitter, which allows for high-speed data transmission over optical fiber cables. This makes it an excellent choice for use in high-bandwidth applications such as video streaming, cloud computing, and data storage.
With a maximum optical return loss tolerance of 12dB, the QSFP28 SR4 Optical Transponder is highly reliable and can maintain stable performance even in challenging network environments. Its transmit average power per lane ranges from -8.4dBm to 2.4dBm, providing plenty of flexibility for different applications.
As a QSFP28 form factor module, this optical transponder is designed to be compact and easy to install. It can be used in a wide range of scenarios, including data centers, telecommunications networks, and other high-speed networking environments.
