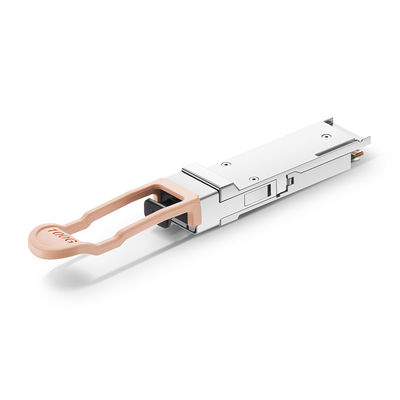

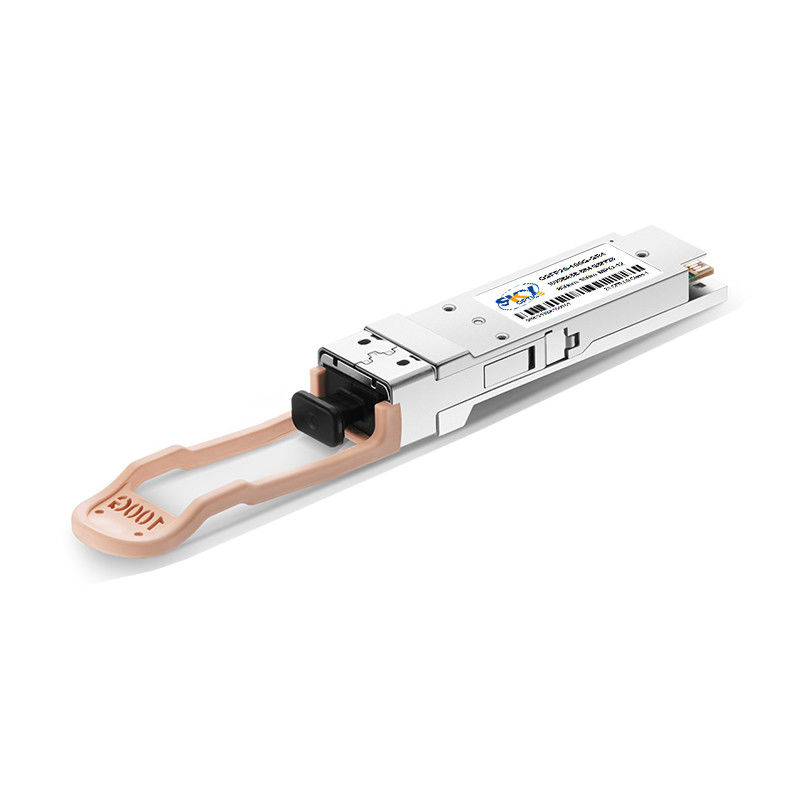

Multi Mode Fiber Type QSFP28 100Gbase SR4 Optic Transceiver 100Gbs With MPO Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Optical Extinction Ratio: | 3dB | Fiber Type: | Multi-mode |
|---|---|---|---|
| Receive Power (OMA) Per Lane: | 3dBm (Max ) | CDR: | With Built-in CDR |
| Hot Pluggable: | Yes | Transmission Distance: | 70m On OM3(MMF) ,100m On OM4 (MMF) |
| Power Supply: | 3.3V | Applications: | 100GBASE-SR4 100G Ethernet, Super-computing Interconnections, High-speed Interconnects |
| Highlight: | sr4 100gbase lr4 qsfp28,100gbs 100gbase lr4 qsfp28,100gbs qsfp28 100gbase sr4 |
||
Product Description
100GBASE-SR4 Speed Networking Made Easy with 100Gbs Optic Transceiver MPO Connector and QSFP28 Form Factor
Product Description:
This module features a power dissipation of less than 2.5W, making it an energy-efficient choice for high-performance computing environments. The QSFP28 SR4 Fiber Optic Module is designed for use with multi-mode fiber, making it an ideal choice for high-speed, short-range connections.
The QSFP28 SR4 Fiber Optic Module supports 100GBASE-SR4 Ethernet, providing reliable, high-speed connectivity for data-intensive applications. With a receive sensitivity of -5.6dBm (max) on each lane, this module provides excellent signal integrity and performance.
Whether you're looking for a reliable, high-speed optical module for your data center or super-computing environment, the QSFP28 SR4 Fiber Optic Module is an excellent choice. With its energy-efficient design, support for multiple protocols, and high-speed performance, this module is an investment in the future of your high-performance computing needs.
Features:
- Product Name: QSFP28 SR4 100G Optical Module
- Interface: MPO Connector
- CDR: With Built-in CDR
- Applications: 100GBASE-SR4 100G Ethernet, Super-computing Interconnections, High-speed Interconnects
- Operating Temperature: 0°C To 70°C
- Receive Power (OMA) per Lane: 3dBm (Max)
Keywords: QSFP28 SR4 Fiber Optic Module, 100GBASE-SR4 Fiber Module, 100G Optical Transponder
Technical Parameters:
| Max Optical return loss tolerance | 12dB |
| CDR | With Built-in CDR |
| Power dissipation | Less Than 2.5W |
| Fiber Type | Multi-mode |
| Data Rate | 100Gbps ( 25.78Gb/s Data Rate Per Channel ) |
| Power Supply | 3.3V |
| Transmitter | 850nm VCSEL Transmitter |
| Optical Extinction Ratio | 3dB |
| Interface | MPO Connector |
| Applications |
100GBASE-SR4 100G Ethernet, Super-computing Interconnections, High-speed interconnects within/between switches, routers and transport equipment, Server-server clusters, Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane |
