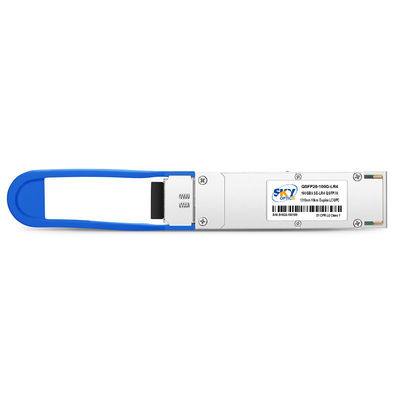

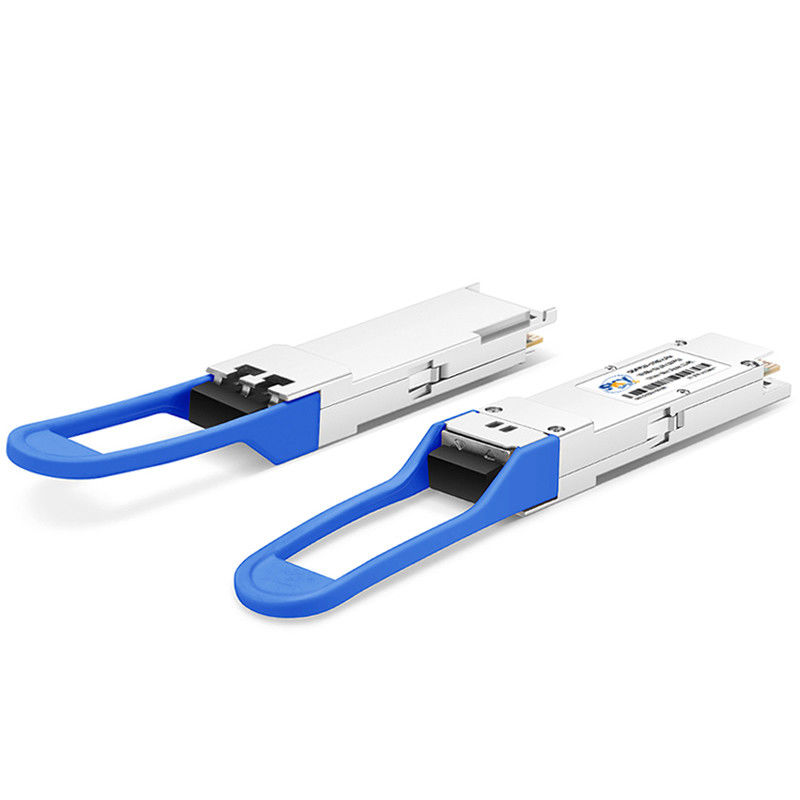

Hot Pluggable LR4 100G QSFP28 Optical Transceiver With 1310nm Wavelength
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| LOS Assert: | -24dBm (min) | Interface: | Duplex LC Connector |
|---|---|---|---|
| Data Rate: | 103.1Gb/s | Receive Sensitivity In OMA, Each Lane: | -8.6dBm (Max ) |
| Transmitter: | 4x25.78Gb/s DFB-based LAN-WDM Transmitter | Optical Extinction Ratio: | 4dB |
| Power Dissipation: | Less Than 3.5W | Fiber Type: | Single-mode |
| Highlight: | lr4 100g qsfp28,lr4 qsfp28 optical transceiver,1310nm 100g qsfp28 |
||
Product Description
Hot Pluggable QSFP28 LR4 100G Optic Transceiver with 1310nm Wavelength
Product Description:
This QSFP28 LR4 100G Fiber Optic Transceiver is compatible with a wide range of vendors, making it easy to integrate into your existing network infrastructure. It is also designed to meet the highest industry standards, ensuring that it delivers exceptional performance and reliability.
The 100GBASE-LR4 Fiber Optic Transceiver is built to last, with a maximum optical return loss tolerance of 20dB. This ensures that the signal is transmitted with minimal loss, even over long distances. This product is suitable for a variety of applications, including data centers, telecommunications, and enterprise networks.
Overall, the 100GBASE-LR4 Fiber Optic Module is a high-performance, reliable, and cost-effective solution for high-speed data transmission. Whether you need to transmit data over long distances or require fast and reliable connectivity within your network, this product is an excellent choice.
Features:
- Product Name: QSFP28 LR4 100G Optical Module
- Operating Temperature: 0°C To 70°C
- Optical Extinction Ratio: 4dB
- Transmission Distance: 10km On Single Mode Fiber (SMF)
- LOS De-Assert: -11.6dBm (max)
- Max Optical return loss tolerance: 20dB
- Keywords: 100GBASE-LR4 Fiber Optic Module, QSFP28 LR4 Fiber Module, 100GBASE-LR4 Fiber Module
Technical Parameters:
| Product Attribute | Value |
| Product Name | QSFP28 LR4 100G Optical Network Unit |
| Product Type | 100G Fiber Module |
| Compliant | QSFP28 MSA And IEEE 802.3ba |
| Max Optical return loss tolerance | 20dB |
| Interface | Duplex LC Connector |
| LOS De-Assert | -11.6dBm (max) |
| Optical Extinction Ratio | 4dB |
| Data Rate | 103.1Gb/s |
| Form Factor | QSFP28 |
| Transmission Distance | 10km On Single Mode Fiber (SMF) |
| Receive Power (OMA) per Lane | 4.5dBm (Max) |
| Product Code | QSFP-100G-LR4 Optical Module |
| Power dissipation | Less Than 3.5W |
Applications:
The LOS De-Assert has a maximum of -11.6dBm, which enables efficient data transmission. This product is designed to work with single-mode fiber, which makes it ideal for long-distance transmission. Its transmission distance of 10km on single-mode fiber (SMF) makes it a great option for use in a wide range of scenarios.
The QSFP28 LR4 Fiber Module is perfect for use in high-speed data transmission scenarios such as data centers, cloud computing, and big data. It can also be used in long-distance transmission scenarios such as telecommunications and broadcasting.
