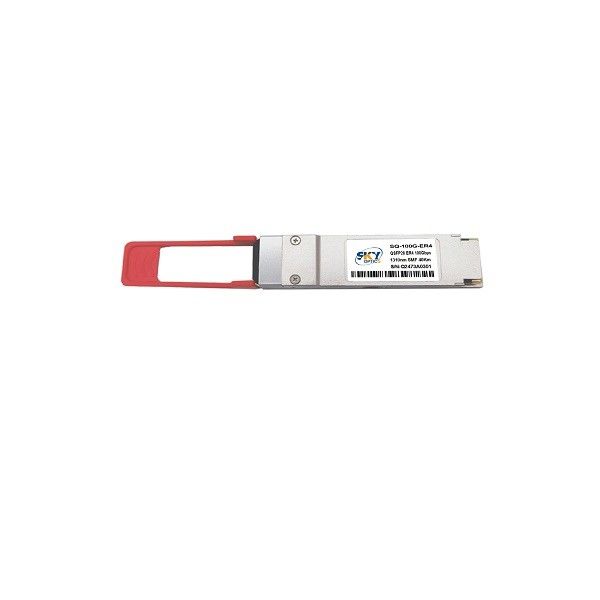

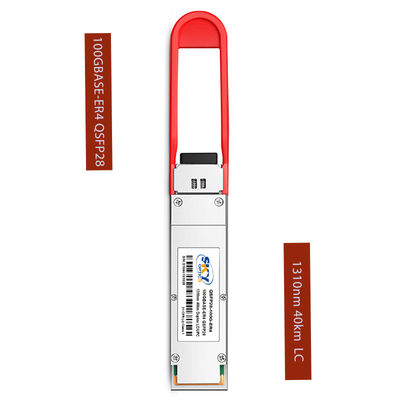

QSFP28 ER4 Hot Pluggable 100G Optical Transceiver Link Length Up To 40km On SMF
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Optical Extinction Ratio: | 4dB | Hot Pluggable: | Yes |
|---|---|---|---|
| Wavelength: | 1310nm | Applications: | 100GBASE-ER4 100G Ethernet, 100GE 4WDM-40 Applications |
| Transmit Average Power Per Lane: | -2.5dBm~6.5dBm | Form Factor: | QSFP28 |
| Receive Power (OMA) Per Lane: | -3.5dBm (Max ) | Power Supply: | 3.3V |
| Highlight: | hot pluggable 100g optical transceiver,qsfp28 100g transceiver,qsfp28 100g optical transceiver |
||
Product Description
QSFP28 ER4 Hot Pluggable 100G Optic Transceiver with Built-in CDR link length up to 40km on SMF
Product Description:
Designed to be compatible with multiple vendors, this 100GBASE-ER4 Fiber Optic Transceiver is perfect for use in a wide range of applications, including data centers, telecommunications, and enterprise networking.
The QSFP28 ER4 100G Optical Module boasts a Sidemode Suppression ratio of 30nm, which helps to ensure clear and reliable data transmission over long distances.
With a built-in CDR, this QSFP28 ER4 100G Fiber Module can easily detect and correct any signal distortion or degradation that may occur during transmission, ensuring a stable and consistent connection.
Operating within a temperature range of 0°C to 70°C, this 100GBASE-ER4 Fiber Optic Transceiver can withstand a variety of different environmental conditions, making it a reliable choice for use in a range of different settings.
Features:
- Product Name: QSFP28 ER4100G Optical Module
- Power Dissipation: Less Than 5W
- Optical Extinction Ratio: 4dB
- CDR: With Built-in CDR
- Compatibility: Multi-vendor
- Receive Power (OMA) per Lane: -3.5dBm (Max)
Product Attributes: 100G Fiber Optic Transceiver, QSFP28 ER4 Fiber Module, 100G Optical Transponder
Technical Parameters:
| Technical Parameter | Value |
|---|---|
| Product Name | QSFP28 ER4 100Gbps Transceiver |
| Power Dissipation | Less Than 5W |
| Operating Temperature | 0°C To 70°C |
| Transmitter | 4x25.78Gb/s DFB-based LAN-WDM Transmitter |
| Compatibility | Multi-vendor |
| LOS Assert | -35dBm (min) |
| Power Supply | 3.3V |
| Compliant | QSFP28 MSA And IEEE 802.3ba |
| Data Rate | 103.1Gb/s |
| LOS De-Assert | -23dBm (max) |
| Transmit Average Power per Lane | -2.5dBm~6.5dBm |
| Product Type | 100G Optical Network Unit |
| Product Model | QSFP28 ER4 Optical Transponder |
Applications:
The QSFP28 ER4 Fiber Optic Module is capable of transmitting data at a wavelength of 1310nm, with a Transmit Average Power per Lane of -2.5dBm~6.5dBm. This ensures that data is transmitted with clarity and precision, even over long distances. Additionally, the LOS Assert of -35dBm (min) ensures that the module is able to detect the presence or absence of a signal with accuracy.
The QSFP28 ER4 100G Fiber Optic Module is ideal for use in a variety of applications, including 100GBASE-ER4 100G Ethernet and 100GE 4WDM-40 Applications. It is particularly well-suited for use in data center environments, where high-speed data transmission is essential for efficient and effective operations. The module is also commonly used in telecommunications networks, where it is used to transmit data over long distances between network nodes.
Overall, the QSFP28 ER4 Transceiver Module is a reliable and efficient solution for high-speed data transmission over long distances. Its advanced features and capabilities make it an ideal choice for a wide range of applications and scenarios.
