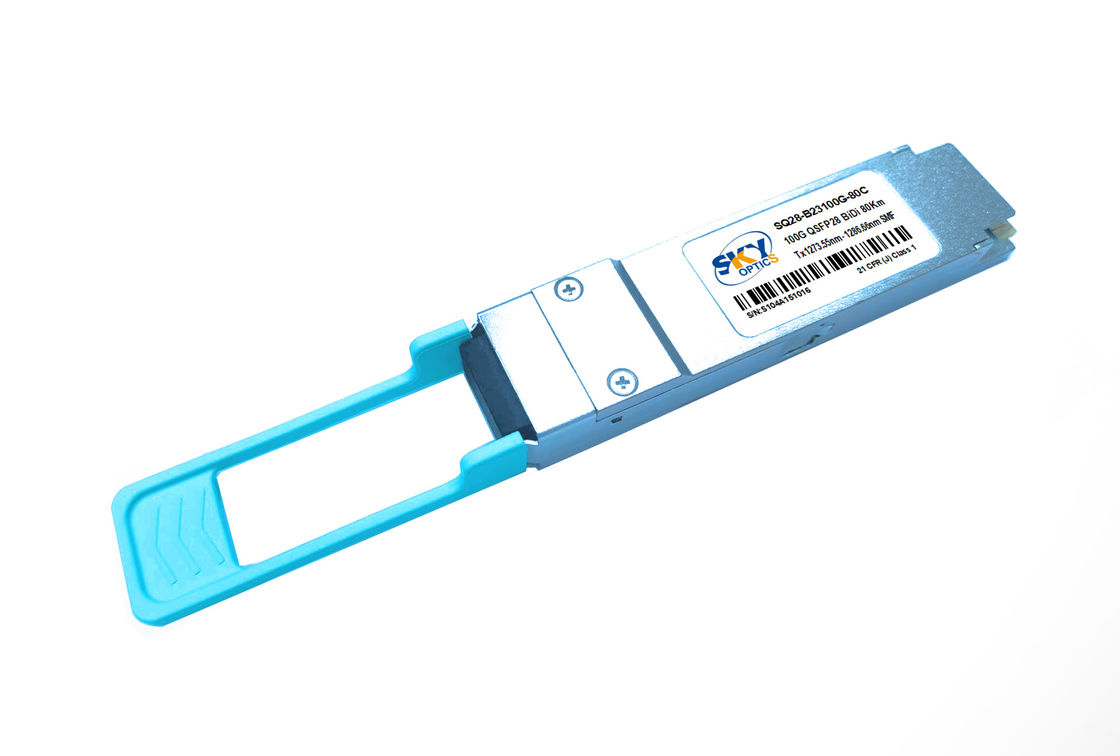

100Gbps O-Band DWDM QSFP28 Transceiver, 40km, <6W
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / FCC / RoHs |
| Model Number: | SQ-100G-OD40-XXX5S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same Day Delivery~one Week |
| Payment Terms: | ,L/C,T/T,Western Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Power Dissipation: | < 6W | Modulation Format: | PAM4 |
|---|---|---|---|
| Hot Pluggable: | Yes | Rx Sensitivity: | ≤ -16.5 DBm |
| Power Supply: | 3.3V | Hot Swappable: | Yes |
| Tx Power: | 2 To 7.1 DBm | Connector Type: | LC Duplex |
| Data Rate: | 100Gbps (4x25Gbps NRZ To PAM4) | Diagnostic Interface: | I²C With DDM |
| Transmission Distance: | 40km | ||
| Highlight: | 100Gbps O-Band DWDM QSFP28 transceiver,40km single-mode optical transceiver,LC duplex 100G optical module |
||
Product Description
Product Description
SkyOptics' SQ-100G-OD40-XXX5S is a high-performance 100G optical transceiver designed for long-distance data transmission in metropolitan and core networks. It supports DWDM wavelengths in the O-Band (1304.58–1312.58nm) and delivers reliable performance up to 40km over single-mode fiber. With PAM4 modulation and integrated DSP, it ensures high-speed data integrity and low power consumption.
Features
Supports 100Gbps data rate with PAM4 modulation
O-Band DWDM with 200GHz channel spacing
Up to 40km transmission over SMF
Low power consumption < 6W
Compliant with QSFP28 MSA and SFF-8636
Integrated digital diagnostic monitoring (DDM)
Commercial temperature range: 0°C to 70°C
RoHS compliant and safety certified (TUV/UL/FDA)
Technical Parameters
| Parameter | Details |
| Data Rate | 100Gbps (4x25Gbps NRZ to PAM4) |
| Wavelength Range | O-band DWDM, 1304.58–1312.58nm |
| Transmission Distance |
40km |
| Fiber Type |
Single-Mode (G.652) |
|
Connector: |
LC Duplex |
| Tx Power | 2 to 7.1 dBm |
| Rx Sensitivity | ≤ -16.5 dBm |
| Power Consumption | < 6W |
| Operating Temperature | 0°C to 70°C |
| Modulation Format | PAM4 |
| Diagnostic Interface | I²C with DDM |
| Compliance | QSFP28 MSA, SFF-8636, RoHS |
Applications
100G DWDM systems in metro access and core networks
Data center interconnects (DCI)
Telecommunications and carrier networks
High-capacity enterprise backbones
