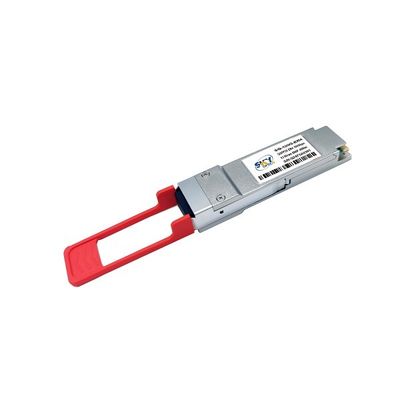

High-Performance 100G DWDM QSFP28 Optical Module, 40km Reach, SMF, LC Interface
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / FCC / RoHs |
| Model Number: | SQ-100G-OD40-XXX5S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same Day Delivery~one Week |
| Payment Terms: | ,L/C,T/T,Western Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Power Supply: | 3.3V | Connector Type: | LC Duplex |
|---|---|---|---|
| LOS Assert: | -26 DBm | Rx Overload: | -3 DBm |
| Rx Sensitivity: | ≤ -16.5 DBm | LOS Hysteresis: | 0.5 DB |
| Damage Threshold: | -2.4 DBm | Form Factor: | QSFP28 |
| Modulation: | PAM4 | Baud Rate: | 56.25 Gbaud |
| Operating Humidity: | 5% To 85% | Compliance: | QSFP28 MSA, SFF-8636 |
| Distance: | 40km | Data Rate: | 100Gbps (4x25Gbps NRZ To PAM4) |
Product Description
Product Description
This energy-efficient 100G QSFP28 transceiver is designed for demanding network environments. It operates in the O-Band DWDM spectrum and supports up to 40km reach with best-in-class power efficiency (<6W). Its robust design ensures stable performance across a wide temperature range (0°C to 70°C), making it ideal for both data centers and outdoor applications.
Features
Power dissipation < 6W
Wide operating temperature: 0°C to 70°C
O-Band DWDM with 200GHz spacing
Integrated PFEC for enhanced error correction
Compliant with IEEE 802.3cd and CAUI-4
Digital diagnostics via I²C interface
LC duplex connector for easy integration
RoHS and safety certified
Technical Parameters
| Center Wavelength | 1304.58–1312.58nm |
| Spectral Width | 1.13 nm (@ -20dB) |
| SMSR | > 30 dB |
| Tx Power Range |
2 – 7.1 dBm |
| Rx Overload |
-3 dBm |
|
LOS Hysteresis |
0.5 dB |
| Damage Threshold | -2.4 dBm |
| Modulation | PAM4 |
| Baud Rate | 56.25 Gbaud |
| Operating Humidity | 5% to 85% |
| Compliance | QSFP28 MSA, SFF-8636 |
Applications
Long-haul optical transport networks
Financial and trading network infrastructure
Government and defense communication systems
High-reliability data links
