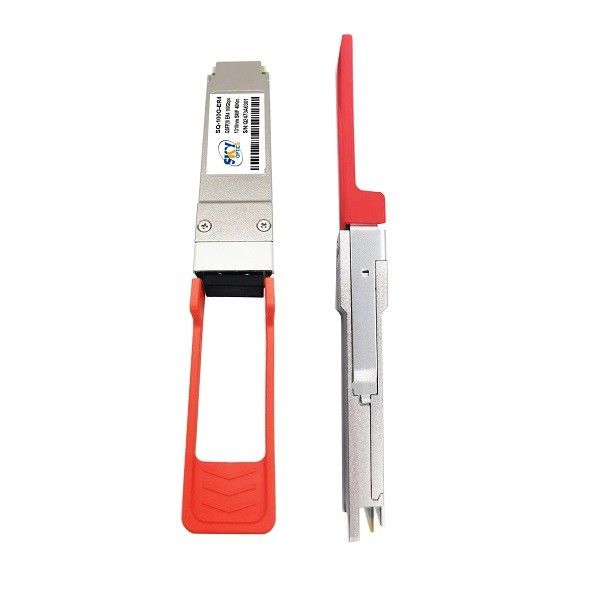

QSFP28 Transceiver 100G Optical Module with 100Gbps Data Rate for 40km Distance and 0°C to 70°C Operating Temperature
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / FCC / RoHs |
| Model Number: | SQ-100G-OD40-XXX5S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same Day Delivery~one Week |
| Payment Terms: | ,L/C,T/T,Western Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Form Factor: | QSFP28 | Power Supply: | 3.3V ±5% |
|---|---|---|---|
| Data Rate: | 100Gbps (4x25Gbps NRZ To PAM4) | Operating Temp: | 0°C To 70°C |
| Storage Temp: | -40°C To 85°C | Interface: | 4x25G Electrical, 1x100G Optical |
| Connector: | LC Duplex | Wavelength: | ITU-T CW-WDM MSA Compliant |
| Tx Power: | 2 – 7.1 DBm | Rx Sensitivity: | -16.5 DBm |
| LOS Hysteresis: | 0.5 DB | Modulation: | PAM4 |
| Humidity: | 5% To 85% Non-condensing | ||
| Highlight: | 100Gbps Data Rate QSFP28 Transceiver,40km Distance 100G Optical Module,0°C to 70°C Operating Temp DWDM Transceiver |
||
Product Description
QSFP28 Form Factor 100G DWDM Transceiver, 40km, LC, Single-Mode, MSA Compliant
Product Description
This MSA-compliant QSFP28 transceiver offers seamless integration into existing 100G infrastructure. It supports DWDM channels in the O-Band and provides a reliable 40km link over single-mode fiber. The module features a standard LC interface and hot-pluggable design for easy deployment and maintenance.
Features
- QSFP28 MSA compliant
- Hot-pluggable LC duplex interface
- Supports SFF-8636 management interface
- Low power mode and Tx disable function
- I²C DDM for real-time monitoring
- Compatible with standard host systems
- RoHS compliant and UL certified
- ESD protection on electrical and optical ports
Technical Parameters
| Form Factor | QSFP28 |
|---|---|
| Interface | 4x25G electrical, 1x100G optical |
| Connector | LC Duplex |
| Wavelength | ITU-T CW-WDM MSA compliant |
| Tx Power | 2 - 7.1 dBm |
| Rx Sensitivity | -16.5 dBm |
| Power Supply | 3.3V ±5% |
| Operating Temp | 0°C to 70°C |
| Storage Temp | -40°C to 85°C |
| Humidity | 5% to 85% non-condensing |
Applications
- Data center spine-leaf architecture
- Service provider edge networks
- Cable TV and broadband aggregation
- High-density switch and router platforms
