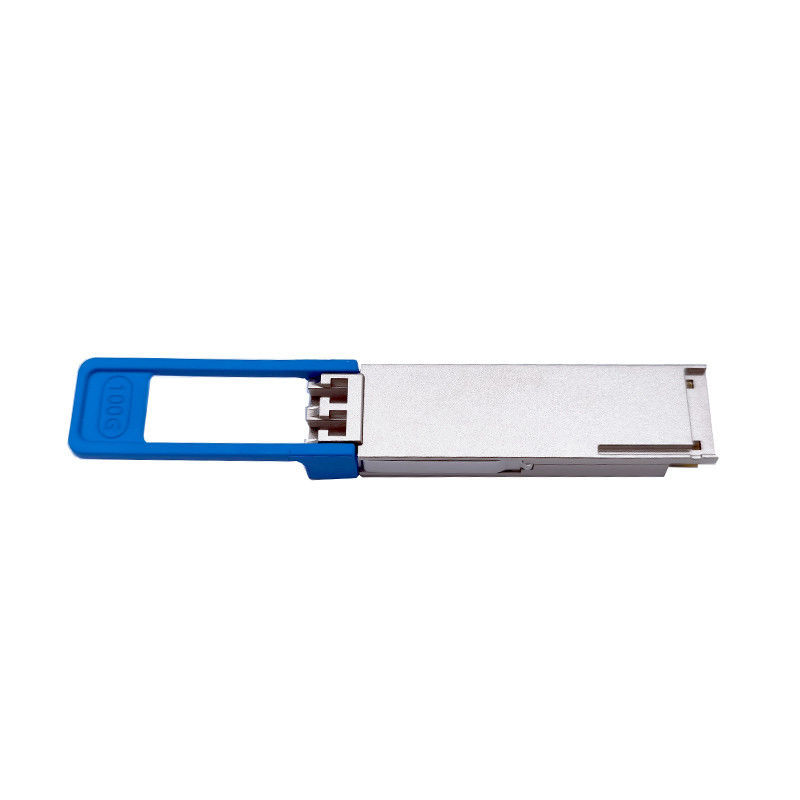

Digital Diagnostic 100G QSFP28 DWDM Transceiver, 40km, O-Band, Real-Time Monitoring
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / FCC / RoHs |
| Model Number: | SQ-100G-OD40-XXX5S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same Day Delivery~one Week |
| Payment Terms: | ,L/C,T/T,Western Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| DDM Parameters: | Temp, Voltage, Tx Power, Rx Power, Bias Current | Memory Map: | SFF-8636 Compliant |
|---|---|---|---|
| Modulation: | PAM4 At 56.25 Gbaud | Wavelength Stability: | ±0.1 Nm Over Life |
| Data Rate: | 100Gbps (4x25Gbps NRZ To PAM4) | Tx Power: | 2 To 7.1 DBm |
| Rx Sensitivity: | ≤ -16.5 DBm | LOS Assert/De-assert: | -26 DBm / -17 DBm |
| Interrupt Support: | IntL/RxLOSL Configurable | Power Supply: | 3.3V |
| Connector Type: | LC Duplex | Control Signals: | ModSelL, ResetL, LPMode/TxDis |
| SCL/SDA Speed: | Up To 400 KHz | ESD Protection: | 1kV (high-speed), 2kV (control) |
Product Description
Product Description
This energy-efficient 100G QSFP28 transceiver is designed for demanding network environments. It operates in the O-Band DWDM spectrum and supports up to 40km reach with best-in-class power efficiency (<6W). Its robust design ensures stable performance across a wide temperature range (0°C to 70°C), making it ideal for both data centers and outdoor applications.
Features
Integrated DDM via I²C interface
Real-time monitoring of Tx/Rx power, temperature, voltage
Programmable alarm and warning thresholds
Support for interrupt and loss-of-signal (LOS) signals
Low power mode and software configurable functions
Compliant with SFF-8636 memory map
High ESD tolerance: 2kV on all pins
Commercial temperature operation
Technical Parameters
DDM Parameters: Temp, Voltage, Tx Power, Rx Power, Bias Current
Memory Map: SFF-8636 compliant
Interrupt Support: IntL/RxLOSL configurable
Control Signals: ModSelL, ResetL, LPMode/TxDis
SCL/SDA Speed: Up to 400 kHz
ESD Protection: 1kV (high-speed), 2kV (control)
LOS Assert/De-assert: -26 dBm / -17 dBm
Wavelength Stability: ±0.1 nm over life
Modulation: PAM4 at 56.25 Gbaud
Applications
Network monitoring and analytics platforms
Smart city infrastructure
IoT and edge computing hubs
Carrier-grade Ethernet services
