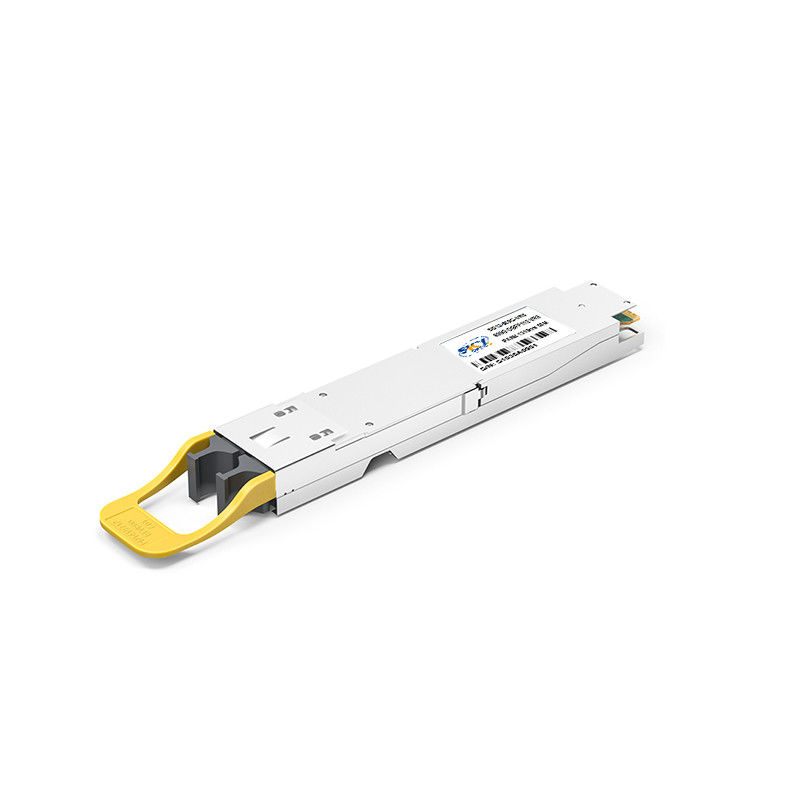

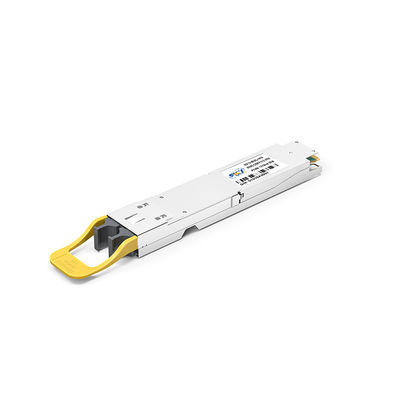

OSFP112 VR8 800G Optical Module I2C Interface With Integrated Digital Diagnostic Monitoring
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Case Temperature Range: | 15°C To 70°C | Power Dissipation: | < 15W |
|---|---|---|---|
| Receiver: | PIN And TIA Array | Transmitter: | VCSEL |
| Data Rate: | 850Gbps | Form Factor: | OSFP112 |
| Application: | 1x800GbE / 2x400GbE 4x200GbE / 8x100GbE | Power Supply: | Single 3.3V |
| Wavelength: | 850nm | ||
| Highlight: | osfp112 vr8,vr8 800g optical module,osfp112 800g optical module |
||
Product Description
DDM I2C Interface 800G OSFP112 VR8 Optical Module with Integrated Digital Diagnostic Monitoring and OSFP112 Form Factor
Product Description:
The 800G OSFP module is equipped with an I2C interface that allows for integrated digital diagnostic monitoring (DDM). This feature enables the module to monitor its own performance metrics, such as temperature, voltage, and optical power levels, in real-time. This allows for quick and easy troubleshooting in the event of any issues.
This module is designed with a single 3.3V power supply, making it an energy-efficient solution for networking applications. Its OSFP112 form factor offers a compact and easy-to-install design that can fit in various networking devices.
Whether you need high-speed connectivity for data centers, cloud computing, or other networking applications, the 800G OSFP module is an ideal choice. Its high data rate, DDM capabilities, and energy efficiency make it a reliable and cost-effective solution for your networking needs.
Features:
- Product Name: 800G OSFP112 VR8 Optical Module
- Connector: MPO-16 APC
- DDM: I2C Interface With Integrated Digital Diagnostic Monitoring
- Electrical Interface: 8x53.125GBd (PAM4)
- Application: 1x800GbE / 2x400GbE 4x200GbE / 8x100GbE
- Compliant: OSFP MSA Compliant
Features of the 800G High-speed Optical Transceiver:
- 800 Gigabit Ethernet
- 800G Optical Transmitter and Receiver
Technical Parameters:
| Compliant | OSFP MSA Compliant |
| Power Dissipation | < 15W |
| Power Supply | Single 3.3V |
| Application | 1x800GbE / 2x400GbE 4x200GbE / 8x100GbE |
| Electrical Interface | 8x53.125GBd (PAM4) |
| Transmitter | VCSEL |
| Form Factor | OSFP112 |
| DDM | I2C Interface With Integrated Digital Diagnostic Monitoring |
| Data Rate | 850Gbps |
| Case Temperature Range | 15°C To 70°C |
Applications:
The 800G Optical Module is ideal for a range of applications, including data centers, high-performance computing, and cloud computing. It can be used for intra-rack and inter-rack connectivity, as well as inter-data center connections. With its MPO-16 APC connector, it can be easily integrated into existing systems and networks.
This optical module is also designed to withstand extreme temperatures, with a case temperature range of 15°C to 70°C. This makes it ideal for use in harsh environments and ensures that it can function reliably even in challenging conditions.
Whether you are looking to upgrade your data center infrastructure, improve the speed and reliability of your high-performance computing systems, or connect multiple data centers, the 800G Optical Module is the perfect solution. With its advanced technology, reliable performance, and robust design, it is the ideal choice for anyone looking to achieve the fastest possible data transfer speeds.
