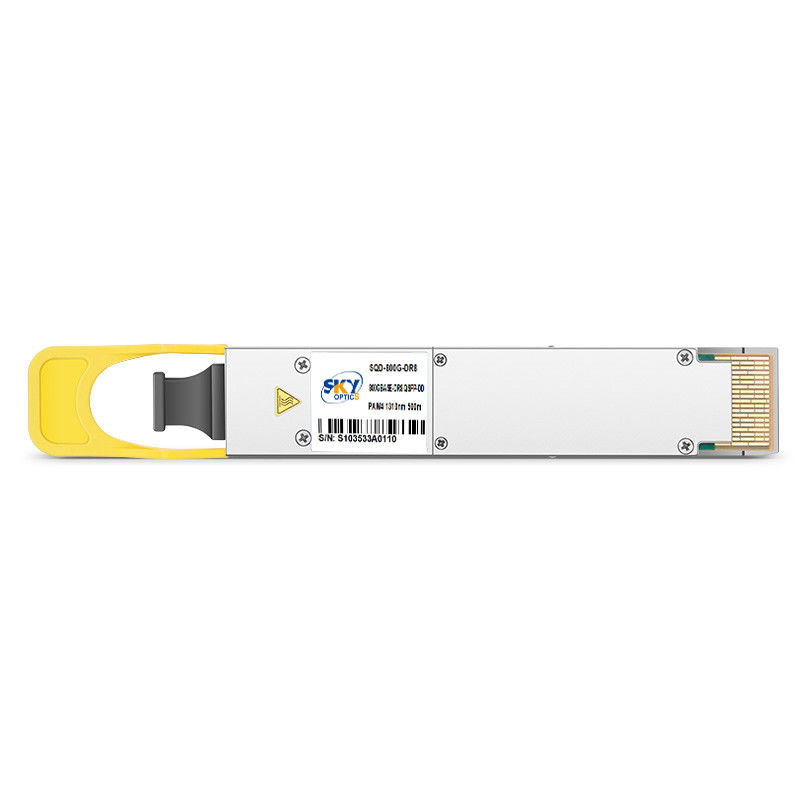

850Gbps 800G QSFP-DD DR Optic Transceiver For Multi Rate Operation And Dissipation
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Connector: | MPO-16 Connector | Application: | 8x100G Ethernet / 1x800G Ethernet / 2x400G Ethernet / 2x200G Ethernet |
|---|---|---|---|
| Form Factor: | QSFP-DD | Data Rate: | 850Gbps (Support Multi-rate Operation) |
| Case Temperature Range: | 0°C To 70°C(commercial) | Power Supply: | Single 3.3V |
| DDM: | I2C Interface With Integrated Digital Diagnostic Monitoring | Distance: | 500m Over SMF With KP4 FEC Supported At The Host Side |
| Highlight: | 850gbps 800g qsfp-dd,800g qsfp-dd dr,dr optic transceiver |
||
Product Description
Product Description:
This 800G Data Center Transceiver features a single 3.3V power supply, which simplifies installation and reduces power consumption. The transceiver also has an I2C interface with integrated digital diagnostic monitoring (DDM), which allows for real-time monitoring of the module's performance and health.

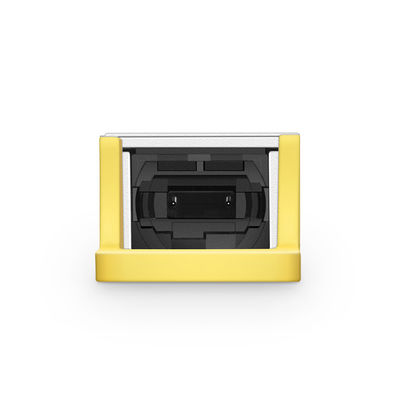

The 800G QSFP-DD DR Optical Module uses an MPO-16 connector, which provides a secure and reliable connection for high-speed data transmission. With its 8x100G QSFP-DD DR capability, this transceiver is ideal for applications that require high bandwidth and low latency.
Features:
- Product Name: 800G QSFP-DD DR Optical Module
- Case Temperature Range: 0°C To 70°C (commercial)
- Power Supply: Single 3.3V
- Distance: 500m Over SMF With KP4 FEC Supported At The Host Side
- Application: 8x100G Ethernet / 1x800G Ethernet / 2x400G Ethernet / 2x200G Ethernet
- Connector: MPO-16 Connector
- 800G Multi-rate Optical Module
- 800G QSFP-DD module
- 800G Ethernet Optical Transceiver
Technical Parameters:
| Product Name | 800G Fiber Optic Module |
| Transceiver Type | 800G QSFP-DD transceiver |
| Form Factor | QSFP-DD |
| Data Rate | 850Gbps (Support Multi-rate Operation) |
| Application | 8x100G Ethernet / 1x800G Ethernet / 2x400G Ethernet / 2x200G Ethernet |
| Distance | 500m Over SMF With KP4 FEC Supported At The Host Side |
| Wavelength | CWDM (4 Wavelengths On The ITU G.694.2 CWDM Grid Near 1300nm) |
| Connector | MPO-16 Connector |
| Power Dissipation | < 15W |
| Case Temperature Range | 0°C To 70°C (commercial) |
| Power Supply | Single 3.3V |
Applications:
One of the key features of this product is its DDM: I2C interface with integrated digital diagnostic monitoring. This allows for easy monitoring and management of the module, making it an ideal solution for enterprise and data center applications.
The 800G QSFP-DD DR Fiber Optic Module is also designed for long-distance transmission, with support for distances of up to 500m over SMF with KP4 FEC supported at the host side. This makes it an ideal solution for applications where long-distance transmission is required, such as in large data centers or enterprise networks.
In addition, this product has a low power dissipation of less than 15W, making it an energy-efficient solution for a variety of applications. This is especially important in today's environmentally conscious world, where energy efficiency is a top priority.
The 800G QSFP-DD Fiber Optic Module is designed for use in a variety of Ethernet applications, including 8x100G Ethernet, 1x800G Ethernet, 2x400G Ethernet, and 2x200G Ethernet. This makes it a versatile solution for a wide range of networking scenarios and occasions.
Finally, this product features a transmitter with a driver and TIA integrated in the DSP at the transmitter. This advanced design ensures high performance and reliability in even the most demanding networking environments.
In summary, the 800G QSFP-DD Fiber Optic Module is a high-performance, versatile, and reliable solution for a wide range of networking applications. Whether you need to support 800 Gigabit Ethernet, QSFP-DD 2x400G VR4, or other Ethernet applications, this product has the features and capabilities you need to ensure reliable, high-performance networking.
