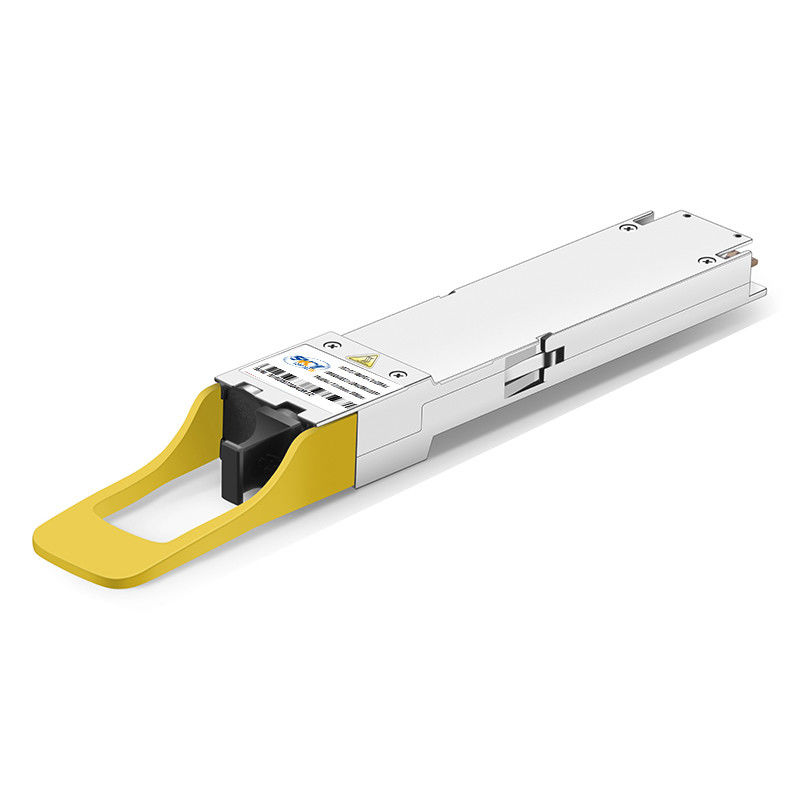

OSFP112 8x100G DR 800G High Speed Optical Transceiver Data Rate 850Gbps
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Application: | 8x100G Ethernet / 1x800G Ethernet / 2x400G Ethernet / 2x200G Ethernet | Case Temperature Range: | 0°C To 70°C(commercial) |
|---|---|---|---|
| Power Dissipation: | < 15W | Transmitter: | Driver And TIA Integrated In The DSP At Transmitter |
| Power Supply: | Single 3.3V | Distance: | 500m Over SMF With KP4 FEC Supported At The Host Side |
| Wavelength: | CWDM ( 4 Wavelengths On The ITU G.694.2 CWDM Grid Near 1300nm) | Form Factor: | OSFP112 |
| Highlight: | osfp112 8x100g,800g high speed optical transceiver,osfp112 high speed optical transceiver |
||
Product Description
OSFP112 8x100G DR Speed 800G Optic Transceiver for Commercial Applications Data Rate 850Gbps Case Temperature Range 0°C To 70°C
Product Description:
The OSFP112 8x100G DR transceiver has a power dissipation of less than 15W, making it an energy-efficient option for data center use. It is compatible with a range of Ethernet applications, including 8x100G Ethernet, 1x800G Ethernet, 2x400G Ethernet, and 2x200G Ethernet. This makes it a versatile option for data centers and other high-performance computing environments.
The transceiver is designed with an MPO-16 connector, which ensures a secure and stable connection between the transceiver and other network components. It uses CWDM (Coarse Wavelength Division Multiplexing) technology, which supports four wavelengths on the ITU G.694.2 CWDM grid near 1300nm. This allows for high-speed data transmission over a single optical fiber.
In summary, the OSFP112 8x100G DR transceiver is an 800 Gigabit Optical Module that offers a range of benefits for high-performance computing environments. It has a DDM interface with integrated digital diagnostic monitoring, a power dissipation of less than 15W, and is compatible with a range of Ethernet applications. It uses an MPO-16 connector and CWDM technology to support high-speed data transmission over a single optical fiber.
Features:
- Product Name: OSFP112 8x100G DR Optical Module
- Application: 8x100G Ethernet / 1x800G Ethernet / 2x400G Ethernet / 2x200G Ethernet
- Connector: MPO-16 Connector
- Power dissipation: < 15W
- Case Temperature Range: 0°C To 70°C(commercial)
- Compliant: OSFP MSA Compliant
- 800G OSFP112 transceiver
- 800G OSFP112 module
- 800G Fiber Optic Module
Technical Parameters:
| Technical Parameter | Description |
|---|---|
| Product | OSFP112 8x100G DR Optical module |
| Data Rate | 850Gbps (Support Multi-rate Operation) |
| Application | 8x100G Ethernet / 1x800G Ethernet / 2x400G Ethernet / 2x200G Ethernet |
| Form Factor | OSFP112 |
| Distance | 500m Over SMF With KP4 FEC Supported At The Host Side |
| Transmitter | Driver And TIA Integrated In The DSP At Transmitter |
| DDM | I2C Interface With Integrated Digital Diagnostic Monitoring |
| Power Supply | Single 3.3V |
| Power Dissipation | < 15W |
| Case Temperature Range | 0°C To 70°C (commercial) |
| Compliant | OSFP MSA Compliant |
Applications:
The 800G OSFP12 DR Coherent Optical Module is also equipped with four wavelengths on the ITU G.694.2 CWDM grid, which are near 1300nm. The MPO-16 Connector is used for connectivity with other devices. This ensures that the optical module is compatible with a wide range of devices, making it easy to integrate into existing networks.
The 800G Coherent Optical Module is a versatile device that can be used in a variety of applications, including:
- Data center interconnects
- High-speed networking
- Cloud computing
- Enterprise networking
- Telecommunications
The 800G Coherent Optical Module is ideal for use with 8x100G OSFP112 DR, 8x100G DR Optical Module, and other high-speed networking devices. It supports multi-rate operation, making it easy to use in a wide range of scenarios. It is also compatible with a wide range of industry-standard protocols, ensuring that it can be used in a variety of networking environments.
In summary, the 800G Coherent Optical Module is a high-performance optical module that is designed to support high-speed data transmission in a wide range of applications. Its DDM, power supply, wavelength, and data rate features make it a versatile and reliable choice for any high-speed networking environment.
