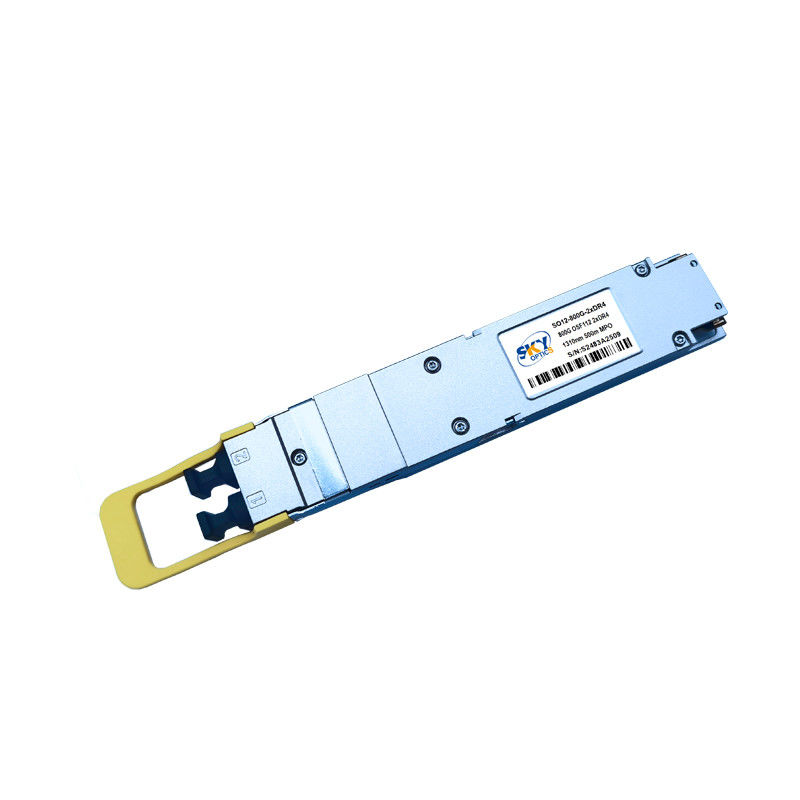

OSFP112 2xVR4 800G Optical Module Distance 30m OM3 / 50m OM4 15W Power Dissipation
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Power Dissipation: | < 15W | DDM: | I2C Interface With Integrated Digital Diagnostic Monitoring |
|---|---|---|---|
| Data Rate: | 850Gbps | Wavelength: | 850nm |
| Connector: | Dual MPO-12 Connector APC | Distance: | 30m OM3 / 50m OM4 |
| Compliant: | OSFP MSA Compliant | Form Factor: | OSFP112 |
| Highlight: | osfp112 2xvr4,2xvr4 800g optical module,osfp112 800g optical module |
||
Product Description
OSFP112 2xVR4 800G Optical Module Distance up to 30m OM3 / 50m OM4 15W Power Dissipation Cutting-Edge Networking Technology
Product Description:
The 800G OSFP112 2xVR4 Optical Module features a Receiver with PIN And TIA Array, which provides optimal sensitivity and noise performance. The Electrical Interface of the module is 8x53.125GBd (PAM4), which supports high-speed data transmission up to 800Gbps. This allows for fast and reliable data transfer over long distances.
The Transmitter of the 800G Optical Module is equipped with VCSEL technology, which offers high efficiency, low power consumption, and a long lifespan. The Power Supply for the module is a single 3.3V, which provides a stable and efficient power source for the module.
The Form Factor of the 800G Optical Module is OSFP112, which is a compact and standardized form factor designed for high-density applications. This makes it easy to integrate the module into existing network infrastructure.
Overall, the 800G Optical Module is a reliable and versatile solution for high-speed data transmission. With its advanced features and superior performance, it is an ideal choice for a range of applications, including data centers, high-performance computing, and telecommunications.
Features:
- Product Name: 800G Optical Module
- Form Factor: OSFP112
- Power Supply: Single 3.3V
- Case Temperature Range: 15°C To 70°C
- Power Dissipation: < 15W
- DDM: I2C Interface With Integrated Digital Diagnostic Monitoring
This module is an OSFP 800G 2xVR4 transceiver and can also be referred to as an 800G OSFP module or an 800G OSFP112 module.
Technical Parameters:
| Connector | Dual MPO-12 Connector APC |
| Electrical Interface | 8x53.125GBd (PAM4) |
| Distance | 30m OM3 / 50m OM4 |
| Compliant | OSFP MSA Compliant |
| Receiver | PIN And TIA Array |
| Transmitter | VCSEL |
| Application | 2x400GbE / 8x100GbE |
| Power Supply | Single 3.3V |
| Form Factor | OSFP112 |
| DDM | I2C Interface With Integrated Digital Diagnostic Monitoring |
Applications:
One of the key features of the 800G OSFP112 2xVR4 Optical Module is its electrical interface, which is 8x53.125GBd (PAM4). This makes it ideal for high-speed data transmission applications, particularly those that require a high level of bandwidth. Additionally, the module is compliant with the OSFP MSA standard, ensuring compatibility with a wide range of devices.
The 800G OSFP112 2xVR4 Optical Module is also available in the OSFP112 form factor, which is widely used in many different applications. This makes it easy to integrate into existing systems, and provides a high level of flexibility in terms of deployment options.
The receiver of the module is a PIN and TIA array, which provides excellent sensitivity and signal-to-noise ratio. This makes it ideal for applications that require high levels of accuracy and reliability.
The module also features a single 3.3V power supply, which is both efficient and reliable. This ensures that the module is able to operate at peak performance, even in demanding environments.
The 800G OSFP112 2xVR4 Optical Module is ideal for a wide range of applications, including data centers, telecommunications, and high-performance computing. It is particularly well-suited for use in 800GBASE-VR4 applications, as well as 2×400GbE or 8×100GbE OSFP with dual MPO-12 interfaces.
The module is available in two different configurations: flat top and finned top. The flat top configuration is ideal for applications where space is at a premium, while the finned top configuration provides improved heat dissipation for applications where thermal management is a concern.
Overall, the 800G OSFP112 2xVR4 Optical Module is a high-performance, versatile product that is ideal for a wide range of applications. Whether you need a reliable and efficient solution for your data center or telecommunications network, or you require high-speed data transfer capabilities for your high-performance computing applications, the 800G Optical Module is the perfect choice.
