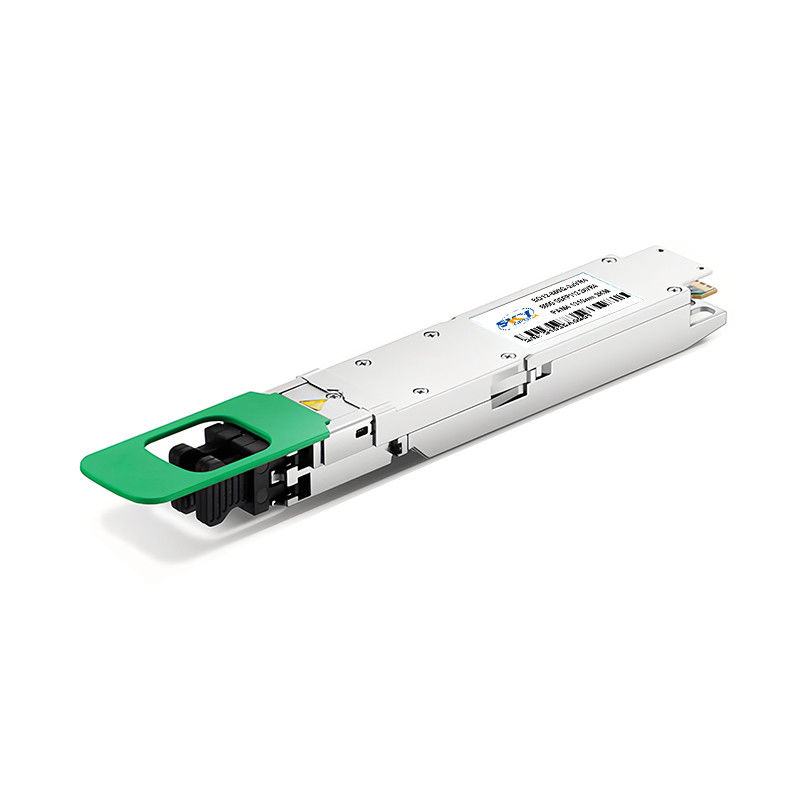

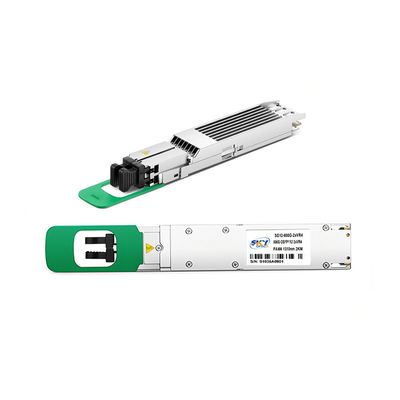

OSFP112 Form Factor 800G 2xFR4 Optical Transceivers With Receiver PIN And TIA Array
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Case Temperature Range: | 0°C To 70°C(commercial) | Form Factor: | OSFP112 |
|---|---|---|---|
| Data Rate: | 850Gbps | Power Supply: | Single 3.3V |
| Distance: | 2km(over SMF With KP4 FEC Supported At The Host Side) | Wavelength: | CWDM ( 4 Wavelengths On The ITU G.694.2 CWDM Grid Near 1300nm) |
| Compliant: | OSFP MSA Compliant | Connector: | Dual Duplex LC |
| Highlight: | 2xfr4 optical transceivers,osfp112 optical transceivers,800g osfp112 |
||
Product Description
Product Description:
With a dual duplex LC connector, the 800G OSFP112 2xFR4 Optical Module can support 2×400GbE or 8×100GbE OSFP configurations, making it a versatile option for a variety of network setups. The transceiver supports an electrical interface of 8x53.125GBd (PAM4), delivering high-speed data transfer rates with ease.
The 800G OSFP112 2xFR4 Optical Module is designed with a range of features that ensure optimal performance and ease of use. The receiver features a PIN and TIA array, providing reliable and accurate data reception. The transceiver also includes integrated digital diagnostic monitoring (DDM) via an I2C interface, allowing for real-time monitoring and management of key performance metrics.
The 800G OSFP112 2xFR4 Optical Module is designed to operate with a single 3.3V power supply, making it easy to integrate into your existing network infrastructure. Additionally, the transceiver is available in a range of form factors, including flat top, finned top, and riding HS, allowing you to choose the best option for your specific needs.
Whether you're looking to upgrade your existing network or build a new high-speed computing infrastructure from scratch, the 800G Optical Module is the perfect choice. With lightning-fast speeds, reliable performance, and a range of advanced features, this transceiver delivers the performance and versatility you need to take your network to the next level.
Features:
- Product Name: 800G OSFP112 2xFR4 Optical Module
- Connector: Dual Duplex LC
- Receiver: PIN And TIA Array
- Electrical Interface: 8x53.125GBd (PAM4)
- Data Rate: 850Gbps
- Wavelength: CWDM (4 Wavelengths On The ITU G.694.2 CWDM Grid Near 1300nm)
- Compatible with 2x400G FR4 module
- Also available as 800G OSFP transceiver
- Designed for use as an 800G Data Center Transceiver
Technical Parameters:
| Parameter | Value |
|---|---|
| Application | 1x800G Ethernet / 2x400G Ethernet / 2x200G Ethernet |
| DDM | I2C Interface With Integrated Digital Diagnostic Monitoring |
| Wavelength | CWDM (4 Wavelengths On The ITU G.694.2 CWDM Grid Near 1300nm) |
| Power Dissipation | < 16W |
| Distance | 2km (over SMF With KP4 FEC Supported At The Host Side) |
| Power Supply | Single 3.3V |
| Connector | Dual Duplex LC |
| Compliant | OSFP MSA Compliant |
| Form Factor | OSFP112 |
| Case Temperature Range | 0°C To 70°C (commercial) |
Applications:
The 800G OSFP112 2xFR4 Optical Module comes in the OSFP112 form factor, which is a compact and highly efficient design that makes it easy to install and use. This makes it an ideal choice for high-density data center environments where space is at a premium.
The module has a low power dissipation of less than 16W, which makes it energy-efficient and reduces the cost of running the network. It is also designed to support distances of up to 2km over single-mode fiber with KP4 FEC supported at the host side, providing reliable connectivity over long distances.
The 800G OSFP112 2xFR4 Optic Transceiver features dual duplex LC connectors that ensure reliable and secure connectivity. The connectors are easy to install and remove, making it easy to replace the module if needed.
The 800G OSFP112 2xFR4 Optical Module is an ideal choice for a variety of application occasions and scenarios. It can be used in data center environments to deliver high-speed connectivity for servers, storage systems, and network switches. It can also be used in enterprise network environments to provide fast and reliable connectivity for workstations and other network devices.
Overall, the 800G OSFP112 2xFR4 Optic Transceiver is a reliable and efficient solution for high-speed data transmission in a variety of network environments. Its compact design, high-speed data transmission rates, and low power dissipation make it an ideal choice for any network that requires fast and reliable connectivity.
