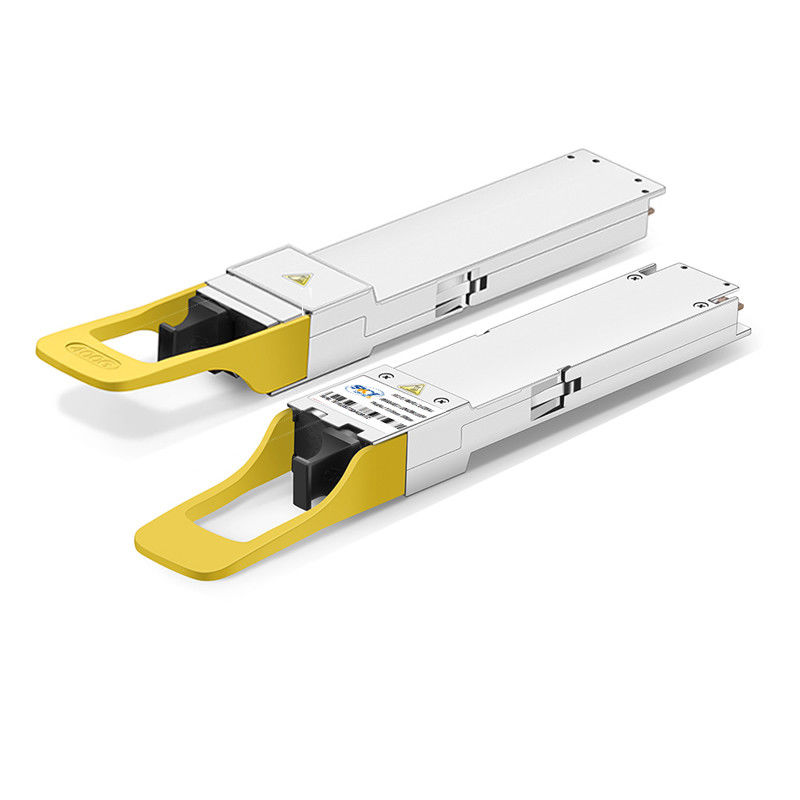

OSFP112 800G MPO-16 Connector 8x100G DR Optical Module For Data Transmission
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Power Supply: | Single 3.3V | Transmitter: | Driver And TIA Integrated In The DSP At Transmitter |
|---|---|---|---|
| DDM: | I2C Interface With Integrated Digital Diagnostic Monitoring | Case Temperature Range: | 0°C To 70°C(commercial) |
| Wavelength: | CWDM ( 4 Wavelengths On The ITU G.694.2 CWDM Grid Near 1300nm) | Compliant: | OSFP MSA Compliant |
| Data Rate: | 850Gbps (Support Multi-rate Operation) | Application: | 8x100G Ethernet / 1x800G Ethernet / 2x400G Ethernet / 2x200G Ethernet |
| Highlight: | osfp112 800g,8x100g dr optical module,osfp112 dr optical module |
||
Product Description
OSFP112 800G MPO-16 Connector 8x100G DR Optical Module for Fast and Stable Data Transmission
Product Description:
The 800G OSFP112 DR Optic Transceiver features an I2C interface with integrated digital diagnostic monitoring (DDM), which provides real-time monitoring of the module's performance. This feature enables users to monitor key parameters such as temperature, voltage, and optical power, ensuring that the module operates within its specified range.
The 800G Optic Transceiver is suitable for a wide range of applications, including 8x100G DR Optical Module, 800G Ethernet Optical Transceiver, 2x400G Ethernet, and 2x200G Ethernet. Its high-speed connectivity makes it an ideal choice for data centers, cloud computing, and other high-performance computing applications.
The 800G Optic Transceiver is designed with OSFP112 form factor, which ensures compatibility with a wide range of networking equipment. It has a single 3.3V power supply, which makes it easy to integrate with other network components.
Features:
- Product Name: 800G OSFP112 DR Optical Module
- Power Dissipation: < 15W
- Connector: MPO-16 Connector
- Application: 8x100G Ethernet / 1x800G Ethernet / 2x400G Ethernet / 2x200G Ethernet
- Transmitter: Driver And TIA Integrated In The DSP At Transmitter
- Form Factor: OSFP112
The 800G Optical Module is an 800G Fiber Optic Module with an OSFP form factor. It supports various Ethernet applications including 800 Gigabit Ethernet .
Technical Parameters:
| Power Supply | Single 3.3V |
| Form Factor | OSFP112 |
| Transmitter | Driver And TIA Integrated In The DSP At Transmitter |
| Application | 8x100G Ethernet / 1x800G Ethernet / 2x400G Ethernet / 2x200G Ethernet |
| Case Temperature Range | 0°C To 70°C(commercial) |
| Distance | 500m Over SMF With KP4 FEC Supported At The Host Side |
| DDM | I2C Interface With Integrated Digital Diagnostic Monitoring |
| Data Rate | 850Gbps (Support Multi-rate Operation) |
| Power Dissipation | < 15W |
| Wavelength | CWDM ( 4 Wavelengths On The ITU G.694.2 CWDM Grid Near 1300nm) |
Applications:
The transmitter of the 800G OSFP112 DR Optical Module is driver and TIA integrated in the DSP at the transmitter, which helps to ensure reliable and accurate data transmission. This product is also equipped with an MPO-16 connector, which makes it easy to connect to a range of different devices and systems.
The 800G OSFP112 DR Optical Module product is ideal for a range of different application scenarios, including 8x100G Ethernet, 1x800G Ethernet, 2x400G Ethernet, and 2x200G Ethernet. This means that it can be used in a range of different settings, from data centers to enterprise networks and more.
The OSFP112 DR form factor of this product also makes it easy to integrate into existing systems and networks. This form factor is an industry-standard size and shape, which means that it is compatible with a range of different devices and systems.
Overall, the 800G OSFP112 DR Optical Module product is a versatile and high-performance optical module that is ideal for a range of different applications. Whether you need to transmit large amounts of data quickly and reliably, or you need to connect multiple devices and systems together, this product is an excellent choice. With features like 800GBASE-DR, 8x100G OSFP112 DR, and OSFP 8x100G DR transceiver, this product is sure to meet your needs and exceed your expectations.
