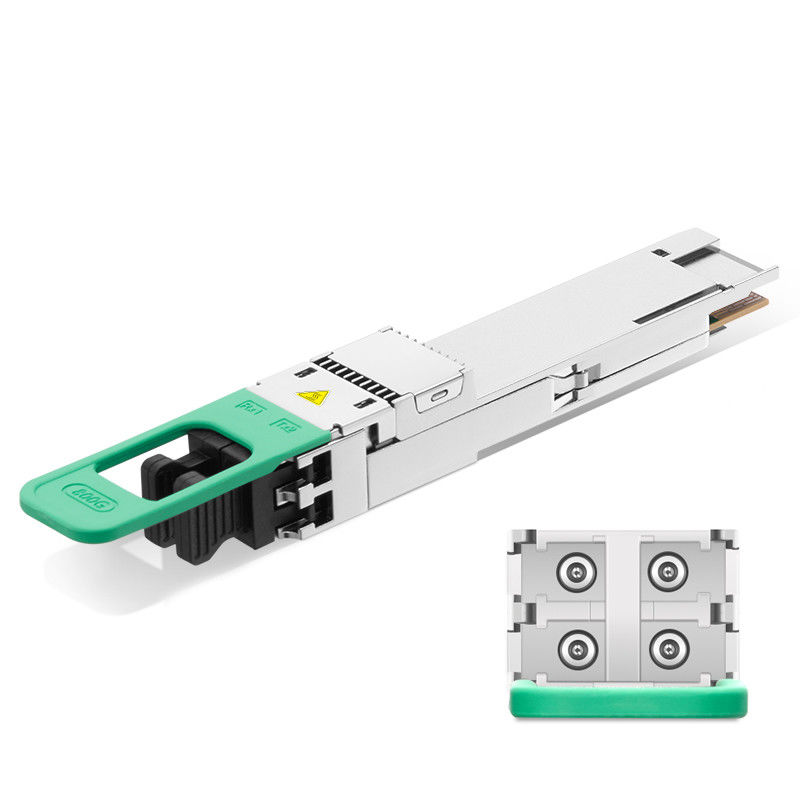

QSFP-DD800 2xFR4 800G Optic Module Dual Duplex LC Connector 8x106.25Gbps PAM4
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Power Supply: | Single 3.3V | Connector: | Dual Duplex LC Connector |
|---|---|---|---|
| Electrical Interface: | 8x106.25Gbps (PAM4) | Compliant: | QSFP-DD MSA Compliant |
| Distance: | Up To 2km Over SMF With KP4 FEC Supported At The Host Side | Transmitter: | The Transmitter Path Of The Module Incorporates A Bi-directional PAM4 Re-timer ASIC Integrated With An 8-channels Modulator Driver, 8 Externally Modulated Lasers And Two Optical Multiplexers. |
| Form Factor: | QSFP-DD | Receiver: | Two Optical De-multiplexers Are Coupled To 8 Photodiodes And Two 4-channel TIA Arrays, Along With The PAM4 Re-timer |
| Highlight: | qsfp-dd800 2xfr4,2xfr4 800g optic module,800g qsfp-dd800 |
||
Product Description
QSFP-DD800 800G 2xFR4 Optical Module Dual Duplex LC Connector 8x106.25Gbps PAM4 Electrical Interface QSFP-DD Form Factor
Product Description:
The transmitter path of the module incorporates a bi-directional PAM4 re-timer ASIC integrated with an 8-channels modulator driver, 8 externally modulated lasers, and two optical multiplexers. These features ensure reliable data transmission at high speeds. The module can transmit data up to 2km over single-mode fiber with KP4 FEC supported at the host side.
The module's case temperature range is 0°C to 70°C, making it suitable for commercial use. Its compliance with QSFP-DD MSA standards ensures that it can be used with a wide range of compatible devices.
Features:
- Product Name: QSFP-DD800 2xFR4 module
- Connector: Dual Duplex LC Connector
- Electrical interface: 8x106.25Gbps (PAM4)
- Application: 1x800G Ethernet / 2x400G Ethernet / 2x200G Ethernet
- Form Factor: QSFP-DD
- Compliant: QSFP-DD MSA Compliant
- 800G Data Center Transceiver
- QSFP-DD Optic Transceiver
Technical Parameters:
| Product Name | 800G Multi-rate Optical Module |
| Connector | Dual Duplex LC Connector |
| Form Factor | QSFP-DD Optic Transceiver |
| Transmitter | The Transmitter Path Of The Module Incorporates A Bi-directional PAM4 Re-timer ASIC Integrated With An 8-channels Modulator Driver, 8 Externally Modulated Lasers And Two Optical Multiplexers. |
| Receiver | Two Optical De-multiplexers Are Coupled To 8 Photodiodes And Two 4-channel TIA Arrays, Along With The PAM4 Re-timer |
| Data Rate | 850Gbps (Support Multi-rate Operation) |
| Power Supply | Single 3.3V |
| Application | 1x800G Ethernet / 2x400G Ethernet / 2x200G Ethernet |
| Case Temperature Range | 0°C To 70°C(commercial) |
| Power Dissipation | < 16W |
| Distance | Up To 2km Over SMF With KP4 FEC Supported At The Host Side |
Applications:
The transmitter path of the module is top-notch, incorporating a bi-directional PAM4 re-timer ASIC integrated with an 8-channels modulator driver, 8 externally modulated lasers, and two optical multiplexers. This ensures that data transmission is fast, reliable, and seamless.
With a single 3.3V power supply, the 800G QSFP-DD800 2xFR4 transceiver can transmit data up to 2km over SMF with KP4 FEC supported at the host side. This makes it ideal for long-range data transmission applications.
The 800G 800 2xFR4 Optical Module is perfect for a wide range of product application occasions and scenarios such as high-performance computing, data center interconnects, and cloud networking. It can also be used in high-speed data transfer applications, such as video streaming, online gaming, and large data file transfers.
In summary, the 800G QSFP-DD800 2xFR4 transceiver is an impressive optical module that delivers fast and reliable data transmission at an impressive data rate of 850Gbps. With its powerful transmitter path, it can transmit data up to 2km over SMF with KP4 FEC supported at the host side. This makes it ideal for a wide range of product application occasions and scenarios, including high-performance computing, data center interconnects, cloud networking, video streaming, online gaming and more.
