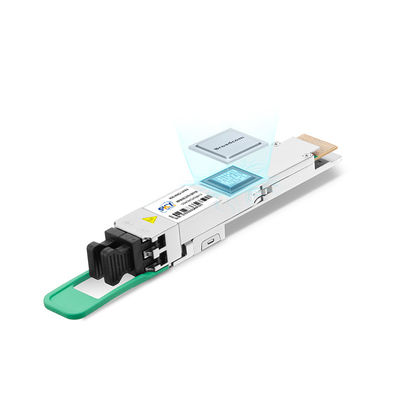

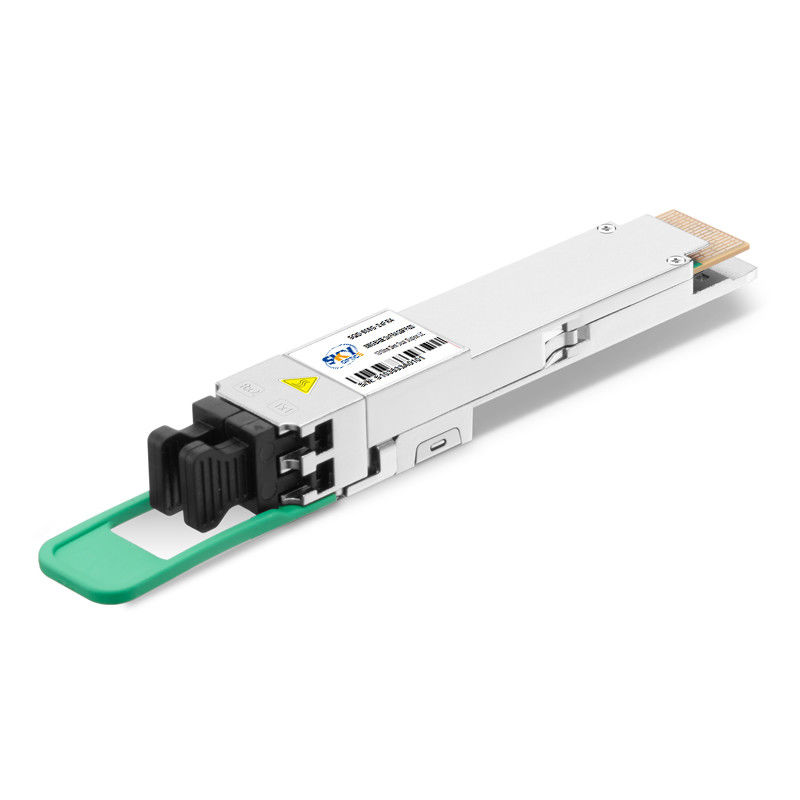

800G QSFP-DD 2xFR4 Optic Transceiver Dual Duplex LC Connector PAM4 For Data Transfer
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Application: | 1x800G Ethernet / 2x400G Ethernet / 2x200G Ethernet | Power Supply: | Single 3.3V |
|---|---|---|---|
| Form Factor: | QSFP-DD | Distance: | Up To 2km Over SMF With KP4 FEC Supported At The Host Side |
| Transmitter: | The Transmitter Path Of The Module Incorporates A Bi-directional PAM4 Re-timer ASIC Integrated With An 8-channels Modulator Driver, 8 Externally Modulated Lasers And Two Optical Multiplexers. | Power Dissipation: | < 16W |
| Electrical Interface: | 8x106.25Gbps (PAM4) | Case Temperature Range: | 0°C To 70°C(commercial) |
| Highlight: | 800g qsfp-dd 2xfr4,2xfr4 optic transceiver,800g optic transceiver |
||
Product Description
800G QSFP-DD 2xFR4 Optic Transceiver Dual Duplex LC Connector and PAM4 Re-timer Cutting-Edge Solution for Fast Data Transfer
Product Description:
The 800G QSFP-DD800 2xFR4 Multi-rate Optical Module comes in a QSFP-DD Form Factor, which makes it easy to install and use. This form factor provides a compact and efficient design that allows for high-density applications.
With a distance of up to 2km over SMF, the 800G Multi-rate Optical Module is perfect for long-distance data transmission. It also supports KP4 FEC at the host side, which improves the transmission quality and ensures reliable data transfer.
The 800G QSFP-DD800 2xFR4 Multi-rate Optical Module is a single 3.3V power supply, which makes it easy to install and use. It requires minimal power consumption, which helps to reduce energy costs. This feature also makes it environmentally friendly, as it has a low carbon footprint.
Overall, the 800G QSFP-DD800 2xFR4 Multi-rate Optical Module is a reliable and efficient 800G Fiber Optic Module that provides high-speed data transmission for a variety of applications. It is also compatible with the 2x400G FR4 QSFP-DD Optical Transceiver, which makes it easy to upgrade your existing network infrastructure.
Features:
- Product Name: 800G QSFP-DD800 2xFR4 Optical Module
- Distance: Up To 2km Over SMF With KP4 FEC Supported At The Host Side
- Compliant: QSFP-DD MSA Compliant
- Power Supply: Single 3.3V
- Data Rate: 850Gbps (Support Multi-rate Operation)
- Application: 1x800G Ethernet / 2x400G Ethernet / 2x200G Ethernet
Keywords: 800G Fiber Optic Module, QSFP-DD800 transceiver, 8x100G DR Optical Module
Technical Parameters:
| Product Name | QSFP-DD800 FR4 transceiver, 800G Fiber Optic Module, 800G Coherent Optical Module |
| Power Dissipation | <16W |
| Compliant | QSFP-DD MSA Compliant |
| Receiver | Two Optical De-multiplexers Are Coupled To 8 Photodiodes And Two 4-channel TIA Arrays, Along With The PAM4 Re-timer |
| Case Temperature Range | 0°C To 70°C(commercial) |
| Power Supply | Single 3.3V |
| Transmitter | The Transmitter Path Of The Module Incorporates A Bi-directional PAM4 Re-timer ASIC Integrated With An 8-channels Modulator Driver, 8 Externally Modulated Lasers And Two Optical Multiplexers |
| Data Rate | 850Gbps (Support Multi-rate Operation) |
| Connector | Dual Duplex LC Connector |
| Electrical Interface | 8x106.25Gbps (PAM4) |
| Application | 1x800G Ethernet / 2x400G Ethernet / 2x200G Ethernet |
Applications:
The QSFP-DD800 2xFR4 module is capable of supporting a data rate of up to 850Gbps, making it ideal for high-bandwidth applications. This product can operate at a distance of up to 2km over SMF with KP4 FEC supported at the host side, making it perfect for long-distance connectivity requirements.
This product can operate within a case temperature range of 0°C to 70°C (commercial), making it suitable for use in a wide range of environments. The QSFP-DD800 2xFR4 module supports multi-rate operation, making it a versatile solution for various data center scenarios.
The QSFP-DD800 2xFR4 module is designed with a single 3.3V power supply, making installation and integration straightforward. This product is suitable for a wide range of applications, including data center interconnects, high-performance computing, and cloud computing.
