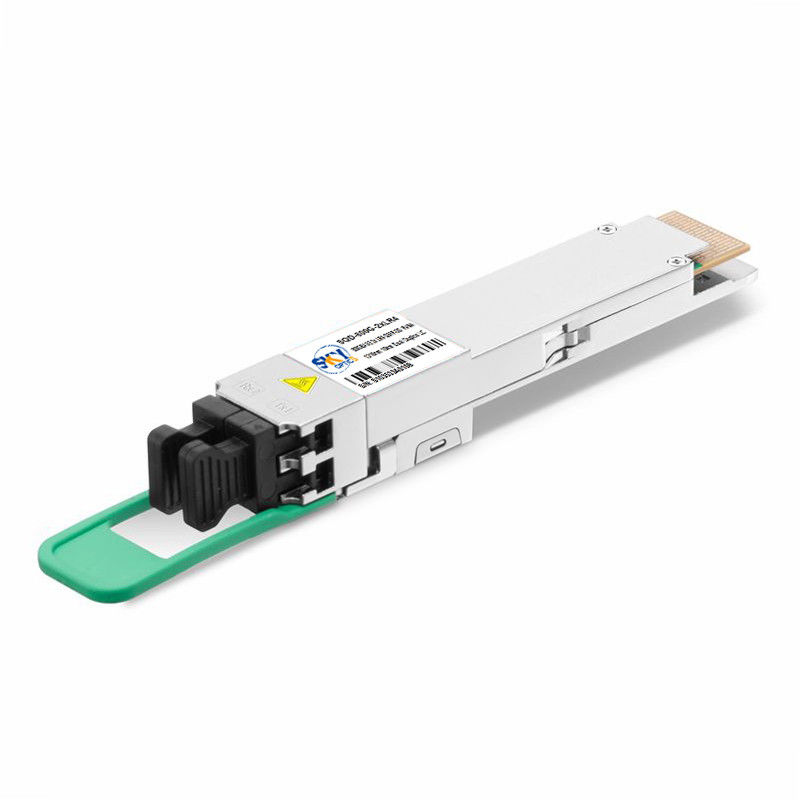

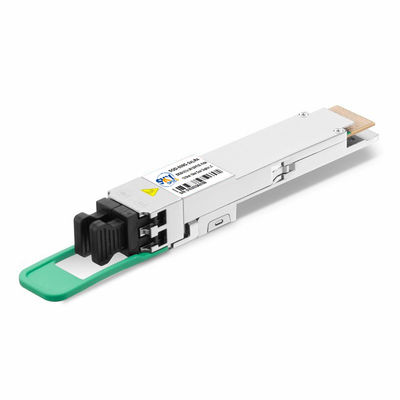

Single 3.3V QSFP-DD800 2xLR4 800G Optical Module QSFP-DD MSA Compliant
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Case Temperature Range: | 0°C To 70°C(commercial) | Application: | 1x800G Ethernet / 2x400G Ethernet / 2x200G Ethernet |
|---|---|---|---|
| Data Rate: | 850Gbps | Form Factor: | QSFP-DD |
| Compliant: | QSFP-DD MSA Compliant | Distance: | Up To 10km Over SMF With KP4 FEC Supported At The Host Side |
| Connector: | Dual Duplex LC Connector | Power Dissipation: | < 16W |
| Highlight: | qsfp-dd800 2xlr4,2xlr4 800g optical module,800g optical module qsfp-dd |
||
Product Description
Power Supply Single 3.3V QSFP-DD800 2xLR4 Optical Module Compliant QSFP-DD MSA Compliant
Product Description:
The 800G QSFP-DD800 2xLR4 Optical Module is an industry-leading product that provides high-speed connectivity for networking applications. This product is designed to support 1x800G Ethernet, 2x400G Ethernet, and 2x200G Ethernet. It is ideal for use in data centers and other high-performance computing environments.
The 800G QSFP-DD800 2xLR4 Optical Module has a data rate of 850Gbps, making it one of the fastest optical transceivers available on the market. It uses an electrical interface of 8x106.25Gbps (PAM4) to ensure reliable and efficient data transmission. With its advanced design, this product can deliver exceptional performance for a wide range of applications.
The 800G QSFP-DD800 2xLR4 Optical Module is capable of supporting distances of up to 10km over SMF with KP4 FEC supported at the host side. This makes it ideal for long-distance networking applications. Additionally, it features a receiver that includes a PIN and TIA array on the receiver side, ensuring accurate and reliable data reception.
The 800G Ethernet Optical Transceiver is a high-quality product that is designed to meet the needs of demanding networking environments. With its advanced features and high-speed capabilities, this product is ideal for use in a wide range of applications. Whether you need to connect servers, switches, or other networking equipment, this product can provide the reliable and efficient connectivity you need.
Overall, the 800G QSFP-DD800 2xLR4 transceiver is a top-of-the-line product that is designed to provide exceptional performance in even the most demanding networking environments. With its advanced features and high-speed capabilities, this product is a must-have for anyone looking to achieve fast and efficient connectivity in their data center or other computing environment.
Features:
- Product Name: 800G QSFP-DD800 2xLR4 Ethernet Optical Transceiver
- Compliant: QSFP-DD MSA Compliant
- Power Supply: Single 3.3V
- Data Rate: 850Gbps
- Electrical interface: 8x106.25Gbps (PAM4)
- Receiver: PIN And TIA Array On The Receiver Side
- Compatible with QSFP-DD 2x400G LR4
- 800G Optical Transmitter and Receiver
Technical Parameters:
| Connector | Dual Duplex LC Connector |
| Data Rate | 850Gbps |
| Form Factor | QSFP-DD |
| Receiver | PIN And TIA Array On The Receiver Side |
| Electrical interface | 8x106.25Gbps (PAM4) |
| Distance | Up To 10km Over SMF With KP4 FEC Supported At The Host Side |
| Compliant | QSFP-DD MSA Compliant |
| Application | 1x800G Ethernet / 2x400G Ethernet / 2x200G Ethernet |
| Case Temperature Range | 0°C To 70°C(commercial) |
| Transmitter | The Transmitter Path Of The Module Incorporates A Bi-directional PAM4 Re-timer ASIC Integrated With An 8-channels Modulator Driver, 8 Externally Modulated Lasers And Two Optical Multiplexers. |
Applications:
One of the potential application scenarios for the 800G Optical Module is in high-speed data centers that require ultra-fast connectivity. The product's compatibility with 1x800G Ethernet and 2x400G Ethernet makes it suitable for such environments. For instance, in a data center that relies on high-speed computing and data processing, the 800G Optical Module can help to deliver data at ultra-fast speeds, ensuring that the network operates optimally.
Another application scenario for the 800G QSFP-DD800 2xLR4 Optical Module is in large enterprises that require high-speed connectivity between different departments or branches. The product's compatibility with 2x200G Ethernet can help to facilitate such connectivity. For example, in an enterprise that has multiple branches across a geographic region, the 800G QSFP-DD800 2xLR4 Optical Module can be used to create a high-speed network that connects all the branches, enabling efficient communication and data transfer.
The dual duplex LC connector of the 800G QSFP-DD800 2xLR4 Optical Module makes it easy to install and connect to different network devices. Additionally, the module's electrical interface of 8x106.25Gbps (PAM4) ensures that data is transmitted at high speeds.
Finally, it is worth noting that the QSFP-DD form factor of the 800G QSFP-DD800 2xLR4 Optical Module is a widely accepted standard for optical transceivers in the industry. This means that the product is compatible with various network devices that support the QSFP-DD form factor.
In summary, the 800G QSFP-DD800 2xLR4 Optical Module is a versatile product that is ideal for different network scenarios. Its compatibility with 1x800G Ethernet, 2x400G Ethernet, and 2x200G Ethernet applications, dual duplex LC connector, electrical interface of 8x106.25Gbps (PAM4), and QSFP-DD form factor make it a reliable option for high-speed connectivity needs.
