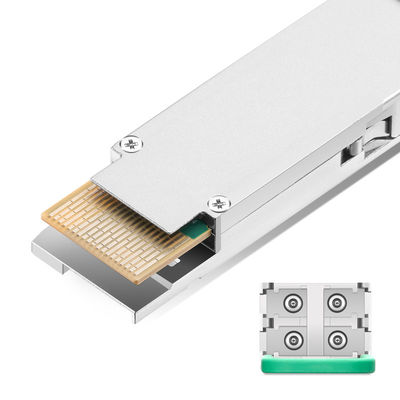

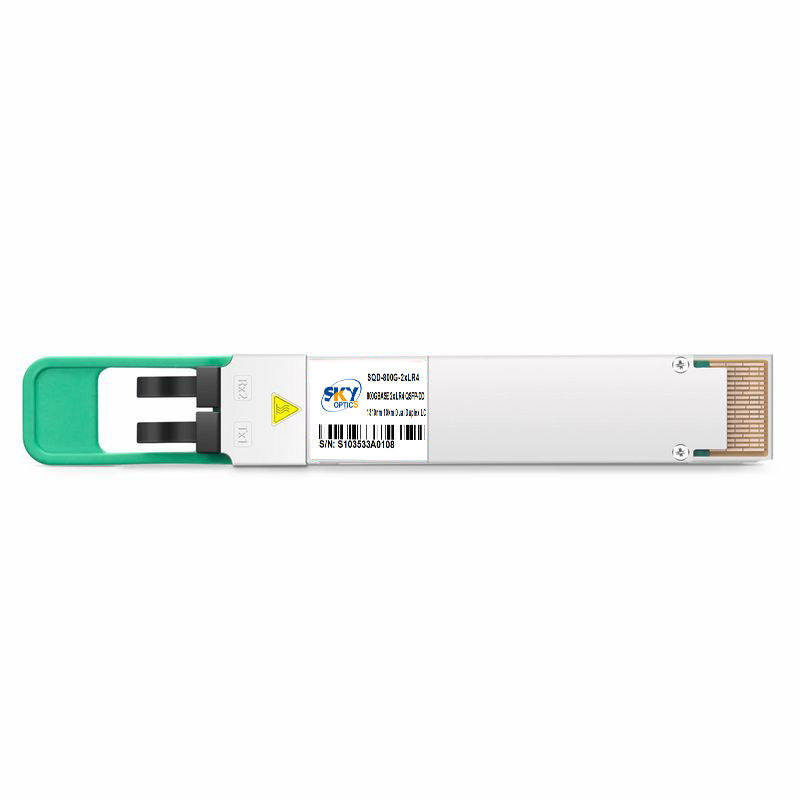

1x800G Ethernet QSFP-DD800 2xLR4 800G Optical Module With PIN And TIA Array
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Receiver: | PIN And TIA Array On The Receiver Side | Transmitter: | The Transmitter Path Of The Module Incorporates A Bi-directional PAM4 Re-timer ASIC Integrated With An 8-channels Modulator Driver, 8 Externally Modulated Lasers And Two Optical Multiplexers. |
|---|---|---|---|
| Form Factor: | QSFP-DD | Power Dissipation: | < 16W |
| Power Supply: | Single 3.3V | Connector: | Dual Duplex LC Connector |
| Compliant: | QSFP-DD MSA Compliant | Electrical Interface: | 8x106.25Gbps (PAM4) |
| Highlight: | qsfp-dd800 2xlr4,2xlr4 800g optical module,800g qsfp-dd800 |
||
Product Description
1x800G Ethernet 800G QSFP-DD800 2xLR4 Optical Module with PIN And TIA Array On The Receiver Side
Product Description:
With a case temperature range of 0°C to 70°C (commercial), this 800G Data Center Transceiver is built to withstand the demands of even the most challenging environments. The receiver features a PIN and TIA array on the receiver side, ensuring high sensitivity and low noise levels.
Compliant with QSFP-DD MSA standards, this 800G QSFP-DD transceiver offers exceptional compatibility with a variety of networking equipment. It provides transmission distances of up to 10km over SMF, with KP4 FEC supported at the host side, ensuring reliable data transmission over long distances.
This 800G QSFP-DD800 2xLR4 Data Center Transceiver is designed with power efficiency in mind, with a power dissipation of less than 16W. This ensures that the module operates efficiently while providing reliable performance, helping to reduce energy costs and minimize the carbon footprint of data centers.
Whether you're looking to upgrade your existing network or build a new one, the 800G QSFP-DD800 2xLR4 transceiver is the ideal choice for high-speed data transmission. With its exceptional reliability, compatibility, and power efficiency, the QSFP-DD800 2xLR4 module is the perfect solution for the demands of modern data centers.
Features:
- Product Name: 800G QSFP-DD800 2xLR4 Optical Module
- Distance: Up To 10km Over SMF With KP4 FEC Supported At The Host Side
- Power Supply: Single 3.3V
- Data Rate: 850Gbps
- Case Temperature Range: 0°C To 70°C (commercial)
- Power Dissipation: < 16W
- 800G QSFP-DD transceiver
- 800G Data Center Transceiver
- QSFP-DD 8x100G 2xLR4
Technical Parameters:
| Data Rate | 850Gbps |
| Case Temperature Range | 0°C To 70°C (commercial) |
| Power Dissipation | < 16W |
| Electrical Interface | 8x106.25Gbps (PAM4) |
| Form Factor | QSFP-DD |
| Transmitter | The Transmitter Path Of The Module Incorporates A Bi-directional PAM4 Re-timer ASIC Integrated With An 8-channels Modulator Driver, 8 Externally Modulated Lasers And Two Optical Multiplexers. |
| Power Supply | Single 3.3V |
| Compliant | QSFP-DD MSA Compliant |
| Application | 1x800G Ethernet / 2x400G Ethernet / 2x200G Ethernet |
| Distance | Up To 10km Over SMF With KP4 FEC Supported At The Host Side |
Applications:
The 800G QSFP-DD800 2xLR4 Optical Module is a high-speed optical transceiver module that supports a variety of applications. This module is designed to be used in data center and networking environments, where high-speed data transmission is required. Its form factor, QSFP-DD, makes it easy to install and integrate into a variety of systems.
The transmitter path of the module incorporates a bi-directional PAM4 re-timer ASIC integrated with an 8-channels modulator driver, 8 externally modulated lasers and two optical multiplexers. This design enables the module to support data rates of up to 850Gbps.
The 800G QSFP-DD800 2xLR4 Optical Module is ideal for use in scenarios where high-speed data transmission is required over long distances. It supports the 800GBASE-LR4 standard, making it ideal for use in data center interconnect (DCI) applications.
This module is also suitable for use in high-performance computing (HPC) and artificial intelligence (AI) applications, where large amounts of data need to be transmitted quickly. Its high-speed data transmission capabilities make it an ideal choice for these scenarios.
The 800G Optical Module is designed to operate in a case temperature range of 0°C to 70°C, making it suitable for use in a wide range of environments.
The module's receiver includes a PIN and TIA array, which ensures high sensitivity and low noise performance. This feature makes it ideal for use in scenarios where low-latency and high-quality data transmission is required.
The QSFP-DD800 2xLR4 module is a suitable choice for high-speed, long-distance data transmission scenarios. This module is ideal for use in data center and networking environments, where high-speed data transmission is required.
The 800G Coherent Optical Module is designed to provide high-speed data transmission capabilities over long distances. This module is a suitable choice for use in data center interconnect (DCI) applications, as well as in high-performance computing (HPC) and artificial intelligence (AI) scenarios.
