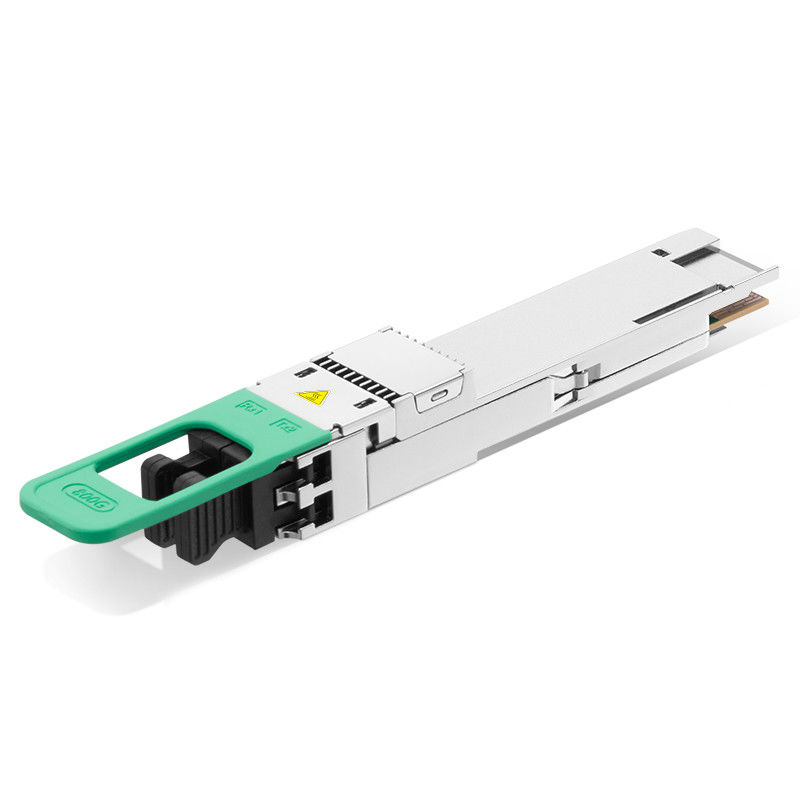

850Gbps QSFP-DD800 2xLR4 800G Optic Transceiver QSFP-DD Form Factor For Speed Connectivity
Product Details:
| Place of Origin: | China |
| Brand Name: | SkyOptics / OEM / ODM |
| Certification: | CE / RoHS / FCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | US$1~US$4999 |
| Packaging Details: | Plastic Tray/Plastic Bag/Customized |
| Delivery Time: | Same day delivery~one week |
| Payment Terms: | T/T / L/C / Paypal / Westerm Union |
| Supply Ability: | 100kpcs/month |
|
Detail Information |
|||
| Distance: | Up To 10km Over SMF With KP4 FEC Supported At The Host Side | Power Dissipation: | < 16W |
|---|---|---|---|
| Data Rate: | 850Gbps | Form Factor: | QSFP-DD |
| Receiver: | PIN And TIA Array On The Receiver Side | Compliant: | QSFP-DD MSA Compliant |
| Application: | 1x800G Ethernet / 2x400G Ethernet / 2x200G Ethernet | Case Temperature Range: | 0°C To 70°C(commercial) |
| Highlight: | 850gbps qsfp-dd800,qsfp-dd800 2xlr4,2xlr4 800g optic transceiver |
||
Product Description
Product Description:
The receiver side of the 800G Optical Module features a PIN and TIA array, enabling efficient and accurate signal reception. The module’s form factor is QSFP-DD, a compact and widely-used form factor for high-speed optical transceivers. The module is powered by a single 3.3V power supply, making it easy to integrate into existing networking infrastructure.
The 800G QSFP-DD800 2xLR4 Optical Module supports an electrical interface of 8x106.25Gbps (PAM4), enabling it to achieve high-speed data transmission over fiber optic cabling. This makes it an ideal choice for data center and networking applications that require reliable and high-performance connectivity, such as cloud computing, big data, and high-speed storage applications.
Whether you need an 800G Ethernet Optical Transceiver, an 800G Coherent Optical Module, or simply a high-speed optical transceiver for your data center or networking application, the 800G Optical Module delivers the performance, reliability, and flexibility you need to get the job done.
Features:
- Product Name: 800G QSFP-DD800 2xLR4 Ethernet Optical Transceiver
- Transmitter: The Transmitter Path Of The Module Incorporates A Bi-directional PAM4 Re-timer ASIC Integrated With An 8-channels Modulator Driver, 8 Externally Modulated Lasers And Two Optical Multiplexers.
- Case Temperature Range: 0°C To 70°C(commercial)
- Power Dissipation: < 16W
- Compliant: QSFP-DD MSA Compliant
- Power Supply: Single 3.3V
- QSFP-DD800 2xLR4
- QSFP-DD 2x400G LR4
Technical Parameters:
| Power Supply | Single 3.3V |
| Electrical Interface | 8x106.25Gbps (PAM4) |
| Data Rate | 850Gbps |
| Power Dissipation | < 16W |
| Form Factor | QSFP-DD |
| Application | 1x800G Ethernet / 2x400G Ethernet / 2x200G Ethernet |
| Case Temperature Range | 0°C To 70°C (commercial) |
| Receiver | PIN and TIA array on the receiver side |
| Transmitter | The transmitter path of the module incorporates a bi-directional PAM4 re-timer ASIC integrated with an 8-channels modulator driver, 8 externally modulated lasers and two optical multiplexers. |
| Connector | Dual Duplex LC Connector |
Applications:
The QSFP-DD800 2xLR4 Optical module has a form factor of QSFP-DD, which is a compact and highly efficient design that allows for easy integration into a variety of systems. The dual duplex LC connector ensures reliable connectivity and easy installation, making this product ideal for data centers and other high-performance networking applications.
The QSFP-DD800 2xLR4 Optical module is equipped with an electrical interface of 8x106.25Gbps (PAM4), which provides high-speed data transmission for a variety of applications. This product is ideal for use in high-performance computing systems, data centers, and other applications where fast and reliable data transmission is essential.
With its QSFP-DD 8x100G 2xLR4 configuration, this optical module is designed to provide high-performance connectivity over long distances. It is ideal for applications such as high-speed data transmission, video streaming, and other high-bandwidth applications.
Overall, the QSFP-DD800 2xLR4 Optical module is a high-performance and reliable optical transceiver that is designed for use in a variety of applications. Whether you are looking to improve data transmission speeds, increase network efficiency, or simply improve overall system performance, this product is an excellent choice.
